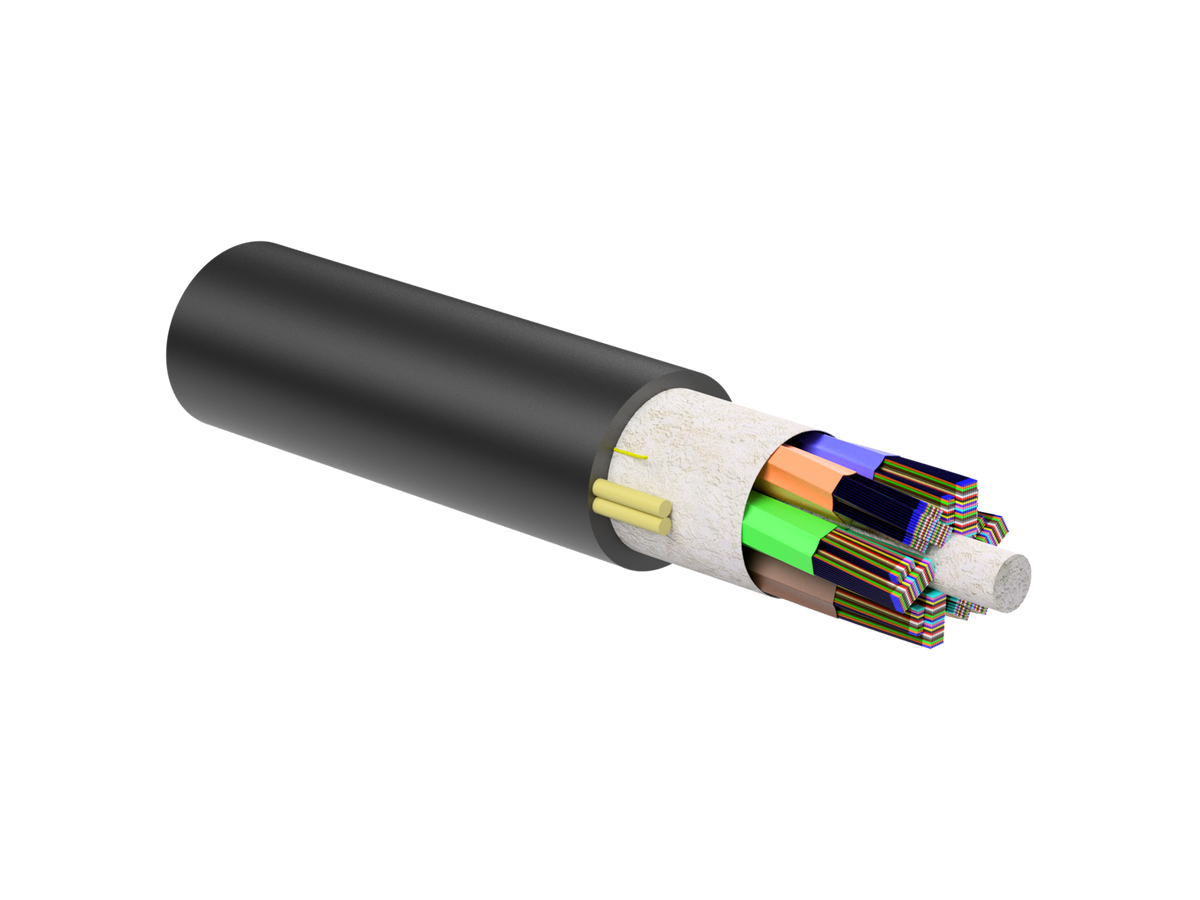

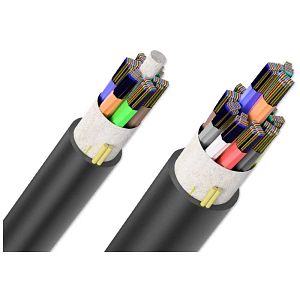

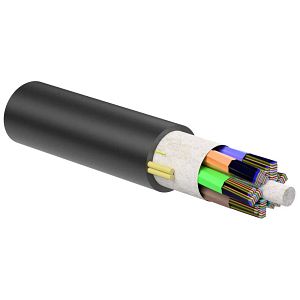

Corning H28ZQ4-14101S53 | RocketRibbon Extreme Density Cable
Regular price
$33.61
Unit price
Brand: Corning
|
SKU:
963631
Regular price
$33.61
Unit price
Description
Description
Corning H28ZQ4-14101S53 | RocketRibbon Extreme Density Cable 1728F, Dielectric, Bend-improved Single-mode (OS2)
Application Duct
Environmental Conditions Temperature Range, Installation: -20 °C - 70 °C (-4 °F - 158 °F) Temperature Range, Operation: -40 °C - 70 °C (-40 °F - 158 °F) Temperature Range, Storage: -40 °C - 70 °C (-40 °F - 158 °F)
Standards RoHS: Free of hazardous substances according to RoHS 2011/65/EU Approvals and Listings: Meets Telcordia GR-20 requirements Common Installations: Duct and indoor when installed according to National Electrical Code (NEC) Article 770 Design and Test Criteria: ANSI/ICEA S-87-640, Telcordia GR-20
Corning - H28ZQ4-14101S53 - Features
- Unique subunit design
- Flexible, finger-peelable subunits provide protection of each 288-fiber ribbon stack, eliminating the need for furcation when routing directly into hardware and enabling individual access to each ribbon for efficient management in splice trays.
- Complete gel-free design
- No messy filling or flooding compounds mean elimination of time, labor and risk associated with cleaning ribbons, enabling cleaner work areas, simplified splice preparation and less installer error.
- Unique subunit design - Flexible, finger-peelable subunits provide protection of each 288-fiber ribbon stack, eliminating the need for furcation when routing directly into hardware and enabling individual access to each ribbon for efficient management in splice trays.
- Complete gel-free design - No messy filling or flooding compounds mean elimination of time, labor and risk associated with cleaning ribbons, enabling cleaner work areas, simplified splice preparation and less installer error.
Specifications
Specifications
Corning - H28ZQ4-14101S53 - Product Categories
- Shop by Manufacturer/Corning
- Fiber Optic Cables
- Outdoor
- Outdoor Duct Cables
Corning - H28ZQ4-14101S53 - Specifications
| General Specifications | - |
|---|---|
| Product Number | H28ZQ4-14101S53 |
| Environment | Outdoor |
| Cable Type | Ribbon |
| Product Type | Dielectric |
| Fiber Category | SMF-28 Ultra fiber |
| Application | Duct |
| Fiber Count | 1728 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Common Installations | Outdoor lashed aerial, duct and direct-buried, indoor when installed according to National Electrical Code (NEC) Article 770 |
| Design and Test Criteria | ANSI/ICEA S-87-640, Telcordia GR-20 |
| Environmental Conditions | - |
| Temperature Range, Installation | -20 °C to 70 °C (-4 °F to 158 °F ) |
| Temperature Range, Operation | -40 °C to 70 °C (-40 °F to 158 °F ) |
| Temperature Range, Storage | -40 °C to 70 °C (-40 °F to 158 °F ) |

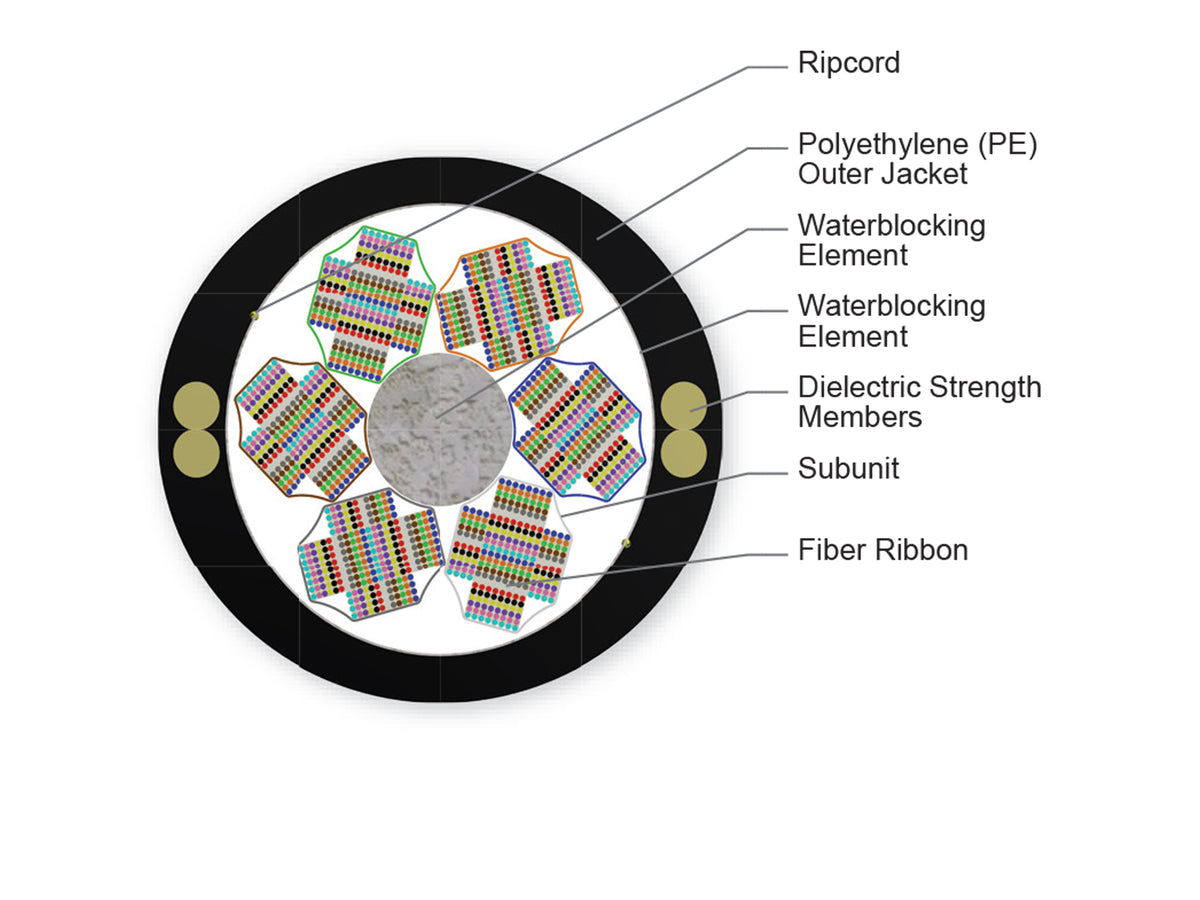

| Cable Design | - |
| Cable Marking | Print in ft with SOCC |
| Fiber Count | 1728 |
| Number of Ripcords | 2 |
| Fiber Coloring | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Outer Jacket Color | Black |
| Outer Jacket Material | Polyethylene (PE) |
| Tensile Strength Elements and/or Armoring - Layer 1 | Dielectric strength members |
| Tape | Water-swellable |
| Subunit Color | Blue, Orange, Green, Brown, Slate, White |
| Number of Subunits | 6 |
| Ribbons per Subunit | 16 (12 F x 4 Ribbon / 24 F x 8 Ribbon / 12 F x 4 Ribbon) |
| Fibers per Subunit | 288 |
| Mechanical Specifications | - |
| Max. Tensile Strength, Long-Term | 890 N (200.08 lbf) |
| Max. Tensile Strength, Short-Term | 2700 N (606.98 lbf) |
| Min. Bend Radius Installation | 390 mm (15.35 in) |
| Min. Bend Radius Operation | 390 mm (15.35 in) |
| Nominal Outer Diameter | 26 mm (1.02 in ) |
| Optical Characteristics | - |
| Fiber Code | Z |
| Fiber Name | SMF-28 Ultra fiber |
| Fiber Type | Single-mode |
| Performance Option Code | 1 |
| Maximum Attenuation | 0.4 dB/km / 0.4 dB/km / 0.3 dB/km |
| Wavelengths | 1310 nm / 1383 nm / 1550 nm |
| Fiber Category | ITU-T G.657.A1 |
| Ordering Information | - |
| Weight | 481.91 kg/km (323.83 lb/1000 ft) |
| Brand | RocketRibbon |
| Flammability Rating | Plenum |
| Fiber Count | 1728 |
