Brand: Corning
|
SKU:
10047167
Corning ICH-CS-02P | Industrial Connector Housing (ICH)
Regular price
$684.65
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning ICH-CS-02P | Industrial Connector Housing (ICH)
Regular price
$684.65
Unit price
Description
Description

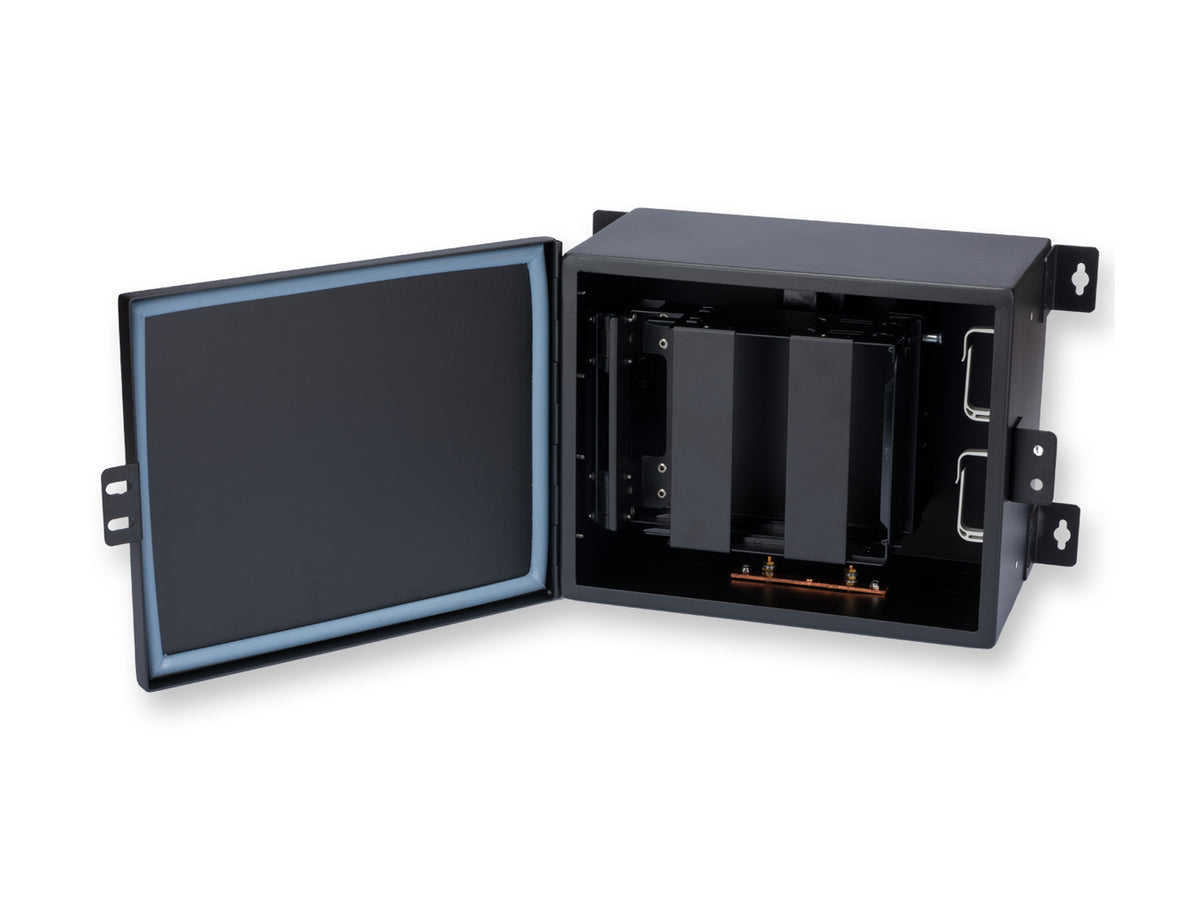

Corning ICH-CS-02P | Industrial Connector Housing (ICH) Holds two CCH cassettes, panels or modules, black
Corning - ICH-CS-02P - Features
- CCH Cassette Compatible
- Modularity – making installation and Moves, Adds and Changes simpler and less risky Simplified Ordering and Designing – 3-4 part numbers are reduced to just one.
- Panel and Module compatible
- Variety of preterminated and direct termination capabilities
- Easy to order and design
- Less time selecting correct splice trays and choosing correct splice tray to use,less time spent putting together the correct BOM and finding out what is needed
- IEC IP64 and NEMA 3S
- Protection from harsh environments
- Routing guides, cable strain-relief provisions included
- Easy, out-of-the-box installation
- Keyhole mounting holes
- Fast installation
Specifications
Specifications
Corning - ICH-CS-02P - Product Categories
- Shop by Manufacturer/Corning
- Communications
- Fiber Optic Cabling Infrastructure
- Fiber Optic Enclosures
- Fiber Optic Hardware
- Housings
Corning - ICH-CS-02P - Specifications
| General Specifications | - |
|---|---|
| Product Number | ICH-CS-02P |
| EAN Code | 4059496606292 |
| Product Type | Fiber Optic Hardware |
| Lockable | Yes |
| Mounting Type | Wall-Mountable |
| Application | Enterprise Networks, LAN, LAN/FAN Applications, Private network environments |
| Design | - |
| Housing Material | Metal |
| Number of Cable Entries | 2 |
| Cable entry type | Prepunched circular |
| Number of Panels/Cassettes per Housing | 2 |
| Cable Entry Direction | Bottom-left |
| Housing Type | ICH |
| Locking Availability | Lockable |
| Housing Color | Black |
| Panel or Cassette Type | CCH |
| Panel or Module Type | CCH |
| Splice Tray Options | CCH Pigtailed Splice Cassette (CCH-CS) |
| Design - Adapter | - |
| Housing Color | Black |
| Housing Material | Metal |
| Dimensions | - |
| Height | 267 cm |
| Width | 33 cm |
| Depth | 19 cm |
| Shipping Dimensions | - |
| Height | 3048 cm |
| Width | 37.47 mm (1.48 in) |
| Depth | 4953 cm |
| Ordering Information | - |
| Weight | 3.18 kg |
| Package Contents | Housing with installation guide, 2 blank panels, unit ID label, UCC strain-relief kit, UCC strain-relief bracket, central strength member strain-relief kit, 2 self-locking nuts, 6-32 SS, 18 1/8 x 4-in tie wraps |
| Shipping Weight | 4.3 kg |
| Width | 330 mm (12.99 in) |
| Units per Delivery | 1/1" |
| Loaded | UNLOADED |
| Type | WALL-MOUNT |
| UNSPSC Code | 43223337 |
