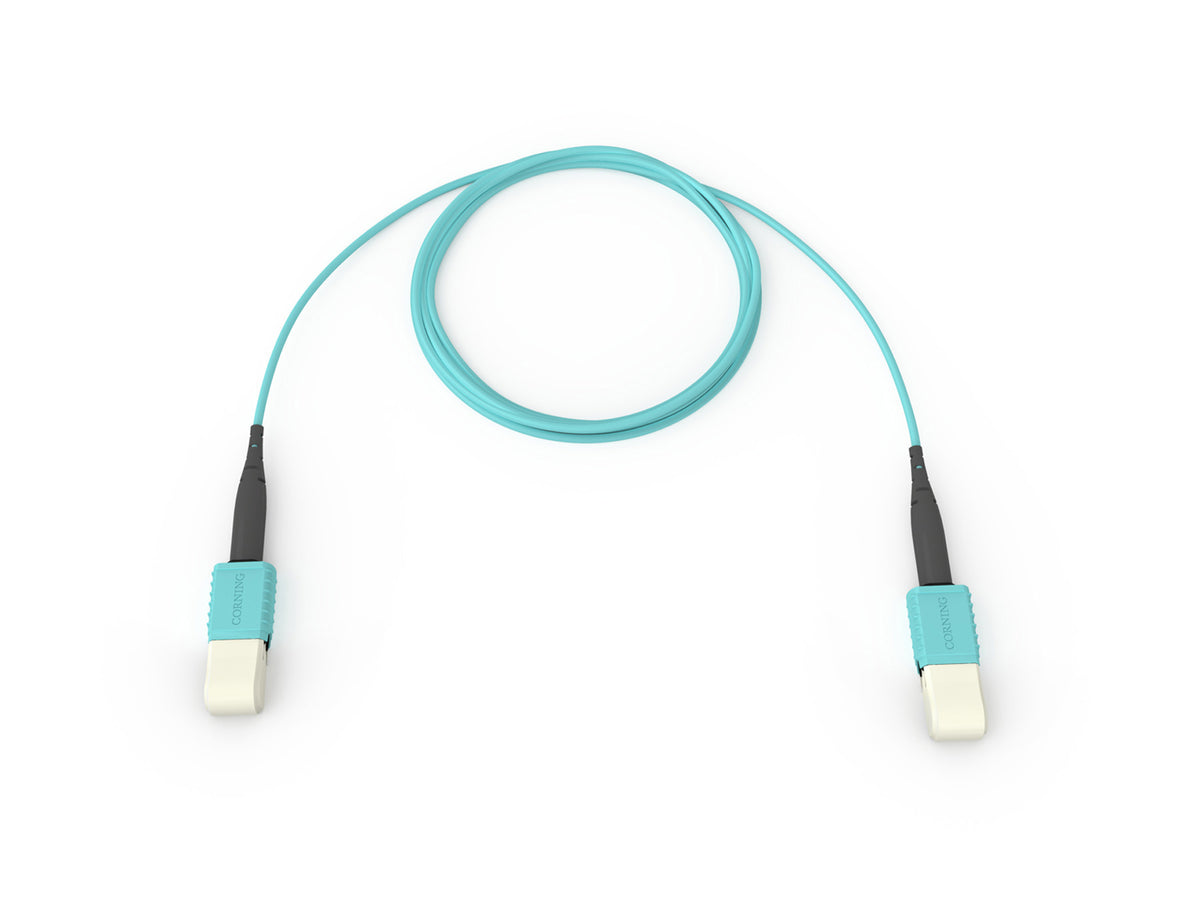

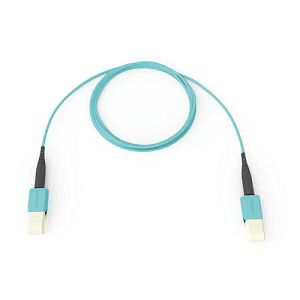

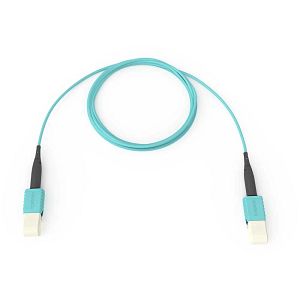

Corning J757512QE8-NB010F | 12-Fiber MTP PRO Jumper
Regular price
$457.38
Unit price
Brand: Corning
|
SKU:
526991
Regular price
$457.38
Unit price
Description
Description
Corning J757512QE8-NB010F | 12-Fiber MTP PRO Jumper 12F, 50 µm multimode (OM4), 10 ft
Corning - J757512QE8-NB010F - Features
- Slim round 2-fiber interconnect cable
- be rond fin 2-fibres
- MTP PRO connectors
- MTP PRO
- Bend-improved fibre
- Allows tighter cable bends for slack storage and routing, less risk of downtime due to pinched or bent cables
- Corning CleanAdvantage technology and optimised dust cap
- Eliminates the need for scoping and cleaning prior to initial field connection
- Slim round 2-fiber interconnect cable
- Improves airflow and reduces congestion MTP PRO connectors
- Allows for pinning and poliarity changes in the field Bend-improved fiber
- Allows tighter cable bends for slack storage and routing, less risk of downtime ue to pinched or bent cables Corning CleanAdvantage technology and optimized dust cap
- Eliminates the need for scoping and cleaning prior to initial field connection
Specifications
Specifications
Corning - J757512QE8-NB010F - Product Categories
- Shop by Manufacturer/Corning
- Communications
- Fiber Optic Cabling Infrastructure
- Fiber Optic Cable Assemblies
- Fiber Optic Cable Assemblies
- Indoor Cable Assemblies
Corning - J757512QE8-NB010F - Specifications
| General Specifications | - |
|---|---|
| Product Number | J757512QE8-NB010F |
| EAN Code | 4056418150758 |
| Flame Rating | NFPA 262 (for plenum, riser and general building applications) |
| Fiber Category | 50 µm MM (OM4) |
| Cable Assembly Type | EDGE Jumper |
| Environment | Indoor |
| Application | Data Center LAN/SAN |
| Cable Type | Interconnect |
| Assembly Insertion Loss | 0.5 dB |
| Connector Assembly Type | MTP to MTP |
| Standards | - |
| Fiber Standards | TIA/EIA-492AAAC-A, Tested with minEMBc method to TIA/EIA-455-220, IEC 60793-2-10 Type A1a.2 Ed.2.0, IEC 60793-1-49 Ed.2.0, ITU-T G.651, ISO/IEC 11801 Ed.2.2 Cat. OM3 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Fiber Standards | TIA/EIA-492AAAC-A, Tested with minEMBc method to TIA/EIA-455-220, IEC 60793-2-10 Type A1a.2 Ed.2.0, IEC 60793-1-49 Ed.2.0, ITU-T G.651, ISO/IEC 11801 Ed.2.2 Cat. OM3 |
| Environmental Conditions | - |
| Temperature Range, Installation | 0 °C to 50 °C (32 °F to 122 °F ) |
| Temperature Range, Operation | -10 °C to 60 °C (14 °F to 140 °F ) |
| Design | - |
| Fiber Count | 12 |
| Outer Jacket Color | Aqua |
| Polarity | TIA-568 Type-B |
| Fiber Type | Multimode |
| Mechanical Specifications | - |
| Max. Tensile Strength for Installation | 220 N (49.46 lbf) |
| Min. Bend Radius Installation | 30 mm (1.18 in) |
| Min. Bend Radius Operation | 10 mm (0.39 in) |
| Weight | 3.5 kg/km (2.35 lb/1000 ft) |
| Optical Characteristics | - |
| Fiber Code | Q |
| Fiber Type | Multimode |
| Fiber Compliance | IEC 60793-2-10 for A1a class 50/125 multimode fibers; TIA/EIA 492AAAD (OM4); ITU-T Recommendation G.651; ISO/IEC 11801 Ed.2.2 Grade OM4 |
| Fiber Core Diameter | 50 µm |
| Minimum Effective Modal Bandwidth (EMB) | 4700 MHz*km / - |
| Maximum Attenuation | 2.8 dB/km / 1.0 dB/km |
| Min. Overfilled Launch (OFL) Bandwidth | 1500 MHz*km / 500 MHz*km |
| Serial 1 Gigabit Ethernet | 1000 MHz*km / 550 MHz*km |
| Parallel Optics 40 Gigabit Ethernet | 150 m / - |
| Serial 10 Gigabit Ethernet | 550 MHz*km / - |
| Wavelengths | 850 nm / 1300 nm |
| Fiber Category | OM4 |
| Specifications - Connector A | - |
| Polish | PC |
| Insertion Loss, Max. | 0.25 dB |
| Boot Color | Black |
| Connector Type | MTP PRO (non-pinned) |
| Ferrule Material | Composite |
| Boot Type | Individual |
| Reflectance | < -20 dB |
| Specifications - Connector B | - |
| Polish | PC |
| Insertion Loss, Max. | 0.25 dB |
| Boot Color | Black |
| Connector Type | MTP PRO (non-pinned) |
| Ferrule Material | Composite |
| Boot Type | Individual |
| Reflectance | < -20 dB |
| Ordering Information | - |
| Weight | 10 kg/km (6.72 lb/1000 ft) |
| Units per Delivery | 1/1" |
| ECCN | EAR99 |
| Country of Origin | MX - Mexico |
| UNSPSC | 26121650 |
| Length | 3 m. |
| Jacket Color | Aqua |
| No. of Connectors | 2 |
| Connector Configurations | MTP to MTP |
| Fiber Category | Multimode - OM4 |
