Brand: Corning
|
SKU:
609346

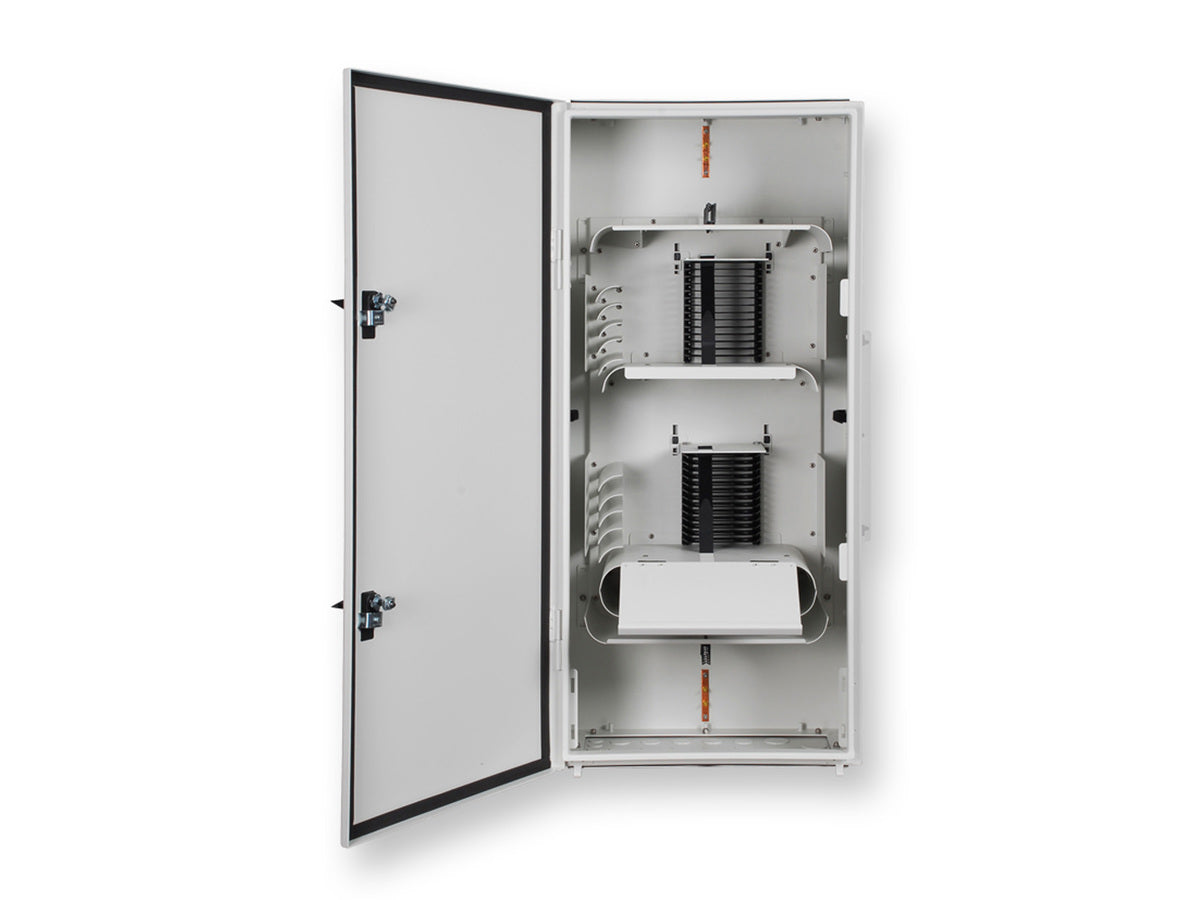

Corning OSE-HD0-W0-1-L | Optical Splice Enclosure (OSE) Universal High Density
Regular price
$2,725.97
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning OSE-HD0-W0-1-L | Optical Splice Enclosure (OSE) Universal H...
Regular price
$2,725.97
Unit price
Description
Description
Corning OSE-HD0-W0-1-L | Optical Splice Enclosure (OSE) Universal High Density, 1440 single fiber/4320 mass fusion splice, standard cable entry, with workshelf, lockable
Corning - OSE-HD0-W0-1-L - Features
- Cable entry plates allow various entry options including standard cable entry and midspan cable access
- Routing and storage components are attached to a removable backplate that adjusts to accommodate top or bottom cable entry
- Routing and guide plates and routing clips provide excellent fiber management
- Accommodates specially designed high-density splice trays, although other splice trays can be used
- OSE-HD0 supports up to 1440 loose tube single-fiber splices or 4320 mass fusion ribbon splices
- OSE-LD0 supports up to 576 loose tube single-fiber splices or 1728 mass fusion ribbon splices
- Horizontal pass-through ports provided near top and bottom of cabinet sides
- Locking option for additional security
Specifications
Specifications
Corning - OSE-HD0-W0-1-L - Specifications
| Product Number | OSE-HD0-W0-1-L |
|---|---|
| EAN Code | 4056418192291 |
| Product Type | Wall-Mountable Hardware |
| Mounting Type | Wall-Mountable, Rack 23-in |
| Application | Carrier Networks, CATV Environments, Customer premises environments |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Splice Trays Capacity | 30 |
| Locking Availability | Single Door |
| Product Family | Splice Enclosure |
| Punch-outs per Removable End Plate | 15 (1.375 in)4 (1.750 in)4 (1.125 in) |
| Total splice capacity | 1440 single-fiber splices or 4320 mass fusion splices |
| Shipping Weight | 40.8 kg |
| Units per Delivery | 1/1 |
