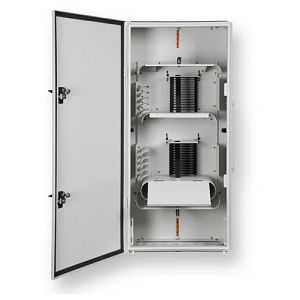

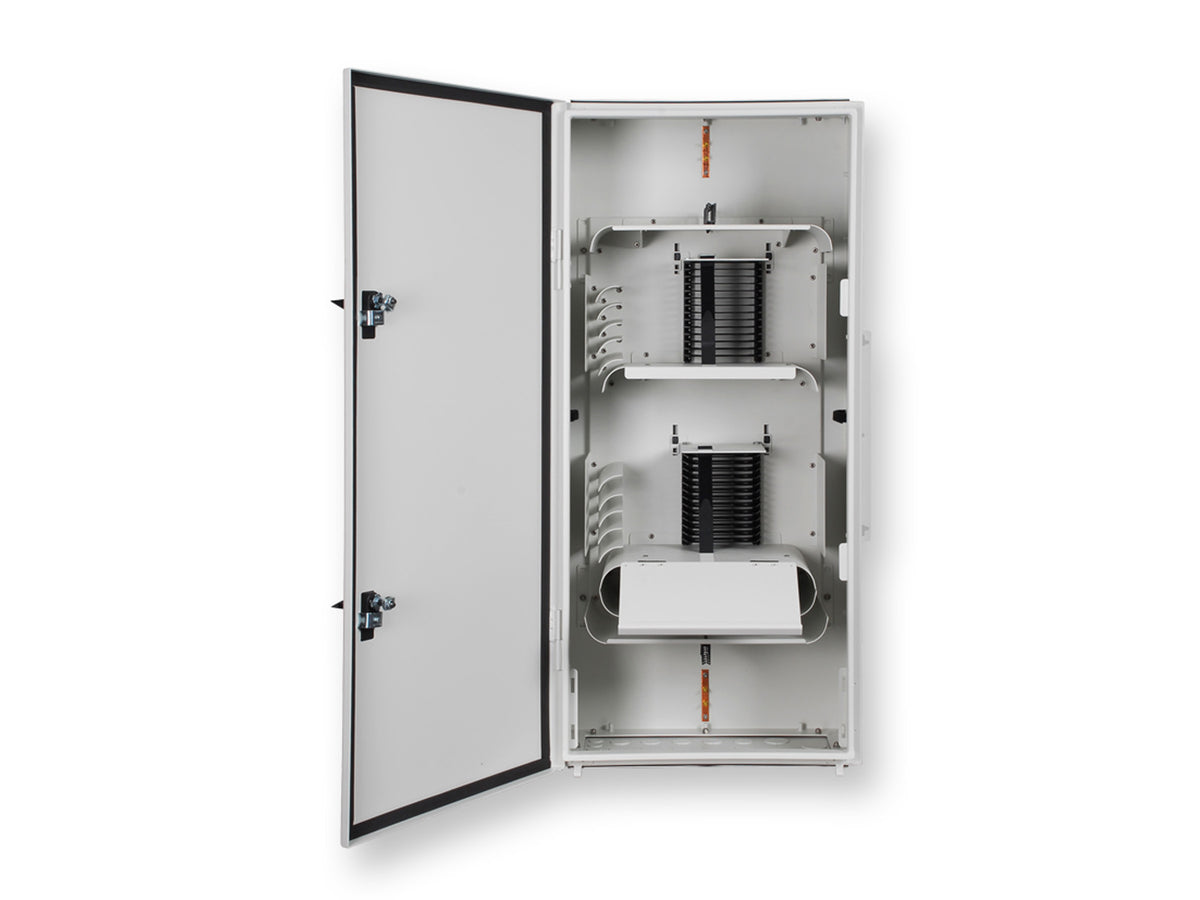

Corning OSE-HD2-00-1 | Optical Splice Enclosure (OSE) Universal
Regular price
$2,053.08
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning OSE-HD2-00-1 | Optical Splice Enclosure (OSE) Universal
Regular price
$2,053.08
Unit price
Description
Description
Corning OSE-HD2-00-1 | Optical Splice Enclosure (OSE) Universal High Density, 1008 single-fiber splice, stacker for 0.2-in tall splice tray, standard cable entry
Universal Optical Splice Enclosure (OSE), High-Density, Stacker For 0.2 in. Tall Splice Trays, Standard Cable Entry
Corning - OSE-HD2-00-1 - Features
- Cable entry plates allow various entry options including standard cable entry and midspan cable access
- Routing and storage components are attached to a removable backplate that adjusts to accommodate top or bottom cable entry
- Routing and guide plates and routing clips provide excellent fiber management
- Accommodates specially designed high-density splice trays, although other splice trays can be used
- OSE-HD0 supports up to 1440 loose tube single-fiber splices or 4320 mass fusion ribbon splices
- OSE-LD0 supports up to 576 loose tube single-fiber splices or 1728 mass fusion ribbon splices
- Horizontal pass-through ports provided near top and bottom of cabinet sides
- Locking option for additional security
- Save time, reduces risk
Specifications
Specifications
Corning - OSE-HD2-00-1 - Product Categories
- Shop by Manufacturer/Corning
- Communications
- Fiber Optic Cabling Infrastructure
- Fiber Optic Enclosures
- DataComm
- Fiber Optic Closures
- Fiber Optic Splice Closures
- Fiber Optic Hardware
- Cabinets
Corning - OSE-HD2-00-1 - Specifications
| General Specifications | - |
|---|---|
| Product Number | OSE-HD2-00-1 |
| EAN Code | 4056418186238 |
| Product Type | Wall-Mountable Hardware |
| Mounting Type | Rack 23-in, Wall-Mountable |
| Design | - |
| Number of Splice Trays | 42 |
| Splice Trays Capacity | 24 |
| Locking Availability | No |
| Product Family | Splice Enclosure |
| Punch-outs per Removable End Plate | 4 (1.125 in)4 (1.750 in)15 (1.375 in) |
| Total splice capacity | 1008 single-fiber splices |
| Dimensions | - |
| Height | 1143 cm |
| Ordering Information | - |
| Shipping Weight | 40.8 kg |
| Width | 559 cm |
| Depth | 33 cm |
| Units per Delivery | 1/1" |
