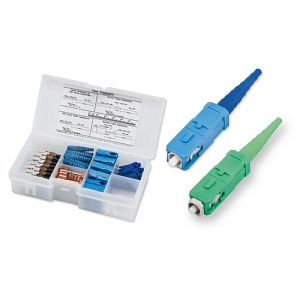

Corning OSNP-SCA-250-Z | OptiSnap Connector, SC
Regular price
$639.03
Unit price
Brand: Corning
|
SKU:
496267
Regular price
$639.03
Unit price
Description
Description

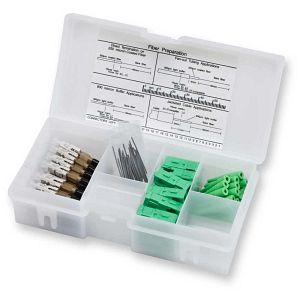

Corning OSNP-SCA-250-Z | OptiSnap Connector, SC Organizer Pack, Single-mode (OS2) APC
Corning - OSNP-SCA-250-Z - Features
- No-epoxy/no-polish or other consumables required
- Quick and easy installation, less than one minute per connector on average
- 100 percent factory tested for insertion loss
- Typical insertion loss of 0.2 dB for UPC and 0.3 dB for APC connectors
- Factory-polished end face
- Low insertion loss and high-performance return loss
- Reliable, proven mechanical splice technology
- Over 70 million connectors deployed in various applications
- No need for electrical power for ovens or lights
- Reduces complexity
- No-epoxy/no-polish or other consumables required
- Quick and easy installation, less than one minute per connector on average 100 percent factory tested for insertion loss
- Typical insertion loss of 0.2 dB for UPC and 0.3 dB for APC connectors Factory-polished end face
- Low insertion loss and high-performance return loss Reliable, proven mechanical splice technology
- Over 70 million connectors deployed in various applications No need for electrical power for ovens or lights
- Reduces complexity
Specifications
Specifications
Corning - OSNP-SCA-250-Z - Product Categories
- Shop by Manufacturer/Corning
- Communications
- Fiber Optic Cabling Infrastructure
- Fiber Optic Connectors
- Fiber Optic Connectivity
- Connectors
Corning - OSNP-SCA-250-Z - Specifications
| General Specifications | - |
|---|---|
| Product Number | OSNP-SCA-250-Z |
| EAN Code | 4056418199481 |
| Fiber Category | Single-mode (OS2) |
| Product Type | Field-Installable Connectors |
| Technology | No-Epoxy/No-Polish |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | Passed EIA/TIA 568-B.3 |
| Environmental Conditions | - |
| Temperature Range, Operation | -40 °C to -40 °C (-40 °F to -40 °F ) |
| Design - Connector | - |
| Connector Type | SC |
| Housing Color | Green |
| Boot Color | Green |
| Ferrule Material | Ceramic |
| Mechanical Specifications - Connector | - |
| Cable Compatibility | 250 µm |
| Nominal Fiber Outer Diameter | 125 µm |
| Tensile Strength Jacketed Cable | 49.5 N (11.13 lbf) |
| Durability | ? 0.2 dB change, 500 rematings, FOTP-21 |
| Tensile Strength 900 µm Cable | 4.8 N (1.1 lb) change ? 0.2 dB |
| Optical Specifications - Connector | - |
| Polish | APC |
| Reflectance | ? -40 dB (FBC-009 for 250 µm) |
| Insertion Loss, Typical | 0.4 dB |
| Reflectance (angled cleave) | ? -55 dB (FBC-016 for 250 µm) |
| Ordering Information | - |
| Packaging | Organizer Pack |
| Package Contents | 25 connectors, 25 shrouds, 25 boots (900 µm), 25 furcation tubes |
| Units per Delivery | 25/1" |
| ECCN | EAR99 |
| Country of Origin | MX - Mexico |
| UNSPSC | 43223310 |
| Brand | OptiSnap |
| Color Family | Green |
| Packaging | 25 per Package |
| Material | Ceramic |
| Product Includes | (25) Boots (900 m); (25) Connectors; (25) Furcation Tubes; (25) Shrouds |
| Type | Field-Installable Connectors |
| Color | Green |
| Technology | No-Epoxy/No-Polish |
| Connector Type | SC |
| Fiber Category | Singlemode - OS2 |
