Corning OSNP-STU-900-Z | OptiSnap Connector, ST compatible
Description
Description
With proven field-installable connector technology, fiber terminations using the OptiSnap connector system are fast, easy and reliable. Corning high-precision mechanical splice technology enables fiber optic networks to be installed quickly and cost effectively.
The Corning go/no-go feedback signal allows the installer to verify that the installation is performed right the first time, every time. Insert the fiber, activate the cam and watch the pass/fail light illuminate, instilling confidence in every connector installed.
The factory-polished ceramic ferrule provides superior quality for end-face geometry. The single-mode OptiSnap Connector is available in an ultra physical contact (UPC) polish or an angled physical contact (APC) polish, offering you a higher grade of performance for your field terminations. With fast installation time and low insertion loss, the OptiSnap Connector system provides a good alternative to fusion splicing. Installation is as easy as strip, clean, cleave, cam and crimp.
Corning - OSNP-STU-900-Z - Features
- No-epoxy/no-polish or other consumables required
- Quick and easy installation, less than one minute per connector on average
- 100 percent factory tested for insertion loss
- Typical insertion loss of 0.2 dB for UPC and 0.3 dB for APC connectors
- Factory-polished end face
- Low insertion loss and high-performance return loss
- Reliable, proven mechanical splice technology
- Over 70 million connectors deployed in various applications
- No need for electrical power for ovens or lights
- Reduces complexity
- No-epoxy/no-polish or other consumables required
- Quick and easy installation, less than one minute per connector on average 100 percent factory tested for insertion loss
- Typical insertion loss of 0.2 dB for UPC and 0.3 dB for APC connectors Factory-polished end face
- Low insertion loss and high-performance return loss Reliable, proven mechanical splice technology
- Over 70 million connectors deployed in various applications No need for electrical power for ovens or lights
- Reduces complexity
Specifications
Specifications
Corning - OSNP-STU-900-Z - Product Categories
- Shop by Manufacturer/Corning
- Communications
- Fiber Optic Cabling Infrastructure
- Fiber Optic Connectors
- Fiber Optic Connectivity
- Connectors
Corning - OSNP-STU-900-Z - Specifications
| General Specifications | - |
|---|---|
| Product Number | OSNP-STU-900-Z |
| EAN Code | 4056418188805 |
| Fiber Category | Single-mode (OS2) |
| Product Type | Field-Installable Connectors |
| Technology | No-Epoxy/No-Polish |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | Passed EIA/TIA 568-B.3 |
| Environmental Conditions | - |
| Temperature Range, Operation | 0 °C to 60 °C (32 °F to 140 °F ) |
| Design - Connector | - |
| Connector Type | ST compatible |
| Housing Color | Amber |
| Boot Color | Blue |
| Ferrule Material | Ceramic |
| Mechanical Specifications - Connector | - |
| Cable Compatibility | 900 µm |
| Nominal Fiber Outer Diameter | 125 µm |
| Tensile Strength Jacketed Cable | 49.5 N (11.13 lbf) |
| Durability | ? 0.2 dB change, 500 rematings, FOTP-21 |
| Tensile Strength 900 µm Cable | 4.8 N (1.1 lb) change ? 0.2 dB |
| Optical Specifications - Connector | - |
| Polish | UPC |
| Reflectance | ? -32 dB (FBC-009 for 900 µm) |
| Insertion Loss, Typical | 0.2 dB |
| Reflectance (angled cleave) | ? -40 dB (FBC-016 for 900 µm) |
| Ordering Information | - |
| Packaging | Organizer Pack |

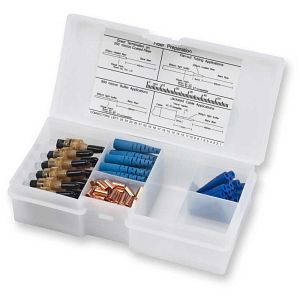

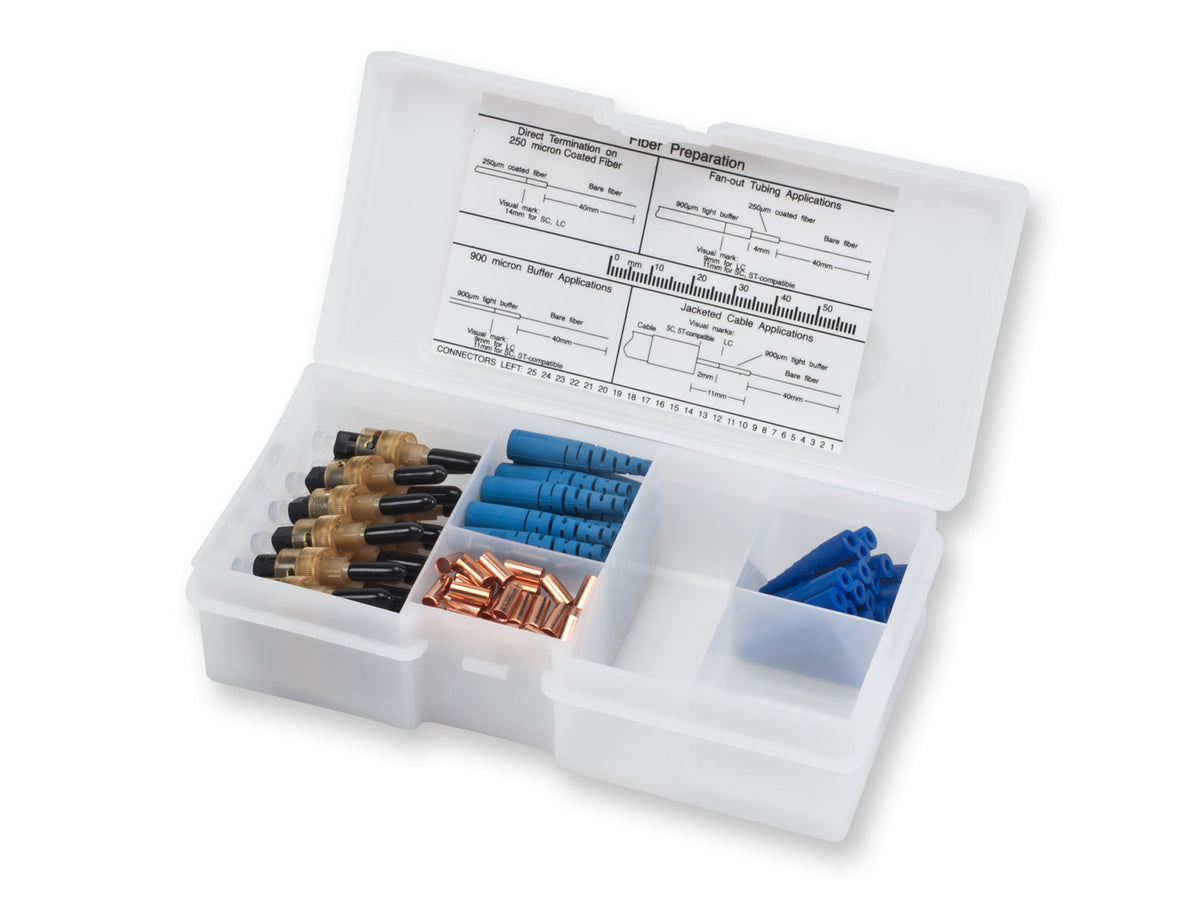

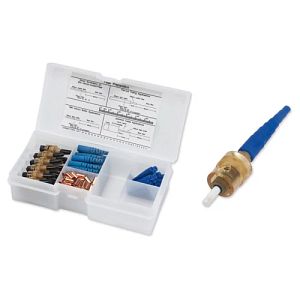

| Package Contents | 25 connectors, 25 crimp bands, 25 boots (900 µm), 25 boots (3.0 mm) |
| Units per Delivery | 25/1" |
| ECCN | EAR99 |
| Country of Origin | MX - Mexico |
| UNSPSC | 43223310 |
| Brand | OptiSnap |
| Additional Features | Factory-Polished End Face |
| Type | ST Connector |
| Use With | Singlemode Fiber Terminations |
