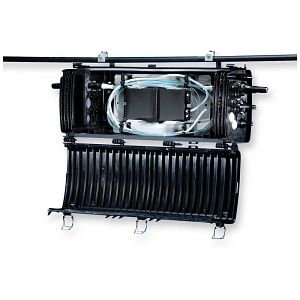

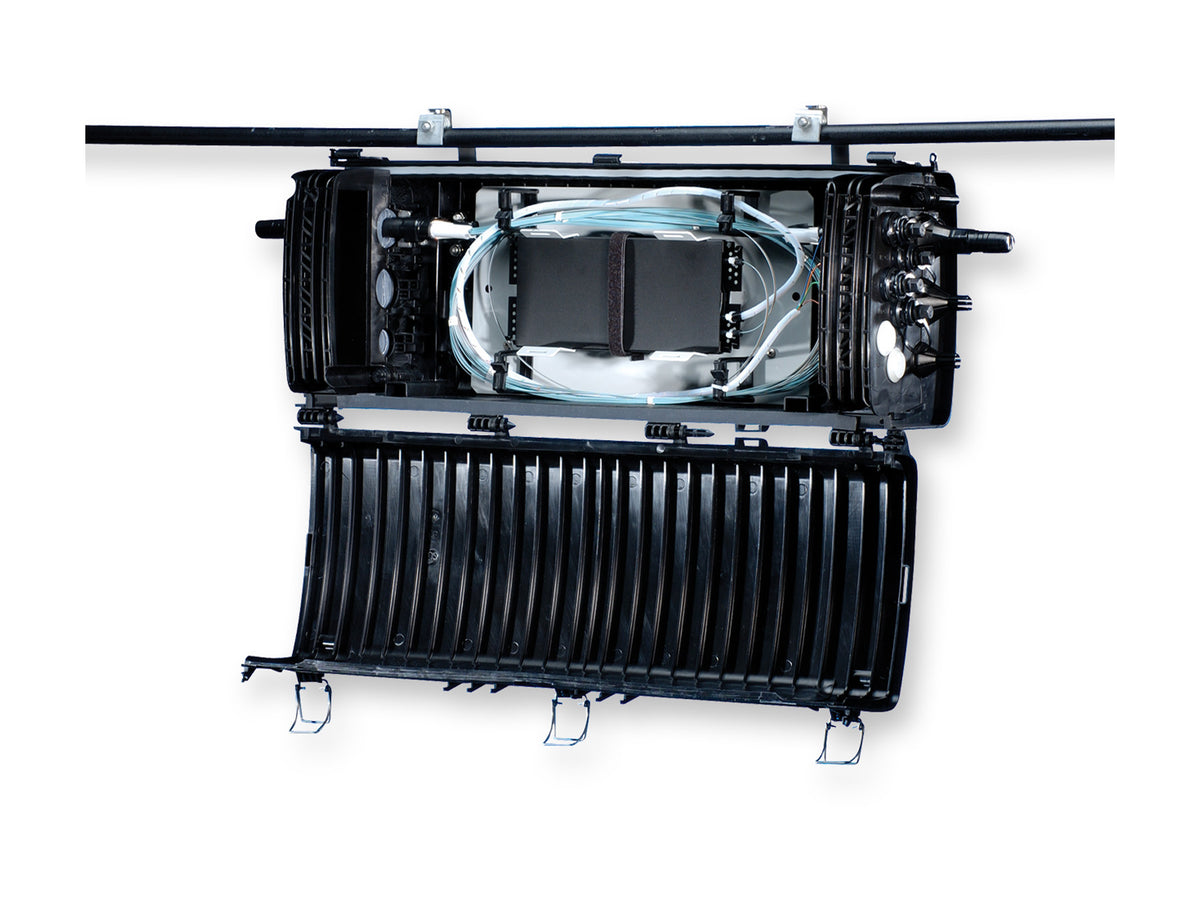

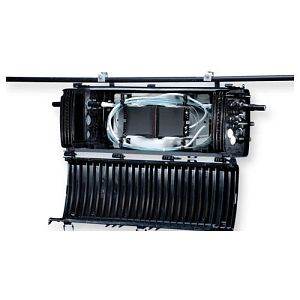

Corning SCA-9T24-046CP | OptiSheath Aerial Terminal (SCA), pigtailed
Regular price
$445.28
Unit price
Brand: Corning
|
SKU:
442335
Regular price
$445.28
Unit price
Description
Description
Corning SCA-9T24-046CP | OptiSheath Aerial Terminal (SCA), pigtailed SNAP-9T24, 4 OptiTap Connector adapters, aerial bracket, one 24 SFS tray and four single-fiber pigtails
Corning - SCA-9T24-046CP - Features
- Design includes aerial hanging brackets
- Easy installation
- Quick release clamps
- Easy terminal re-entry
- Individual strain-relief
- Fiber protection and continuity
- Cable sealing and reusable gel seals
- Environmental protection
- Provides a low-cost aerial terminal optimized for optical access architectures
- Designed to install easily on a strand (aerial hanging brackets included)
- Both the 24- and 34-inch units support up to 12 OptiFit Advantage Drop Cable Assembly connectors: If four or six connectors are ordered, they will be housed in right end cap. If eight or 12 connectors are ordered, both end caps will be utilized
- 34-inch terminal may be used in taut-sheath application
- Includes one splice tray and appropriate number of pigtails
- Quick-release clamps for easy terminal re-entry
- Individual strain-relief and sealing of all cables
- Reusable gel seals for distribution cable ports
- Designed and third-party tested to meet Telcordia TR-TSY-000949 and GR-771
- Terminal Fiber Management Capabilities include: - Up to 7 feet of slack storage - Maximum fiber cable capacity is 216 loose tube and 432 ribbon - Accommodates up to 6 splice trays (144 single fibers or 288 ribbon fibers)
Specifications
Specifications
Corning - SCA-9T24-046CP - Product Categories
- Shop by Manufacturer/Corning
- Communications
- Fiber Optic Cabling Infrastructure
- Fiber Optic Splices
- Closures
- Fiber Optic Closures
Corning - SCA-9T24-046CP - Specifications
| General Specifications | - |
|---|---|
| Product Number | SCA-9T24-046CP |
| EAN Code | 4056418190174 |
| Product Type | FOH Closures |
| Standards | - |
| Approvals and Listings | Meets Telcordia TR TSY-000949 and GR-771 CORE requirements |
| Design | - |
| Pigtail Class | Single fiber (900 µm) |
| Design - Connector | - |
| Connector Type | SC |
| Dimensions | - |
| Height | 228.6 mm (9 in) |
| Width | 622.3 mm (24.5 in) |
| Depth | 158.8 mm (6.25 in) |
| Ordering Information | - |
| Units per Delivery | 1/1" |
| ECCN | EAR99 |
| Country of Origin | MX - Mexico |
| UNSPSC | 39121700 |
| Closure Type | FOH Closure |
| Kit Includes | (4) Single-Fiber Pigtails, 24 SFS Tray, 4 OptiTap Connector Adapters, Aerial Bracket, Pigtailed, |
| Max. Single Fusion Splice Capacity | 144 |
