Brand: Corning
|
SKU:
212111

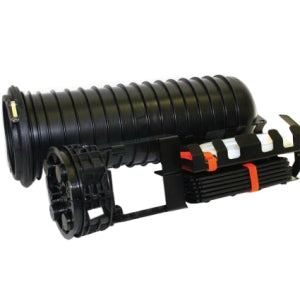

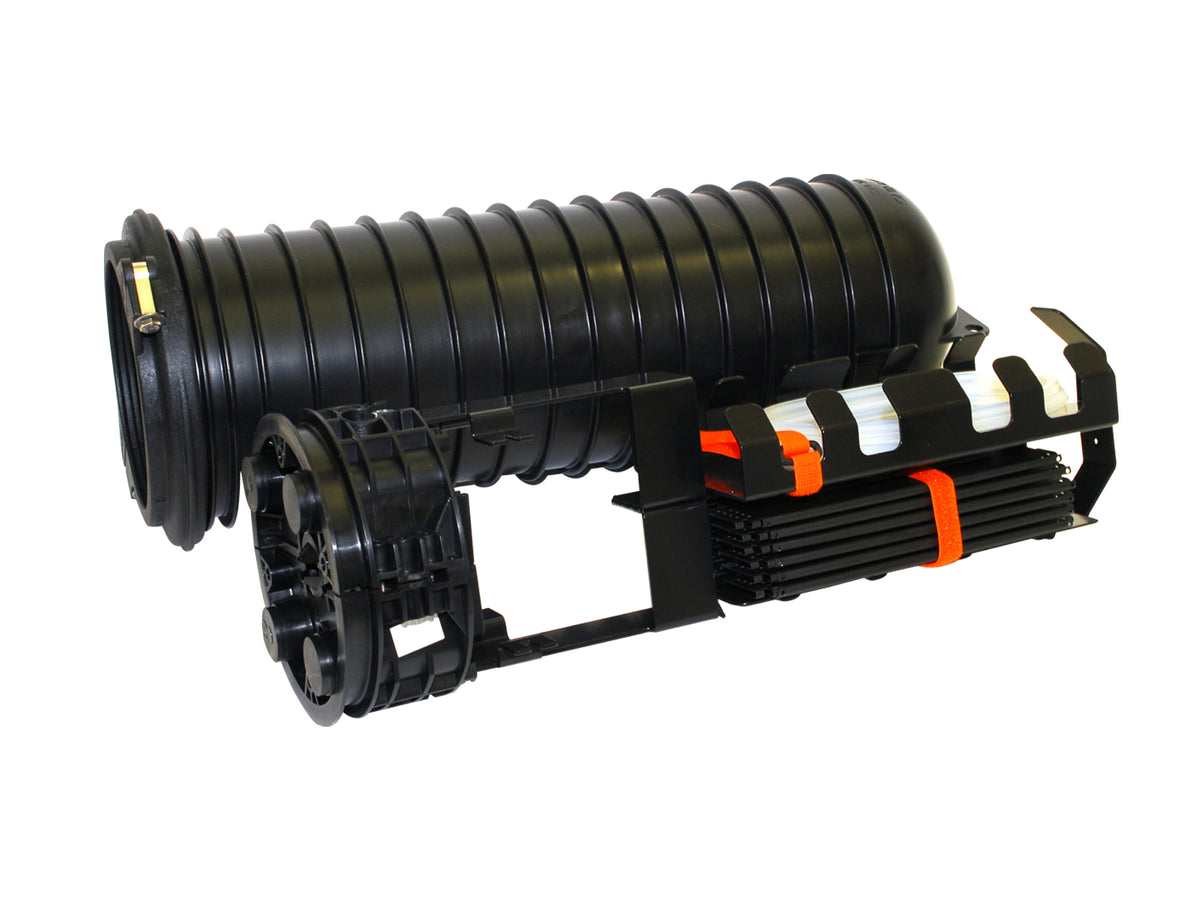

Corning SCF-6C22-01-72 | Splice Closure Fiber (SCF), preloaded with splice trays
Regular price
$660.85
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning SCF-6C22-01-72 | Splice Closure Fiber (SCF), preloaded with...
Regular price
$660.85
Unit price
Description
Description
Corning SCF-6C22-01-72 | Splice Closure Fiber (SCF), preloaded with splice trays 72 single-fiber splice capacity, 6-in diameter, 22-in dome length
Corning - SCF-6C22-01-72 - Features
- Modular fiber management system
- Increased splicing capability in the field
- Aerial, wall, pole, direct-buried
- Suitable for all applications
- Ribbon reel-end to reel-end splicing
- No additional splice trays required (ORS)
- Split end caps
- Easy installation of uncut cables
Specifications
Specifications
Corning - SCF-6C22-01-72 - Product Categories
- Shop by Manufacturer/Corning
- Data Communications and Networking
- Copper and Fiber Connectivity
- Fiber Optic Termination and Splicing
- Closures
- Fiber Optic Closures
Corning - SCF-6C22-01-72 - Specifications
| General Specifications | - |
|---|---|
| Product Number | SCF-6C22-01-72 |
| EAN Code | 4056418189970 |
| Application | Carrier Networks, CATV Environments, Customer premises environments |
| Mounting Type | Aerial, Wall-Mount, Pole-mount |
| Product Type | FOH Closures |
| Design | - |
| Fiber Management Configuration | Full slack storage basket - tray stacker |
| Ground Feed Through Cable Entries | 2 |
| Number of Ports | 6 |
| SCF Type | 6 in canister, 22 in LID |
| Splice Tray Stacker Configuration | 0.2-in tray height (single fiber) |
| Optical Specifications | - |
| Channels | 20, 21, 22, 23, 24, 25, 26, 27, 28, 29 |
| Channel Spacing | 100 GHz |
| Channel Insertion Loss | 3.2 dB |
| Dimensions | - |
| Height | 584 cm |
| Width | 168 cm |
| Shipping Dimensions | - |
| Height | 22 cm |
| Width | 22 cm |
| Depth | 67.3 cm |
| Ordering Information | - |
| Units per Delivery | 1/1" |
| Type | Wall Mount Splice Closure |
| Capacity - Fiber | 72 |
| Size HxWxD Imperial | 22.00 in (L) x 6.60 in (Dia) |
| Size HxWxD Metric | 558.8 mm (L) x 167.6 mm (Dia) |
