Brand: Corning
|
SKU:
878807

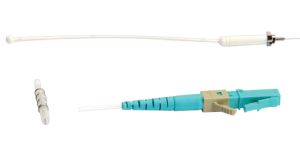

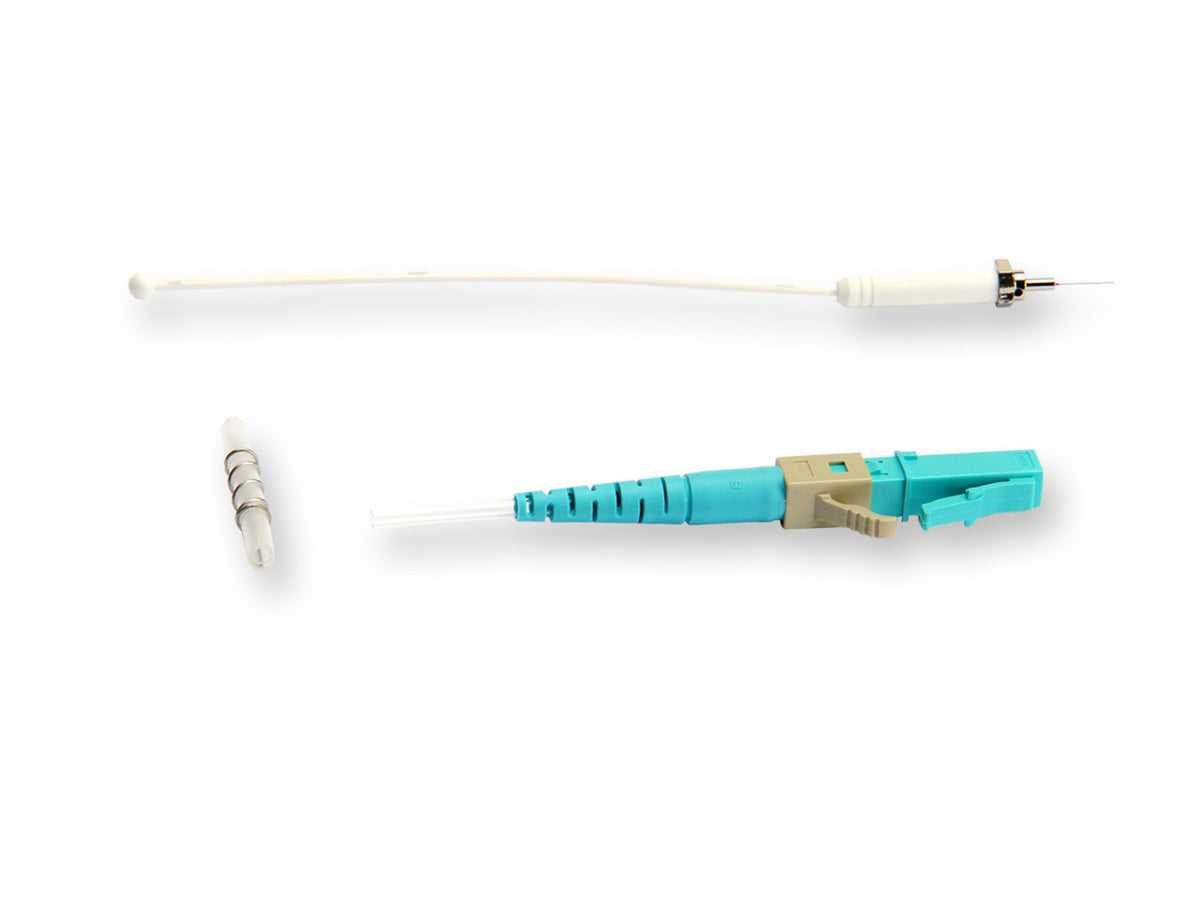

Corning SOC-LC-FAN-OM4 | FuseLite Connector, LC, Buffer Tube Fan-Out
Regular price
$24.81
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning SOC-LC-FAN-OM4 | FuseLite Connector, LC, Buffer Tube Fan-Out
Regular price
$24.81
Unit price
Description
Description
Corning SOC-LC-FAN-OM4 | FuseLite Connector, LC, Buffer Tube Fan-Out 50 µm multimode (OM2/3/4)
Corning - SOC-LC-FAN-OM4 - Features
- Broad operating temperature range (-40°C to +75°C)
- Utility and flexibility
- Factory-polished end face
- Consistent optical performance
- Fusion splice connectivity
- Ideal for reflectance-sensitive applications
- Splice protection within connector body
- No splice trays required
- Available in ribbon and 3 mm cable options
- Ideal for cable trunk restoration and repair
Specifications
Specifications
Corning - SOC-LC-FAN-OM4 - Product Categories
- Shop by Manufacturer/Corning
- Communications
- Fiber Optic Cabling Infrastructure
- Fiber Optic Connectors
- Data Communications and Networking
- Copper and Fiber Connectivity
- Fiber Optic Termination and Splicing
- Fiber Optic Connectivity
- Connectors
Corning - SOC-LC-FAN-OM4 - Specifications
| General Specifications | - |
|---|---|
| Product Number | SOC-LC-FAN-OM4 |
| EAN Code | 4056418150505 |
| Fiber Category | 50 µm MM (OM2/OM3/OM4) |
| Product Type | Field-Installable Connectors |
| Compatibility | LC |
| Corning Logo | Yes |
| Keyed (security) | No |
| Technology | Fuse-On |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | Telcordia GR-326-CORE and GR-1081-CORE compliant |
| Environmental Conditions | - |
| Temperature Range, Operation | -40 °C to -40 °C (-40 °F to -40 °F ) |
| Design - Connector | - |
| Connector Type | LC |
| Housing Color | Aqua |
| Boot Color | Aqua |
| Ferrule Material | Composite |
| Pinned | No |
| Optical Specifications - Connector | - |
| Polish | PC |
| Insertion Loss, Max. | 0.25 dB |
| Reflectance | < -30 dB |
| Insertion Loss, Typical | 0.1 dB |
| Ordering Information | - |
| Packaging | Individual Pack |
| Units per Delivery | 1/1" |
| Connector Type | LC Field Installable Connector |
| Fiber Type | Multimode 50 um (OM2/3/4) |
| Cable Construction | Buffer Tube |
| Ferrule | Composite |
| Color | Aqua |
