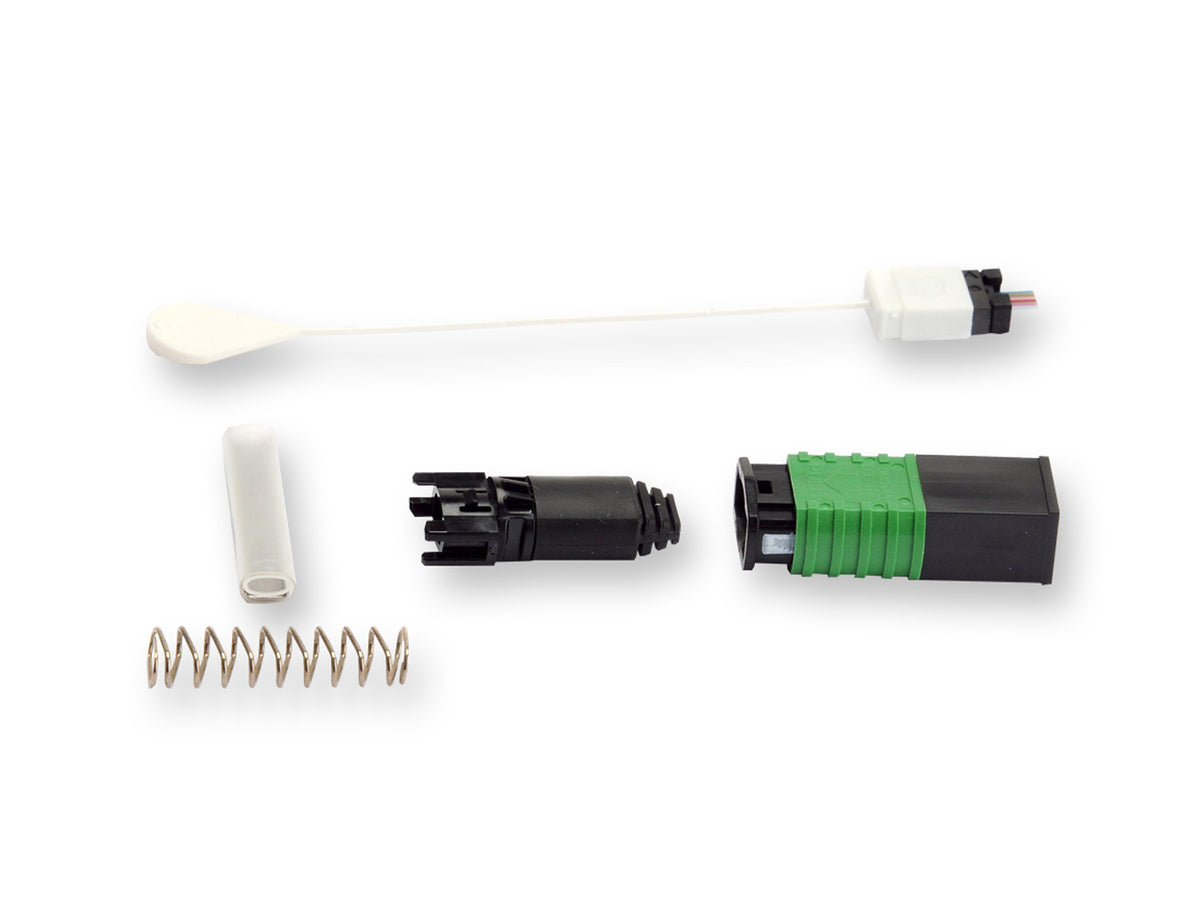

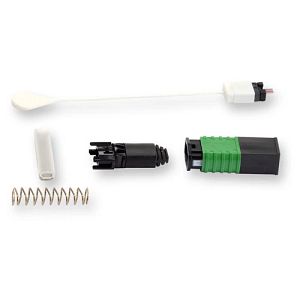

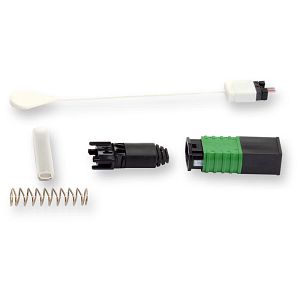

Corning SOC-MTPA-RP-SM | FuseLite Connector, MTP compatible, Ribbon Cable
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning SOC-MTPA-RP-SM | FuseLite Connector, MTP compatible, Ribbon...
Description
Description
The FuseLite MTP Compatible Splice-On Connector enables fast, reliable fusion splicing repair, restoration or connectivity for data center cabling systems, or other applications where MTP (also known as MPO) connectivity is required.
As part of EDGE and EDGE8 solutions for data centers, the FuseLite MTP compatible connector pairs with EDGE modules and hardware for high-density data center connectivity without pre-engineered trunk lengths – ideal for applications where final trunk length decisions must be made on-site. The FuseLite MTP connector is also ideal for emergency repair and restoration of data center cable trunks and other MTP connector-based connectivity.
Available in single-mode and multimode, the FuseLite Connector eliminates the need for splice trays and is compatible with leading fusion splicers in the market.
The FuseLite Splice-On Holder enables fast, reliable fusion splicing connectivity for local area networks and offers flexibility for repairs and restoration of connectivity.
Corning - SOC-MTPA-RP-SM - Features
- Broad operating temperature range (-40°C to +75°C)
- Utility and flexibility
- Factory-polished end face
- Consistent optical performance
- Fusion splice connectivity
- Ideal for reflectance-sensitive applications
- Splice protection within connector body
- No splice trays required
- Available in ribbon and 3 mm cable options
- Ideal for cable trunk restoration and repair
- Broad operating temperature range (-40;C to +75;C)
- Utility and flexibility Factory-polished end face
- Consistent optical performance Fusion splice connectivity
- Ideal for reflectance-sensitive applications Splice protection within connector body
- No sice trays required Available in ribbon and 3 mm cable options
- Ideal for cable trunk restoration and repair
Specifications
Specifications
Corning - SOC-MTPA-RP-SM - Product Categories
- Shop by Manufacturer/Corning
- Communications
- Fiber Optic Cabling Infrastructure
- Fiber Optic Connectors
- Fiber Optic Connectivity
- Connectors
Corning - SOC-MTPA-RP-SM - Specifications
| General Specifications | - |
|---|---|
| Product Number | SOC-MTPA-RP-SM |
| Fiber Category | Single-mode (OS2) |
| Product Type | Field-Installable Connectors |
| Compatibility | MTP Compatible |
| Corning Logo | Yes |
| Keyed (security) | No |
| Technology | Fuse-On |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | IEC 61754-7 compliant |
| Environmental Conditions | - |
| Temperature Range, Operation | -40 °C to -40 °C (-40 °F to -40 °F ) |
| Design - Connector | - |
| Connector Type | MTP (pinned) |
| Housing Color | Green |
| Boot Color | Black |
| Ferrule Material | Composite |
| Optical Specifications - Connector | - |
| Polish | APC |
| Insertion Loss, Max. | 0.75 dB |
| Reflectance | < -65 dB |
| Insertion Loss, Typical | 0.25 dB |
| Ordering Information | - |
| Packaging | Individual Pack |
| Units per Delivery | 1/1" |
| ECCN | EAR99 |
| Country of Origin | JP - Japan |
