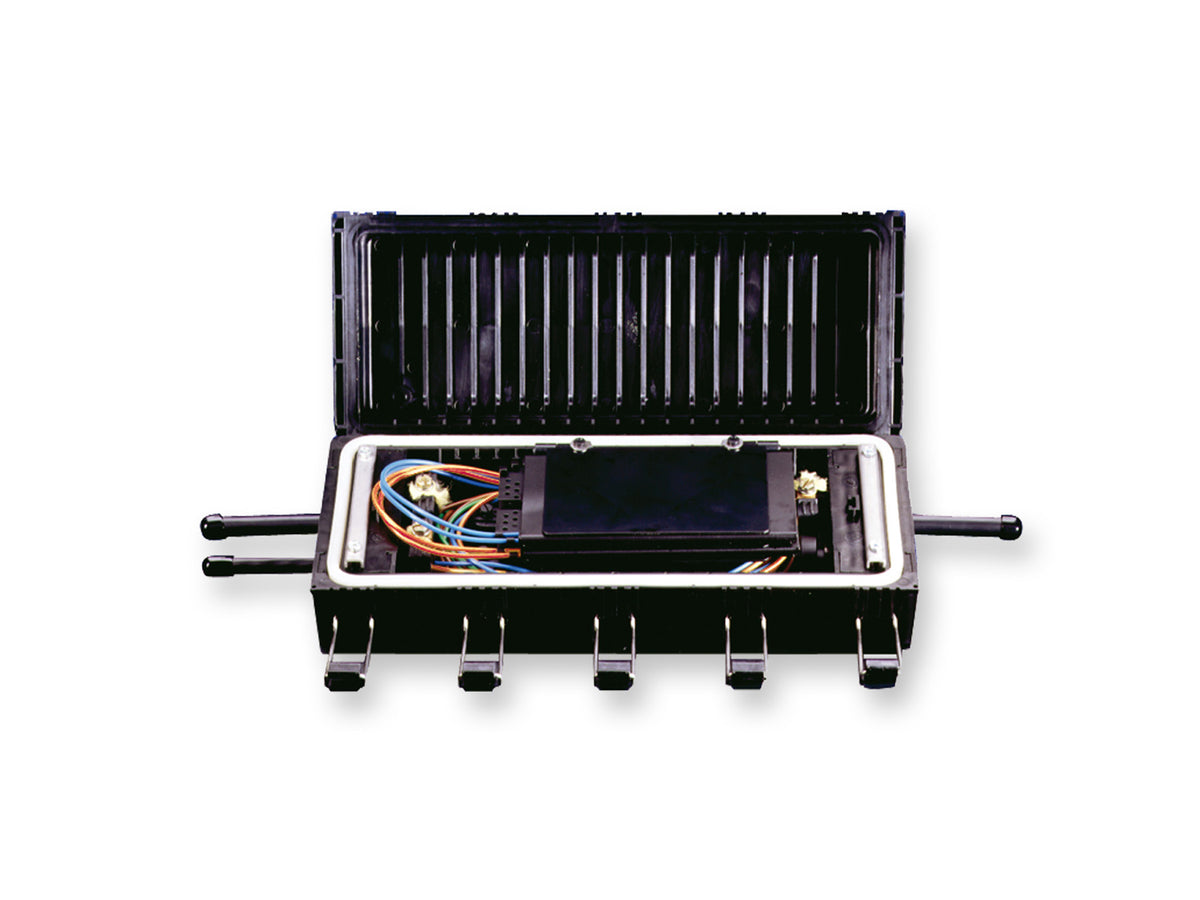

Corning UCAO-05-24 | UCAO Splice Closure
Regular price
$319.44
Unit price
Brand: Corning
|
SKU:
212092
Regular price
$319.44
Unit price
Description
Description
Corning UCAO-05-24 | UCAO Splice Closure 5 tray shelves with two UCAO-ST-02 splice trays
Corning - UCAO-05-24 - Features
- Compact, lightweight, watertight design
- Can be used in aerial, underground or direct-buried applications
- Hinged case with snap-open clips
- Easy access and re-entry
- Reusable seals
- Requires only cleaning and lubrication
- Modular splice tray stacker holds up to five splice trays
- Accommodates up to 60 single-fiber splices
- No special tools required
- Simple, cost-effective field installation
Specifications
Specifications
Corning - UCAO-05-24 - Product Categories
- Shop by Manufacturer/Corning
- Communications
- Fiber Optic Cabling Infrastructure
- Fiber Optic Splices
- Data Communications and Networking
- Copper and Fiber Connectivity
- Fiber Optic Termination and Splicing
- Closures
- Fiber Optic Closures
Corning - UCAO-05-24 - Specifications
| General Specifications | - |
|---|---|
| Product Number | UCAO-05-24 |
| EAN Code | 4056418189598 |
| Product Type | FOH Closures |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Design | - |
| Number of Cable Entries | 4 |
| Number of Splice Trays Preloaded | 2 |
| Trays Capacity | 2 expandable to 52 expandable to 52 expandable to 52 expandable to 52 expandable to 5 |
| Dimensions | - |
| Height | 12.1 cm |
| Width | 16.2 cm |
| Depth | 38.1 cm |
| Ordering Information | - |
| Package Contents | Carton contents: (1) Closure with tray stacker and (2) Sealing wedges; (1) Sealing paste - labeled as “Dichtpaste”; (3) Strain-relief brackets; (5) Buffer tube holders; (1) Sealing gasket; (1) Sealing tape; (3) Ground wires; (3) Hose clamps. Accesory Kit: (2) Precut sealing tape, (2) Prewrapped dummy plugs, (2) Bar clamps for sealing wedges, (4) Bolts for sealing wedges, (1) Gauge for sealing tape, (2) Cleaning tissues, (1) Lubricant, (1) Brush |
| Units per Delivery | 1/1" |
| Type | Splice Closure |
| Capacity - Fiber | 60 |
| Capacity - Trays | 5 |
| Size HxWxD Imperial | 5.00 x 6.00 x 15.00 in |
| Size HxWxD Metric | 127.0 x 152.4 x 381.0 mm |
| Included Accessories | (1) Closure with Tray Stacker, (2) Sealing Wedges, (1) Sealing Paste - Labeled as (Dichtpaste), (3) Strain-Relief Brackets, (5) Buffer Tube Holders, (1) Sealing Gasket, (1) Sealing Tape, (3) Ground Wires, (3) Hose Clamps, (2) Precut Sealing Tape, (2) Prew |
