Brand: Corning | SKU: 95940

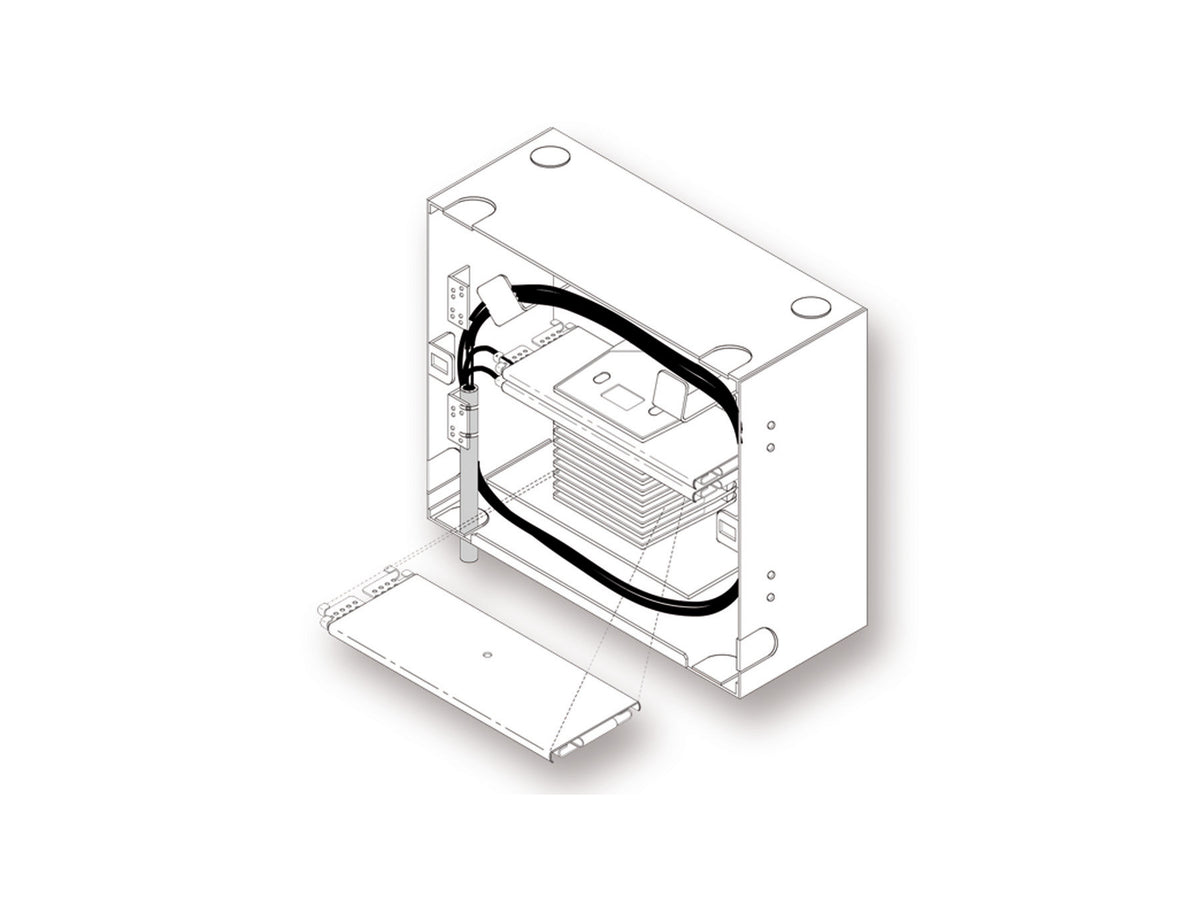

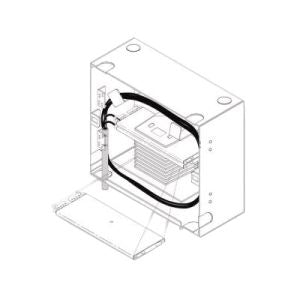

Corning WSC-001 | Wall-Mountable Splice Center (WSC)

Name: Corning WSC-001 | Wall-Mountable Splice Center (WSC)
Brand: Anixter
SKU: 95940
Price: 342.43 USD
Availability: InStock

$342.43

Description

Corning WSC-001 | Wall-Mountable Splice Center (WSC) 96 F, for up to (8) 0.2-in (Category 2S, 2M, 2R) splice trays

Wall-mountable with an optional rack-mounting kit
Less than 5.5-in projection from the wall for space conservation
Cost effective for customer premises or remote applications
Individual splice tray access
Maximum capacity of 96 splices
Supports Single-mode and multimode applications for fusion and mechanical splices
Multiple cable entry locations to accommodate customer design specifications

General Specifications	-
Product Number	WSC-001
EAN Code	4056418188867
Product Type	Panels and Modules
Accessory Type	WSC
Mounting Type	Wall-Mountable
Standards	-
RoHS	Free of hazardous substances according to RoHS 2011/65/EU
Design	-
Housing Type	WSC
Splice Tray Options	Up to 8 0.2-in 2S, 2M or 2R splice trays
Ordering Information	-
Shipping Weight	5.45 kg
Width	43 cm
Depth	134 cm
Height	3175 cm
Units per Delivery	1/1"
Type	Wall Mount Splice Center
Capacity - Fiber	96
Size HxWxD Imperial	12.50 x 17.00 x 5.29 in.
Size HxWxD Metric	317.50 x 431.80 x 134.30 mm
Material	Cold-Rolled Steel
