Corning XD-02U-PT | EDGE Housing-XD 02U Pigtailed Housing
Description
Description

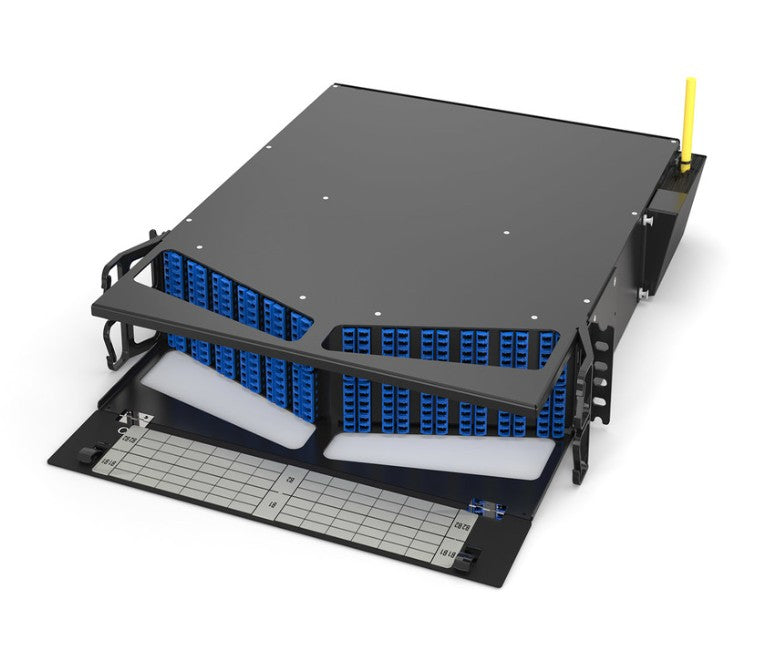

EDGE™ Solutions are high-density pre-terminated optical cabling solutions offering industry-leading connector density. The 2U Extreme Density ribbon-pigtailed housing is designed for speed of deployment. The housing features a single splice tray. This tray holds 24 - 12 fiber ribbons (288 fibers) for a total capacity of 288 fibers within the 2U housing.

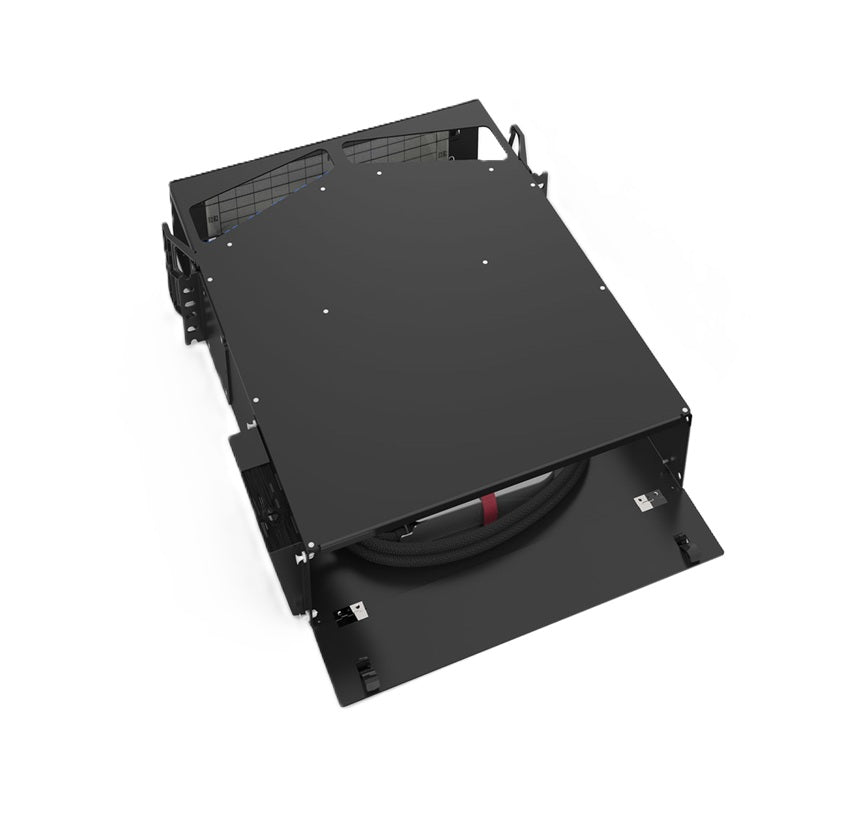

In addition, the housing incorporates ample slack allowing ergonomic splicing on a table or work surface. The V-panel front design delivers ease of connectivity and ample finger access. The jumper management side guides reduce risk of tangling and increase ease of deployment. The housing can be stacked so that a single high-fiber-count cable can be spliced in multiple housings. Additionally, the splice tray is neatly organized and secured in the rear of the housing using a splice tray organizer.
Specifications
Specifications
Corning - XD-02U-PT - Specifications
| Manufacturer Part Number | XD-02U-PT |
|---|---|
| Brand Name | Corning |
| Item Description | EDGE Housing-XD 02U Pigtailed Housing |
| Product Type | Housings |
| Environment | Indoor |
| Access Type | Front and rear access fixed |
| Mounting Type | Rack-mount |
| Application | Data Center |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Input Fiber Count | 288 |
| Maximum Tray Count (SC) | 1 |
| Housing Material | Powder-coated metal and Polycarbonate Tray |
| Maximum Fiber Capacity | 288 |
| Maximum cable number in basic unit with accessories | 2 |
| Number of Cable Entries | 2 |
| Number of Doors | 2 |
| Cable entry type | Grommeted Slot |
| Number of pigtails | 288 |
| Pigtail Length | 4.85 m |
| Color | Black |
| Pigtail Type | Ribbon |
| Splice Protectors Type | Ribbon Splice Protectors |
| Number of Ports | 288 |
| Housing Color | Black |
| Height | 87 mm |
| Width | 468 mm |
| Depth | 591 mm |
