Brand: Corning
|
SKU:
372-COROS2-RIBD3456F

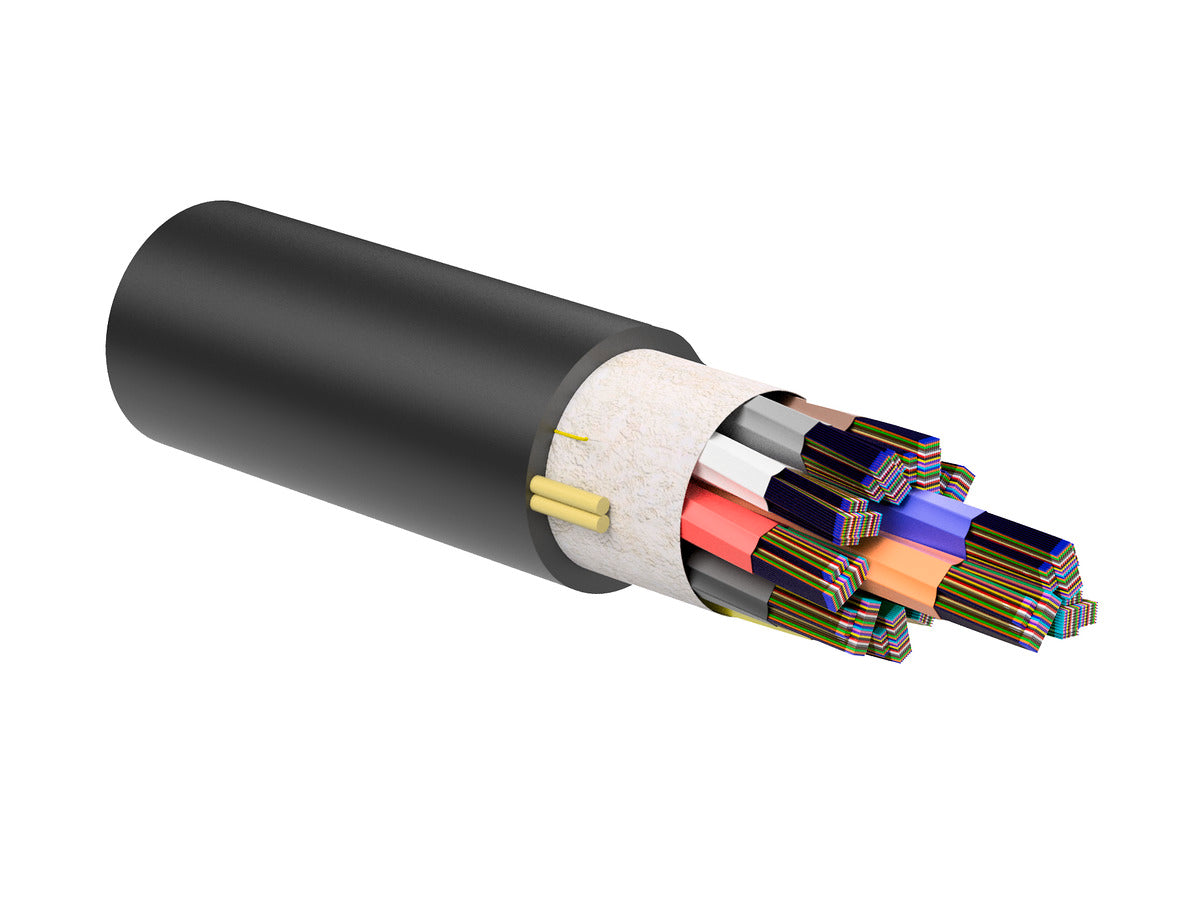

Corning Y56ZQ4-14101S53 | RocketRibbon XD Cable-250 3456F, Dielectric, Bend-improved Single-mode (OS2)
Regular price
$53.58
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning Y56ZQ4-14101S53 | RocketRibbon XD Cable-250 3456F, Dielect...
Regular price
$53.58
Unit price
Brand: Corning
|
SKU:
372-COROS2-RIBD3456F
Regular price
$53.58
Unit price
Shipping calculated at checkout.
Description
Description
Corning Y56ZQ4-14101S53 | RocketRibbon XD Cable-250 3456F, Dielectric, Bend-improved Single-mode (OS2)
Specifications
Specifications
Corning - Y56ZQ4-14101S53 - Product Categories
- Fiber Optic Cables
- Outdoor
- Outdoor Duct Cables
Corning - Y56ZQ4-14101S53 - Specifications
| Brand Name | Corning |
|---|---|
| Manufacturer Part Number | Y56ZQ4-14101S53 |
| Item Description | RocketRibbon XD Cable-250 3456F, Dielectric, Bend-improved Single-mode (OS2) |
| General Specifications | - |
| Product Number | Y56ZQ4-14101S53 |
| Environment | Outdoor |
| Cable Type | Ribbon |
| Product Type | Dielectric |
| Fiber Category | SMF-28 Ultra fiber |
| Application | Duct |
| Fiber Count | 3456 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Common Installations | Designed for Duct Applications |
| Design and Test Criteria | ANSI/ICEA S-87-640, Telcordia GR-20 |
| Environmental Conditions | - |
| Temperature Range, Installation | -20°C to 70°C (-4°F to 158°F ) |
| Temperature Range, Operation | -40°C to 70°C (-40°F to 158°F ) |
| Temperature Range, Storage | -40°C to 70°C (-40°F to 158°F ) |

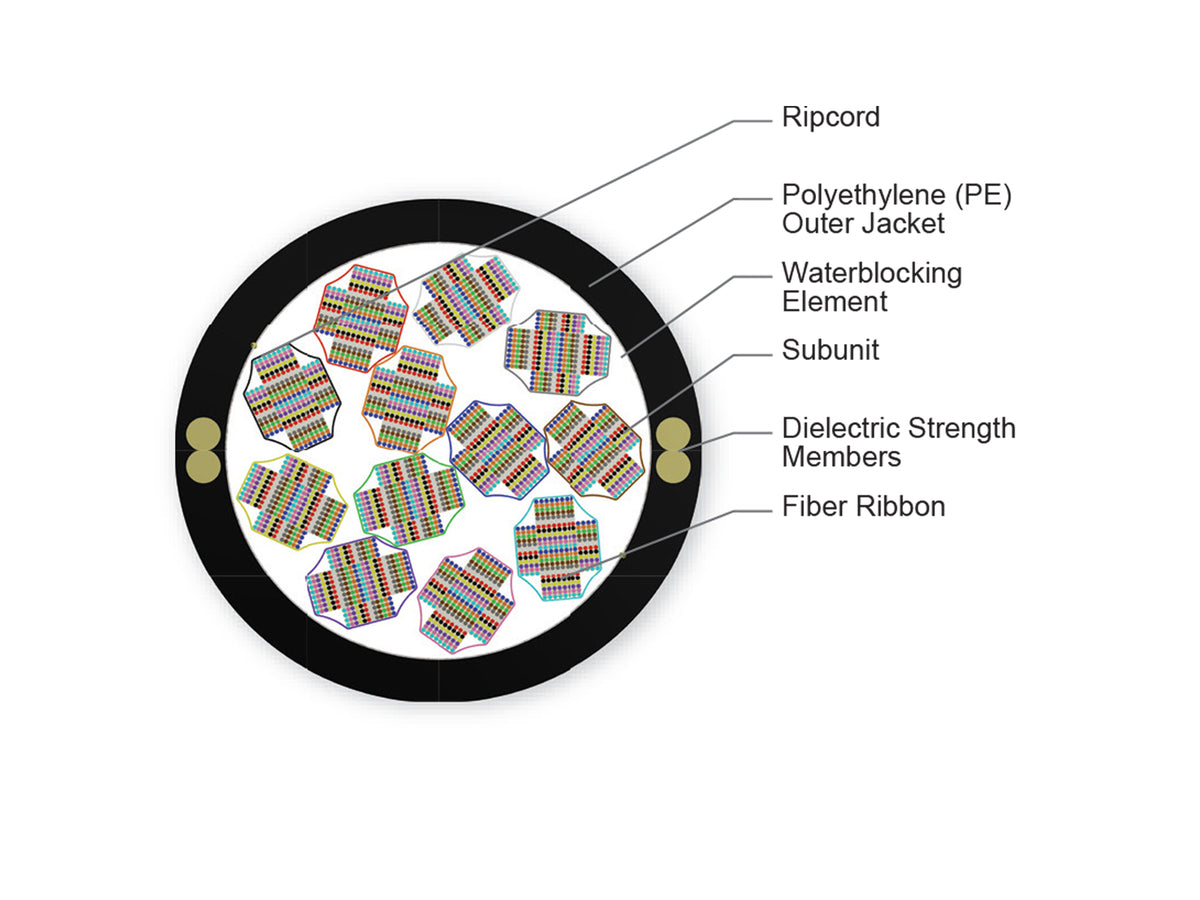

| Cable Design | - |
| Cable Marking | Print in ft with SOCC |
| Fiber Count | 3456 |
| Number of Ripcords | 2 |
| Fiber Coloring | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Outer Jacket Color | Black |
| Outer Jacket Material | Polyethylene (PE) |
| Tensile Strength Elements and/or Armoring - Layer 1 | Dielectric strength members |
| Tape | Water-swellable |
| Subunit Color | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Number of Subunits | 12 |
| Ribbons per Subunit | 16 (12 F x 4 Ribbon / 24 F x 8 Ribbon / 12 F x 4 Ribbon) |
| Fibers per Subunit | 288 |
| Mechanical Specifications | - |
| Max. Tensile Strength, Long-Term | 890N (200.08lbf) |
| Max. Tensile Strength, Short-Term | 2700N (606.98lbf) |
| Nominal Outer Diameter | 33mm (1.3in) |
| Min. Bend Diameter Operation | 990mm (38.98in) |
| Min. Bend Diameter Installation | 990mm (38.98in) |
| Optical Characteristics | - |
| Fiber Code | Z |
| Fiber Name | SMF-28 Ultra fiber |
| Fiber Type | Single-mode |
| Performance Option Code | 01 |
| Maximum Attenuation | 0.4 dB/km / 0.4 dB/km / 0.3 dB/km |
| Wavelengths | 1310 nm / 1383 nm / 1550 nm |
| Fiber Category | ITU-T G.657.A1 |
| Dimensions | - |
| Cable Weight | 783.21kg/km (526.29lb/1000 ft) |
