Designed Security ES4300A-K2-T1 | Exit Alarm, Barrel Key Switch wit...
Description
Description

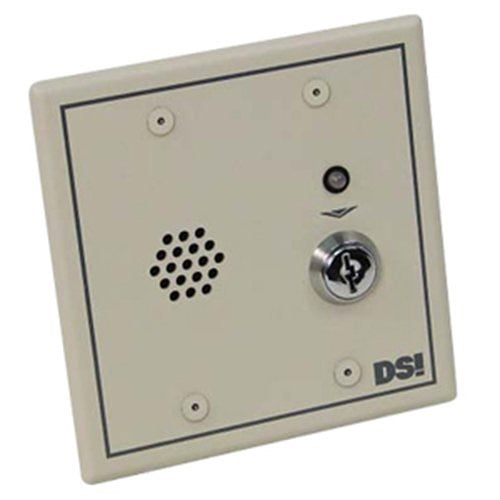

The ES4300A Series Exit Alarm (EA) is used to monitor secured doors. Typically located near the door, it monitors door position and activates a sounder and alarm contact when a forced entry occurs. Once triggered, the unit remains in alarm until reset by integral key switch or remotely through a dry contact. The unit will automatically reset if the door is closed and the adjustable auto reset time has expired. This time is user adjustable from 0 seconds to 60 seconds or manual key reset and starts at the moment the alarm occurs. The integral key switch may also be used to bypass the exit alarm, and allow passage for key holders.
Designed Security - ES4300A-K2-T1 - Features
- Alarm override
- Bi-color LED
- Interfaces with remote key switch
- Remote LED output (used with ES450)
- Adjustable shunt delay 0-20 seconds
- Tamper Switch
- Reset/Bypass key switch and remote input
- Encourages employees to maintain access control procedures
- Aesthetically pleasing design Compatible with all access controlsystems
Specifications
Specifications
Designed Security - ES4300A-K2-T1 - Specifications
| UPC Code | 806066100179 |
|---|---|
| Product Type | Security Alarm |
| Product Series | ES4300A |
| Sound Emission | 103 dB |
| Application/Usage | Door |
| Depth | 2.3" |
| Durability | Tamper |
| Height | 4.5" |
| Width | 4.6" |
| Color | Beige |
| Form Factor | Door Mount |
| Height (mm) | 114.3 |
| Width (mm) | 116.84 |
| Input Voltage | 24V DC |
| Power Source | AC, DC |
