Ditek DTK-2MHLP5F | Data & Signaling Circuit Surge Protector wi...
Regular price
$85.30
Unit price
Brand: Ditek
|
SKU:
10145253
Regular price
$85.30
Unit price
Description
Description

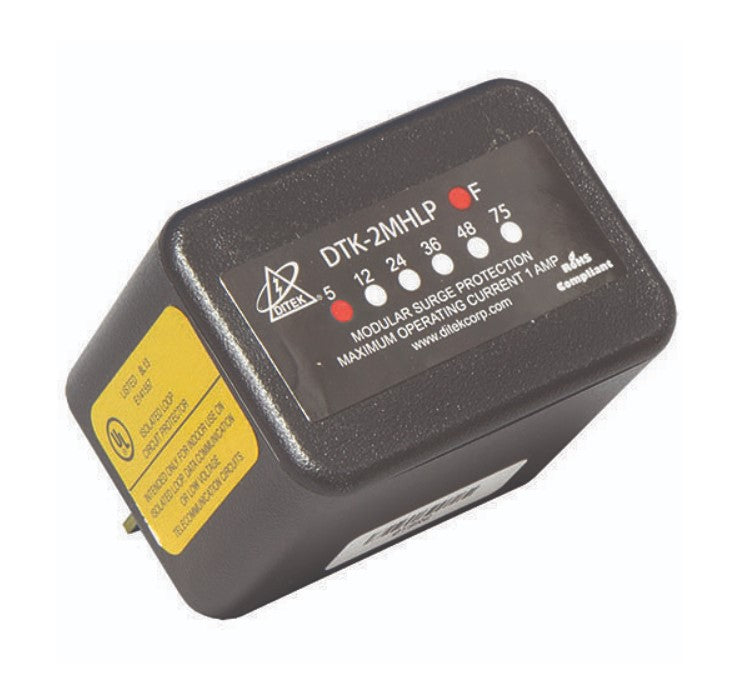

Ditek DTK-2MHLP5F | Data & Signaling Circuit Surge Protector with Snap-Track Base
The DTK-2MHLP5F provides surge protection for two 24V circuits in a field-replaceable module. Includes hardwired mounting base for easy installation.
Ditek - DTK-2MHLP5F - Features
- Protect two 24V pairs per module
- Multi-stage SAD technology provides the best possible protection
- Field-replaceable modules with hard-wired multi-base mounting system allows you to protect up to ten pairs with a common ground
- Exclusive load removal feature
- Six voltage levels available to protect all types of voice/data applications
- Hard-wired multi-base mounting system allows you to protect up to ten pairs with a common ground. See next page for base part numbers
- Suitable for use on both AC and DC circuits
- Design with a single point ground for fast
- Installation- saves time
- Voice/data applications
Specifications
Specifications
Ditek - DTK-2MHLP5F - Specifications
| UPC Code | 782980519436 |
|---|---|
| Brand Name | DITEK |
| Manufacturer | DITEK Corporation |
| NDAA Compliant | Yes |
| Product Name | Signaling Circuit Modular Surge Protection |
| Product Type | Alarm Control Panel Surge Protector Module |
| Weight (Approximate) (g) | 34.019 |
| Depth | 2.10" (53.34 mm) |
| Depth (mm) | 53.34 |
| Height | 1.90" (48.26 mm) |
| Height (mm) | 48.26 |
| Weight (Approximate) | 34 g |
| Width | 1.40" (35.56 mm) |
| Width (mm) | 35.56 |
| Input Voltage | 5V DC |
| Input Voltage (V DC) | 5 |
