Ditek DTK2MHLP24F | Data and Signaling Circuit Surge Protection Mod...
Regular price
$85.30
Unit price
Brand: Ditek
|
SKU:
823494
Regular price
$85.30
Unit price
Description
Description

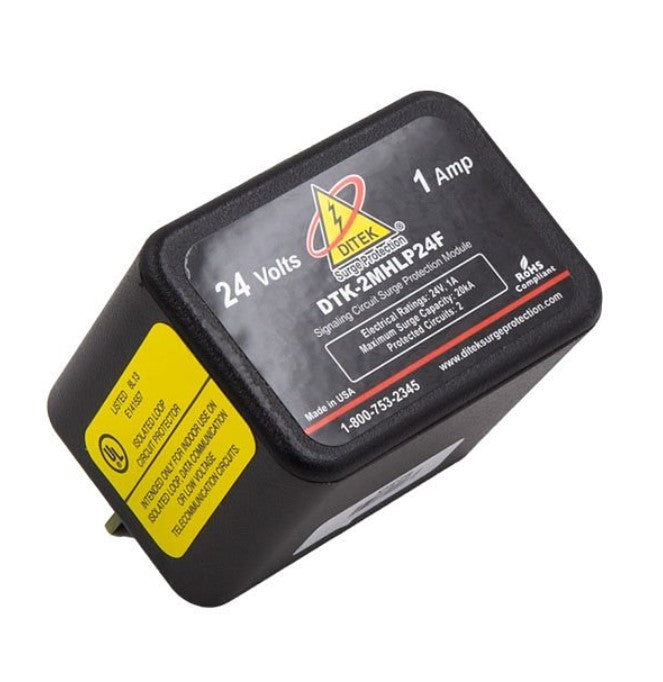

Ditek DTK2MHLP24F | Data and Signaling Circuit Surge Protection Module for 24V Circuits
The DTK-2MHLP24F provides surge protection with exclusive load removal technology for two 24V circuits. With required snap-track bases- protect up to 10 pairs with a common ground.
Ditek - DTK2MHLP24F - Features
- Protects two 24V pairs per module
- Exclusive load removal feature
- Multi-stage- SAD technology- hybrid design- provides the best possible protection
- Field replaceable- modular edge card connection design with a single point ground for fast installation- saves time
- Six voltage levels available to protect all types of voice/data applications
- Hard-wired multi-base mounting system allows you to protect up to ten pairs with a common ground. See next page for base part numbers
- Suitable for use on both AC and DC circuits
- Design with a single point ground for fast
- Installation- saves time
- Voice/data applications
Specifications
Specifications
Ditek - DTK2MHLP24F - Specifications
| UPC Code | 782980519474 |
|---|---|
| Brand Name | DITEK |
| NDAA Compliant | Yes |
| Product Name | Signaling Circuit Modular Surge Protection |
| Product Series | 2MHLP |
| Product Type | Alarm Control Panel Surge Protector Module |
| Weight (Approximate) (g) | 34.019 |
| Depth | 2.1" |
| Depth (mm) | 53.34 |
| Height | 1.9" |
| Height (mm) | 48.26 |
| Product Material | ABS Plastic |
| Weight (Approximate) | 1.20 oz |
| Width | 1.4" |
| Width (mm) | 35.56 |
| Input Voltage | 24V DC |
| Input Voltage (V DC) | 24 |
