Ditek PVP27BTPV | Fixed Camera Surge Protector for Twisted Pair Wir...
Regular price
$61.53
Unit price
Brand: Ditek
|
SKU:
747647
Regular price
$61.53
Unit price
Description
Description

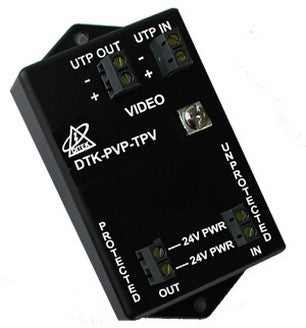

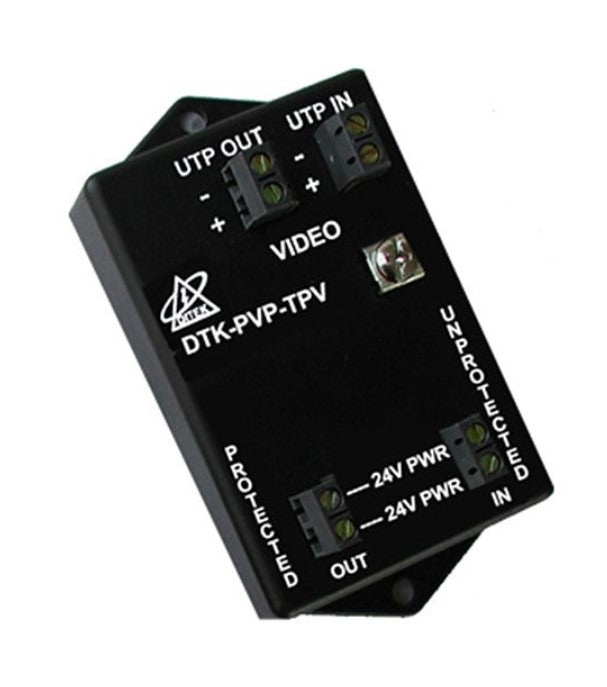

Ditek PVP27BTPV | Fixed Camera Surge Protector for Twisted Pair Wiring- Amp- 12/24V
DITEK's PVP27BTPV protects all the sensitive feeds to fixed cameras- not just the video cable. Simple to install- the PVP27BTPV protects 24 Volt power conductors and twisted pair video conductors in one compact package. With the lowest video let through voltage (and best surge protection) on the market- the PVP27BTPV provides ideal surge protection for today's sensitive- high-quality fixed cameras.
Ditek - PVP27BTPV - Features
- Protect standard Twisted Pair video connections
- Protects power and video conductors in one package
- 3 Amp- 24V circuit protects power feeds to camera- heater- blower- defroster
- 0.2 Amp circuit protects data and video
- Multi-stage- SAD technology- hybrid design provides the best possible protection
- Single point ground improves protection and speeds installation
- 5 Amp- 12/24V circuit protects power feeds to camera- heater- blower or defroster
- Single point gorund inproves protection and speeds installation
Specifications
Specifications
Ditek - PVP27BTPV - Specifications
| UPC Code | 782980504883 |
|---|---|
| Brand Name | DITEK |
| Manufacturer | DITEK Corporation |
| NDAA Compliant | Yes |
| Product Name | DTK-PVP27BTPV Surge Suppressor |
| Product Series | PVP |
| Product Type | Surge Suppressor/Protector |
| Weight (Approximate) (g) | 70.874 |
| Output Voltage | 1V DC- 24V DC |
| Output Voltage (V DC) | 45627 |
| Output Voltage (V) | 45627 |
| Video Band Pass | 0Hz - 2GHz |
| Modes Protected (Video) | Positive - G- Negative - G |
| Modes Protected (Power) | All Lines to Ground |
| Service Voltage (Video) | 2V peak - peak |
| Service Voltage (Power) | 24V AC/DC |
| Clamping (Video) | 6.8VDC |
| Clamping (Power) | 33VAC / 47VDC |
| Surge Current (Video) | 114A/pair (10/100s) |
| Surge Current (Power) | 2-000 Amps |
| Temperature Range | -40F to 158F (-40C to 70C) |
| Housing | ABS |
| Dimensions | 3.86 x 2.09 x 1.37 (98mm x 53mm x 35mm) |
| Weight | 2.56 ounces (73 grams) |
