Brand: Door King | SKU: 10284111

Doorking 1601-481 | Barrier Gate Operator with DC Convenience Open Option (1/2HP, 115VAC, 5.4AMP)

$4,379.32

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

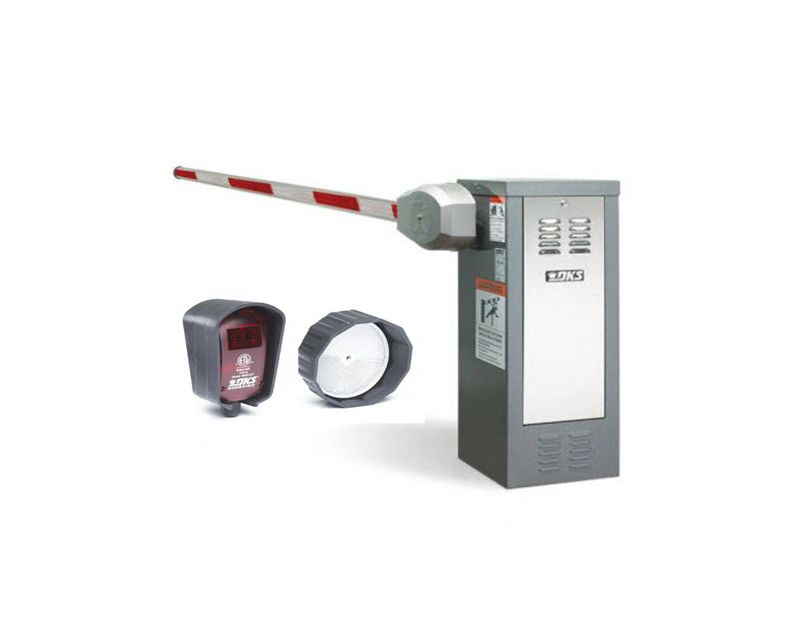

Doorking 1601-481 | Barrier Gate Operator with DC Convenience Open Option (1/2HP, 115VAC, 5.4AMP)

The 1601 operator is designed for single-lane (14 ft. max) vehicular traffic control in high-traffic commercial and industrial applications. The operator can be equipped with a DC convenience open package (optional) that will automatically raise the arm in the event of a power outage.

Arm And Hardware Kit Sold Separately

Doorking - 1601-481 - Features

Mechanical
Primary Reduction is provided by a 60:1 Worm Gear Reduction System running in a continuous oil bath.
The arm rotates 90° in approximately 2.5 seconds
G90 Galvanized Steel Housing- Gray
Fail-Secure Mechanical Release Method
360º gearbox rotation before the motor changes direction.
Left- or Right-Hand Mount
Gate Tracker
Reporting output provides operator data to a DKS 1833, 1835, 1837, or 1838 access control system.
Electrical
Magnetic Electronic Limit Controls
Auto-Close timer 1-23 seconds
P.A.M.S. (Perimeter Access Management System) sequence with a Slide or Swing Gate Operator
Up Input Memory Buffer
Down Memory Option
Multiple Up Commands
Port for plug-in Open (Up) Detector
Port for plug-in Reverse (Down) Detector
Built-in Power On/Off Switch
Programming Switches
Miscellaneous
Environmental: 10°F to 140°F (-12°C to 62°C)
DKS Pedestrian Protection System: The system reverses Barrier Arm if a person is detected, and lowers Barrier Arm if an unauthorized vehicle enters.
Compliant with UL 325 and 991. ETL Listed.

Specifications

Doorking - 1601-481 - Specifications

Brand Name	Doorking
Manufacturer Part Number	1601-481
Item Description	Barrier Gate Operator with DC Convenience Open Option (1/2HP, 115VAC, 5.4AMP)
Class of Operation	II, III, IV
Arm Type/ Max Length	Plastic / 12 ft (3.6 m) \| Wood / 14 ft (4.3 m) \| Round Aluminum / 14 ft (4.3 m) \| Octagonal Aluminum / 14 ft (4.3 m)
Dimensions (operator only)	15.25"W x 39.5"H x 14.75"D.
Motor	1/2 HP
Input	115 VAC, 60 Hz, 5.4A
Manufacturer's Warranty Policy	5-Year Limited Warranty
