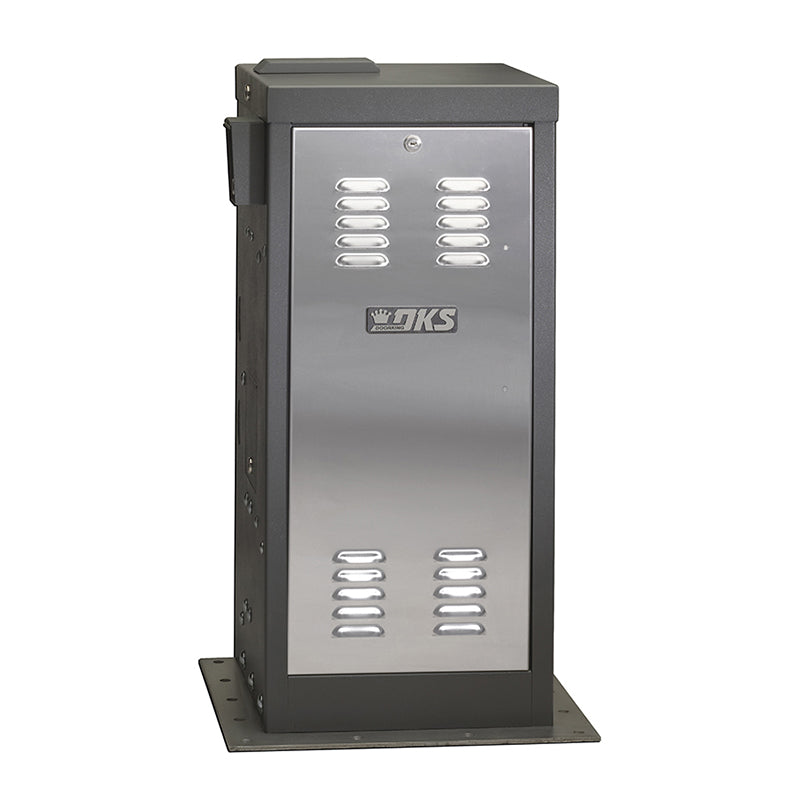

Doorking 9235-380 | Slide Gate Operator (3HP, 208V, 3 Phase, #60 Chain)

Doorking - 9235-380 - Features

• Mechanical
• Primary reduction is provided by a 10:1 gear running in a continuous oil bath
• The operator is shipped with Chain Brackets, Hardware, and 20 ft. of #60 Chain
• Adjustable Solid State Speed Control, 1/2 to 4 ft/sec
• Housing is G90 Galvanized Steel painted charcoal grey with stainless steel Access Door
• Gate Tracker
• Reporting output provides operator data to a DKS 1833, 1835, 1837, or 1838 access control system.
• Electrical
• Fail-Secure Operator. An electrical Interlock prevents the gate from starting during manual operation
• Slow Start / Slow Stop
• Adjustable Partial Open Limit
• Selectable Stop / Reverse Loop Function
• Anti-Tailgating Feature
• Solid-State Motor Relays
• Direct Driven Limit Switches for precise gate control
• Built-In Power and Reset Switches
• Two 115 VAC Convenience Outlets
• Ports for plug-in Open and Reverse Loop Detectors (DKS Loop Detectors only)
• Miscellaneous
• Environmental: 10°F to 140°F (-12°C to 62°C)
• Thermostatically Controlled Heater Kit recommended for colder environments
• Safety
• This Vehicular Slide Gate Operator is designed for Class III (Limited Access) and IV (Restricted Access) applications only and should never be used in applications serving the general public such as apartment complexes, gated communities, residential applications, and parking garages, etc.
• Includes
• 9200-135 Pedestal Mount
