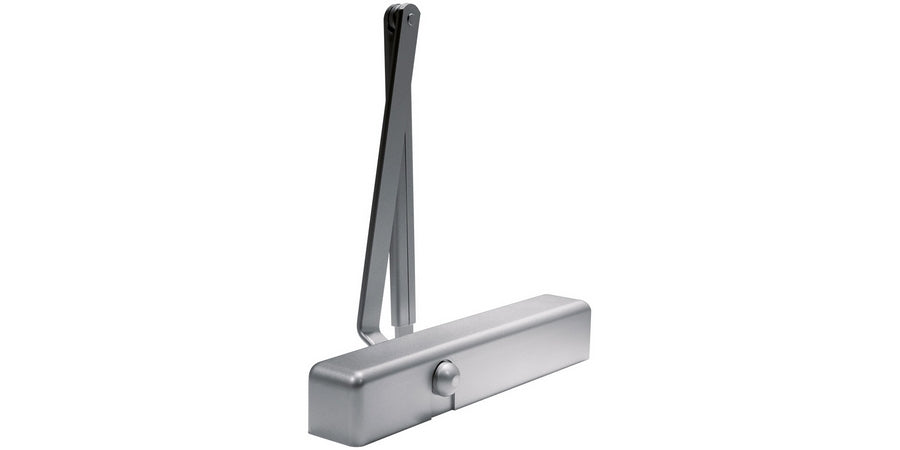

Dorma Architectural Hardware 8616 AF86P FC 689 | Door Closer, US28 Aluminum, Adjustable Size 1-6, ANSI Grade 1
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Dorma Architectural Hardware 8616 AF86P FC 689 | Door Closer, US28 ...
Description
Description
With features like the full range spring power adjustment, the 8600 Series closer provides the flexibility needed to meet the many demands of commeRCIal and institutional applications, including ADA barrier-free accessibility requirements. This door control also features a back check positioning adjustment for parallel arm applications, to maintain an ANSI back check range similar to regular and top jamb applications. The modern slim cover, flat form arm and architectural finishes provide the aesthetic qualities required of architectural-grade closers.
Specifications
Specifications
Dorma Architectural Hardware - 8616 AF86P FC 689 - Product Categories
- Security
- Access Control, Door Hardware and Locks
- Mechanical Door Hardware
- Door Closers
Dorma Architectural Hardware - 8616 AF86P FC 689 - Specifications
| Manufacturer Part Number | 8616 AF86P FC 689 |
|---|---|
| Manufacturer | Dorma Architectural Hardware |
| ADA Compliant | ADA COMPLIANT |
| ANSI Grade | ANSI Grade 1 |
| Arm Type | Regular (Non-Hold-Open) |
| Body Material | Aluminum |
| Closer Size | Adjustable 1 Through 6 |
| Fastener Type | Sex Nuts and Bolts |
| Finish | US28 Aluminum |
| Hole Centers Horizontal | 12 in. |
| Hole Centers Vertical | 3/4 in. |
| Mounting | Hinge Side-Mount, Parallel-Mount, Surface-Mount, Top Jamb-Mount |
| Product Type | Surface Applied |
| Special Rating | UL Listed |
| UL Listed | Yes |
| Warranty | 25 Year Limited |
