Brand: Eaton Power Quality
|
SKU:
494711

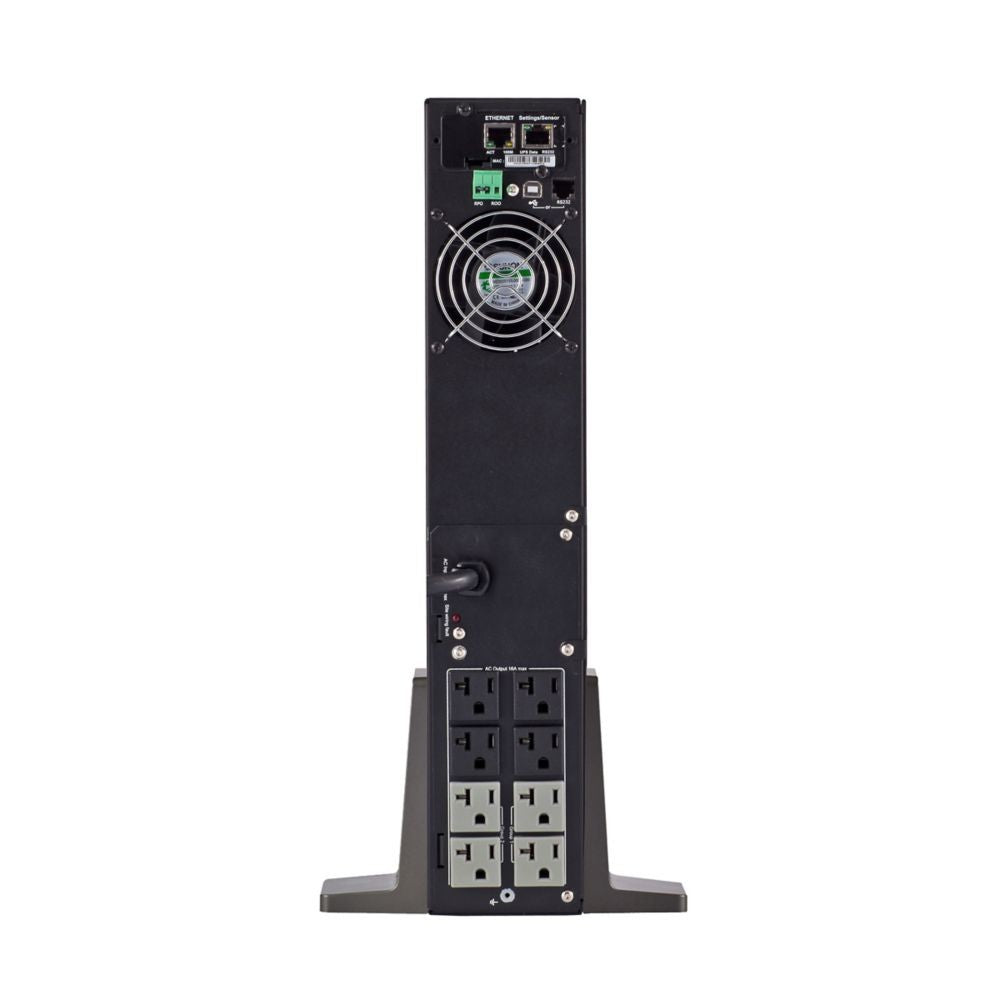

Eaton Power Quality 5P2200 | 5P UPS, 5P2200
Regular price
$1,832.28
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Eaton Power Quality 5P2200 | 5P UPS, 5P2200
Regular price
$1,832.28
Unit price
Brand: Eaton Power Quality
|
SKU:
494711
Regular price
$1,832.28
Unit price
Shipping calculated at checkout.
Description
Description
Eaton Power Quality 5P2200 | 5P UPS, 5P2200.
Specifications
Specifications
Eaton Power Quality - 5P2200 - Specifications
| Product Name | Eaton 5P UPS |
|---|---|
| Catalog Number | 5P2200 |
| UPC | 743172039637 |
| Product Length/Depth | 20.6 in |
| Product Height | 3.4 in |
| Product Width | 17.4 in |
| Product Weight | 65 lb |
| Warranty | 3 year on electronics, 3 year on batteries with registration |
| Compliances | FCC Part 15 Class A Subpart B Sections 15.107b , 15.109b FCC Part 15 |
| Certifications | UL 497A UL 1778 cUL Listed |
| Battery management | ABM technology (3-stage charging extends battery service life by 50% and provides advance warning for battery replacement) |
| Battery replacement | User replaceable |
| Battery type | Sealed, lead-acid |
| Extended battery capability | None; See Eaton 5PX UPS for extended runtimes options |
| Topology | Line-interactive |
| Wattage | 1920 W |
| VA rating | 1950 VA |
| Output waveform | Sine wave |
| Voltage | 120V |
| Output power factor | 0.98 |
| Output nominal voltage | 120V default (100/120/125V) |
| Output voltage range | 102-132 Vac |
| Input connection | 5-20P |
| Input cord length | 8 ft |
| Input nominal voltage | 120V default (100/110/120/127V) |
| Input voltage range | 89-151 Vac (adjustable to 70-153 Vac) |
| Nominal frequency | 50-60 Hz |
| Input frequency range | 47-70 Hz (50 Hz system), 56.5-70 Hz (60 Hz system), 40 Hz in low-sensitivity mode |
| Communication | 1 USB HID compliant port + 1 RS232 serial port and relay contacts (USB and RS232 ports cannot be used simultaneously) |
| Expansion slots | One slot; Gigabit Network Card (Network-M2) is optional |
| Software compatibility | Eaton Intelligent Power Manager |
| User interface | LCD graphical display |
| Altitude | Up to 10,000 ft (3000m) without de-rating |
| BTU Rating | Online: 305, Battery: 2047 |
| Noise level | <45 dB at 1 meter |
| Relative humidity | 20-95% non-condensing |
| Temperature range | 0° to 40°C (32° to 104°F) |
| Form factor | Tower |
| Efficiency | 97% |
