Brand: Eaton Power Quality
|
SKU:
518892
Eaton Power Quality 5P750 | 5P UPS, Tower, 750 Va, 600 W, 5-15P Input, Outputs, (8) 5-15R, 120V, True Sine Wave, Network Card Optional
Regular price
$668.99
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Eaton Power Quality 5P750 | 5P UPS, Tower, 750 Va, 600 W, 5-15P Inp...
Regular price
$668.99
Unit price
Brand: Eaton Power Quality
|
SKU:
518892
Regular price
$668.99
Unit price
Shipping calculated at checkout.
Description
Description
Eaton Power Quality 5P750 | 5P UPS, Tower, 750 Va, 600 W, 5-15P Input, Outputs, (8) 5-15R, 120V, True Sine Wave, Network Card Optional
Eaton 5P UPS, Tower, 750 VA, 600 W, 5-15P input, Outputs: (8) 5-15R, 120V, true sine wave, network card optional.
Specifications
Specifications
Eaton Power Quality - 5P750 - Specifications
| Type | Uninterruptible Power Supply |
|---|---|
| UNSPSC Code | 39121011 |
| Product Name | Eaton 5P UPS |
| Catalog Number | 5P750 |
| UPC | 743172042989 |
| Product Length/Depth | 13.6 in |
| Product Height | 9.1 in |
| Product Width | 5.9 in |
| Product Weight | 23.6 lb |
| Warranty | 3 year on electronics, 3 year on batteries with registration |
| Compliances | RoHS Compliant, CE Marked |
| Battery Management | ABM Technology (3-Stage Charging Extends Battery Service Life By 50% And Provides Advance Warning For Battery Replacement) |

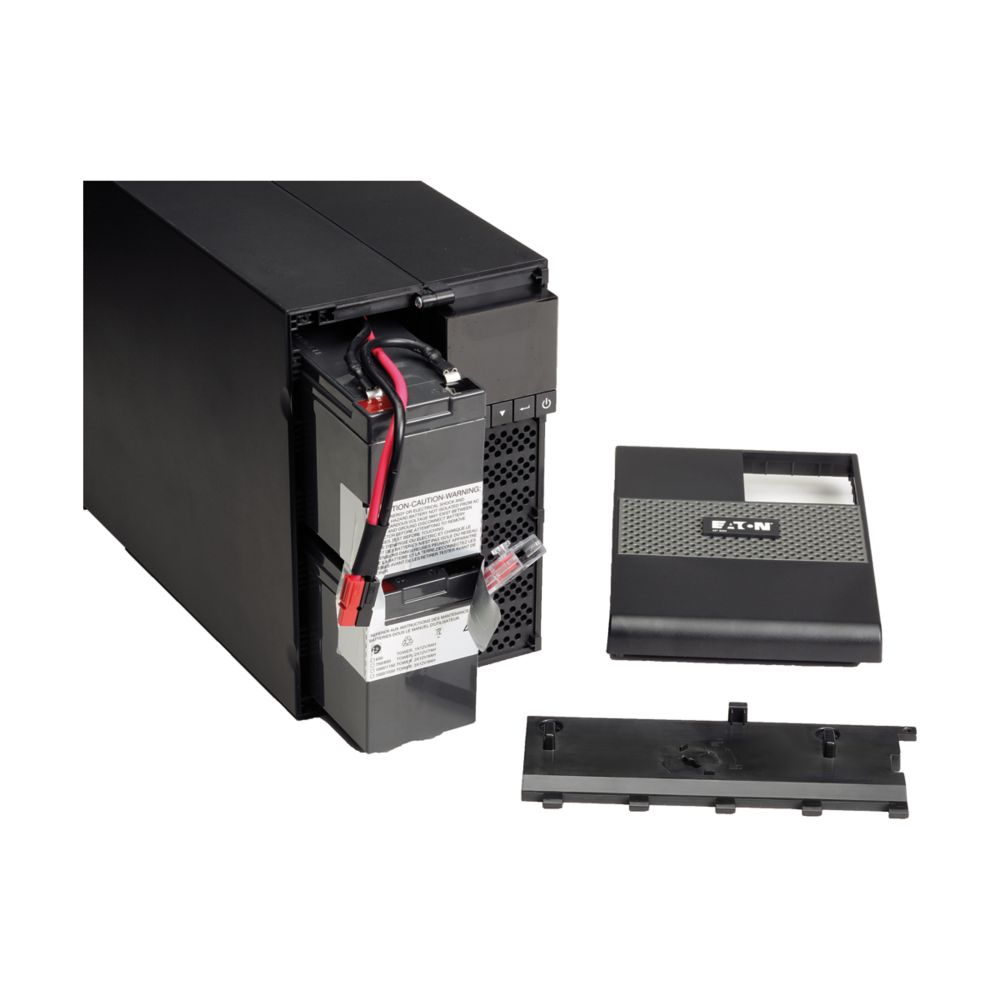

| Battery Replacement | User Replaceable |
| Battery Type | Sealed, Lead-Acid |
| Extended Battery Capability | None; See Eaton 5Px Ups For Extended Runtimes Options |
| Receptacle | (8) 5-15R |
| Topology | Line-Interactive |
| Wattage | 600 W |
| VA Rating | 750 VA |
| Output waveform | Sine wave |
| Voltage | 120V |
| Output power factor | 0.8 |
| Output Nominal Voltage | 120V Default (100/120/125V) |
| Output Voltage Range | 102-132 Vac |
| Output Frequency | 50/60 Hz |
| Input Connection | 5-15P |
| Input Cord Length | 6 ft |
| Input Nominal Voltage | 120V Default (100/110/120/127V) |
| Input voltage range | 89-151 Vac (adjustable to 70-153 Vac) |
| Nominal Frequency | 50-60 Hz |
| Software Compatibility | Eaton Intelligent Power Manager |
| User Interface | LCD Graphical Display |
| Altitude | Up to 10,000 ft (3000m) without de-rating |
| BTU Rating | Online: 82, Battery 389 |
| Noise level | <45 dB at 1 meter |
| Relative Humidity | 0-90% non-condensing |
| Temperature Range | 0° to 35°C (32° to 95°F) |
| Special Features | ROO/RPO: Rear terminal block connector for remote on/off and power off |
| Form Factor | Tower |
| Efficiency | 97% |
