Brand: Eaton Power Quality
|
SKU:
810682

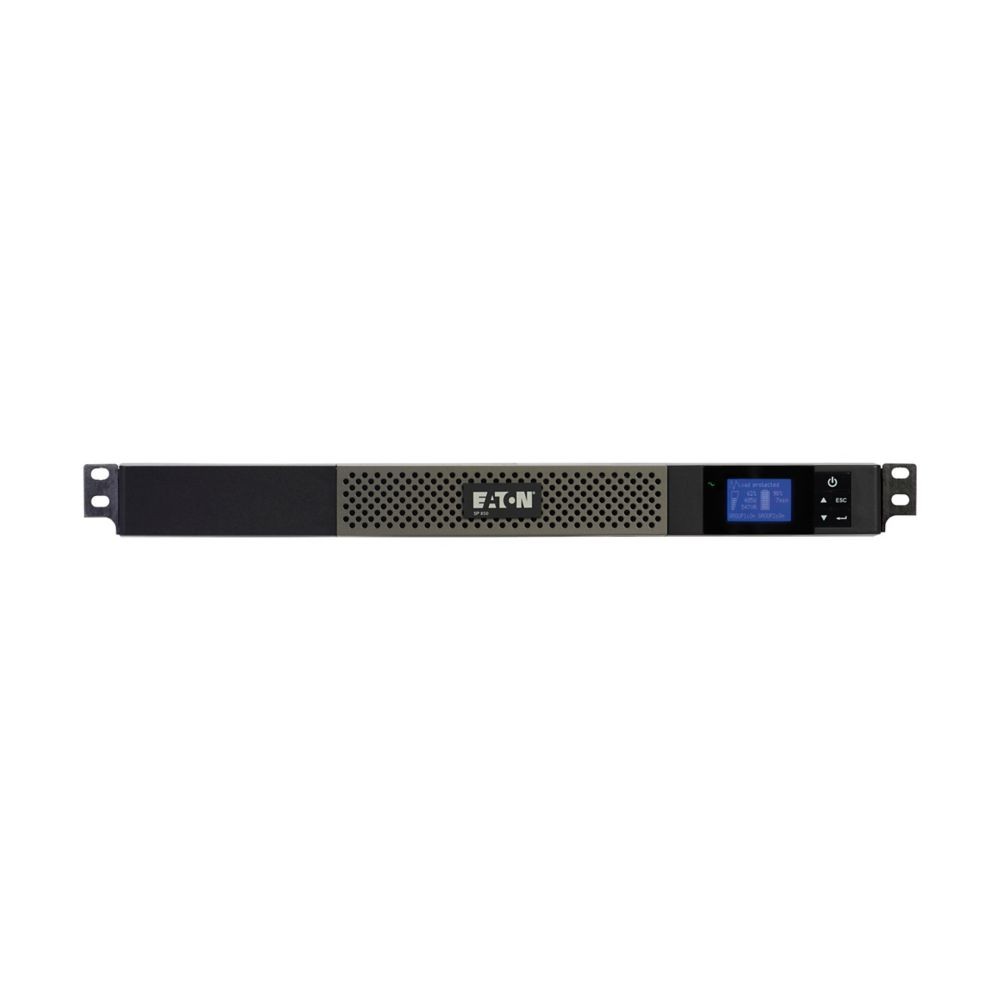

Eaton Power Quality 5P850GR | 5P UPS, 1U, 850 Va, 600 W, C14 Input, Outputs (4) C13, 230V, True Sine Wave, Network Card Optional
Regular price
$1,379.16
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Eaton Power Quality 5P850GR | 5P UPS, 1U, 850 Va, 600 W, C14 Input,...
Regular price
$1,379.16
Unit price
Brand: Eaton Power Quality
|
SKU:
810682
Regular price
$1,379.16
Unit price
Shipping calculated at checkout.
Description
Description
Eaton Power Quality 5P850GR | 5P UPS, 1U, 850 VA, 600 W, C14 input, Outputs: (4) C13, 230V, true sine wave, network card optional.
Specifications
Specifications
Eaton Power Quality - 5P850GR - Specifications
| Product Name | Eaton 5P UPS |
|---|---|
| Catalog Number | 5P850GR |
| UPC | 743172043078 |
| Product Length/Depth | 20 in |
| Product Height | 1.7 in |
| Product Width | 17.4 in |
| Product Weight | 30.4 lb |
| Warranty | 3 year on electronics, 3 year on batteries with registration |
| Compliances | CE Marked RoHS Compliant |
| Certifications | UL 497A NOM cTUVus UL 1778 cULus Listed IEC 62040-2 C1-C2 / EN 55024 / CISPR22 Class B / FCC part 15 Class B |
| Runtime graph | View runtime graph |
| Battery management | ABM technology (3-stage charging extends battery service life by 50% and provides advance warning for battery replacement) |
| Battery replacement | User replaceable |
| Battery type | Sealed, lead-acid |
| Extended battery capability | None; See Eaton 5PX UPS for extended runtimes options |
| Receptacle | (4) C13 |
| Topology | Line-interactive |
| Wattage | 600 W |
| VA rating | 850 VA |
| Output waveform | Sine wave |
| Voltage | 230V |
| Output power factor | 0.7 |
| Output nominal voltage | 230V default (200/208/220/230/240V) |
| Input connection | C14 |
| Input nominal voltage | 230V default (200/208/220/230/240V) |
| Input voltage range | 160-294 V (adjustable to 150 V-294 V) |
| Nominal frequency | 50-60 Hz |
| Input frequency range | 47-70 Hz (50 Hz system), 56.5-70 Hz (60 Hz system), 40-70 Hz in low-sensitivity mode |
| Input power factor | 1 |
| Communication | RS-232 (RJ45) ports; USB port as standard (HID). 6-foot RS-232 and USB cables included |
| Expansion slots | One slot; Gigabit Network Card (Network-M2) is optional |
| Software compatibility | Eaton Intelligent Power Manager |
| User interface | LCD graphical display |
| Altitude | Up to 10,000 ft (3000m) without de-rating |
| BTU Rating | Online: 82, Battery 389 |
| Noise level | <45 dB at 1 meter |
| Relative humidity | 0-90% non-condensing |
| Temperature range | 0° to 35°C (32° to 95°F) |
| Special features | ROO/RPO: Rear terminal block connector for remote on/off and power off |
| Form factor | Rack |
| Rack size | 1U |
