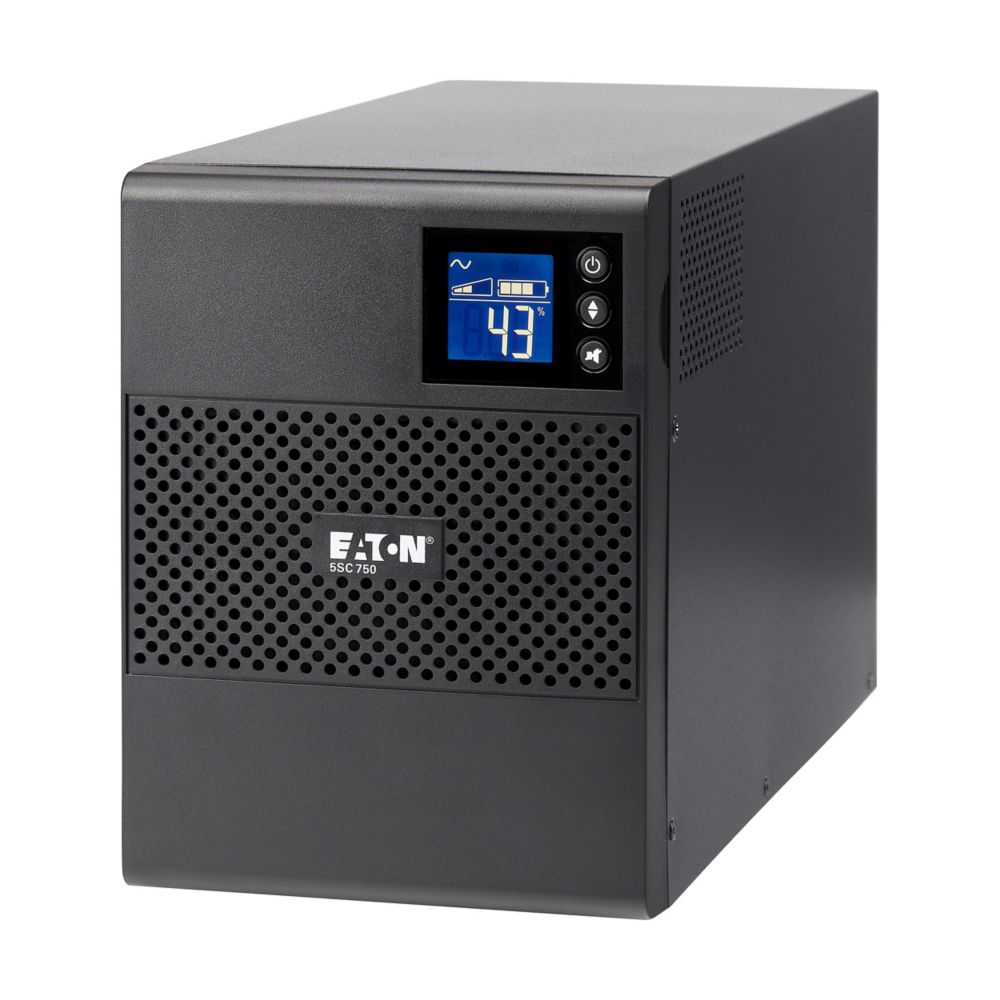

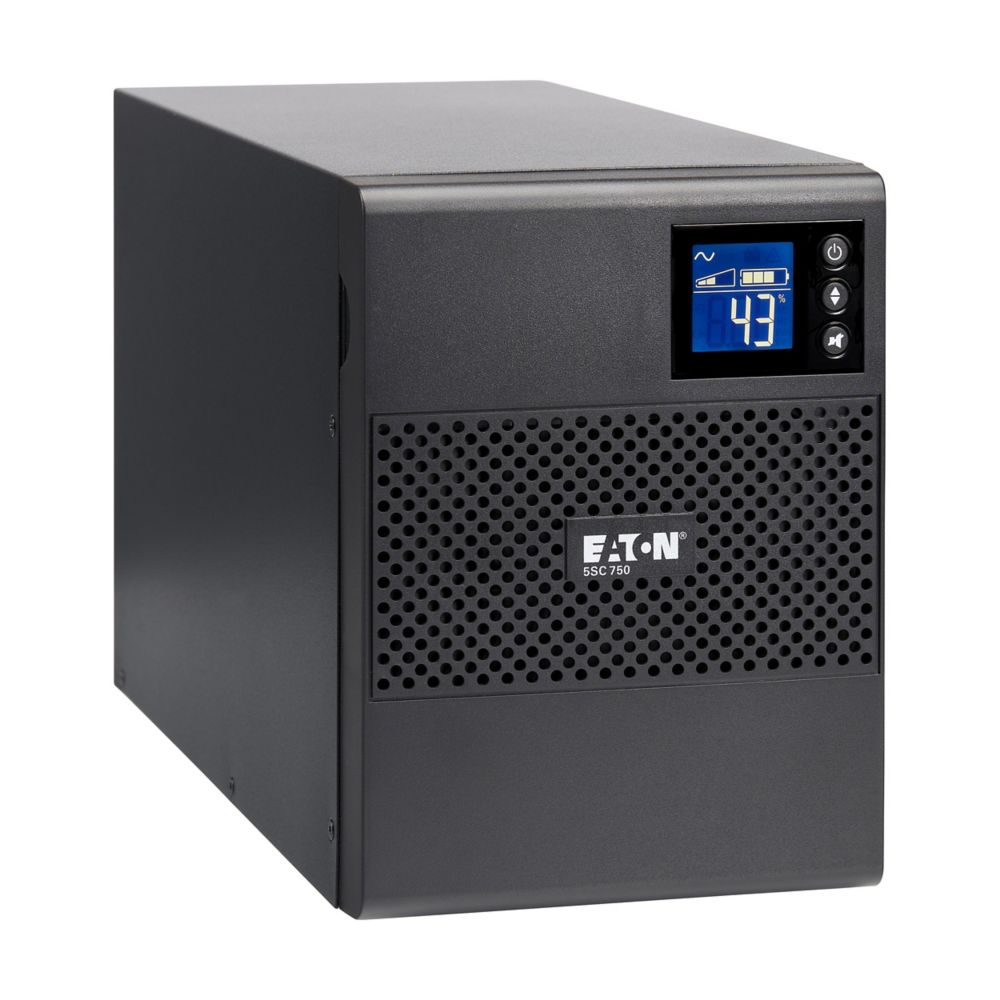

Eaton Power Quality 5SC750 | 5Sc UPS, 750 Va, 525 W, 5-15P Input, O...
Description
Description

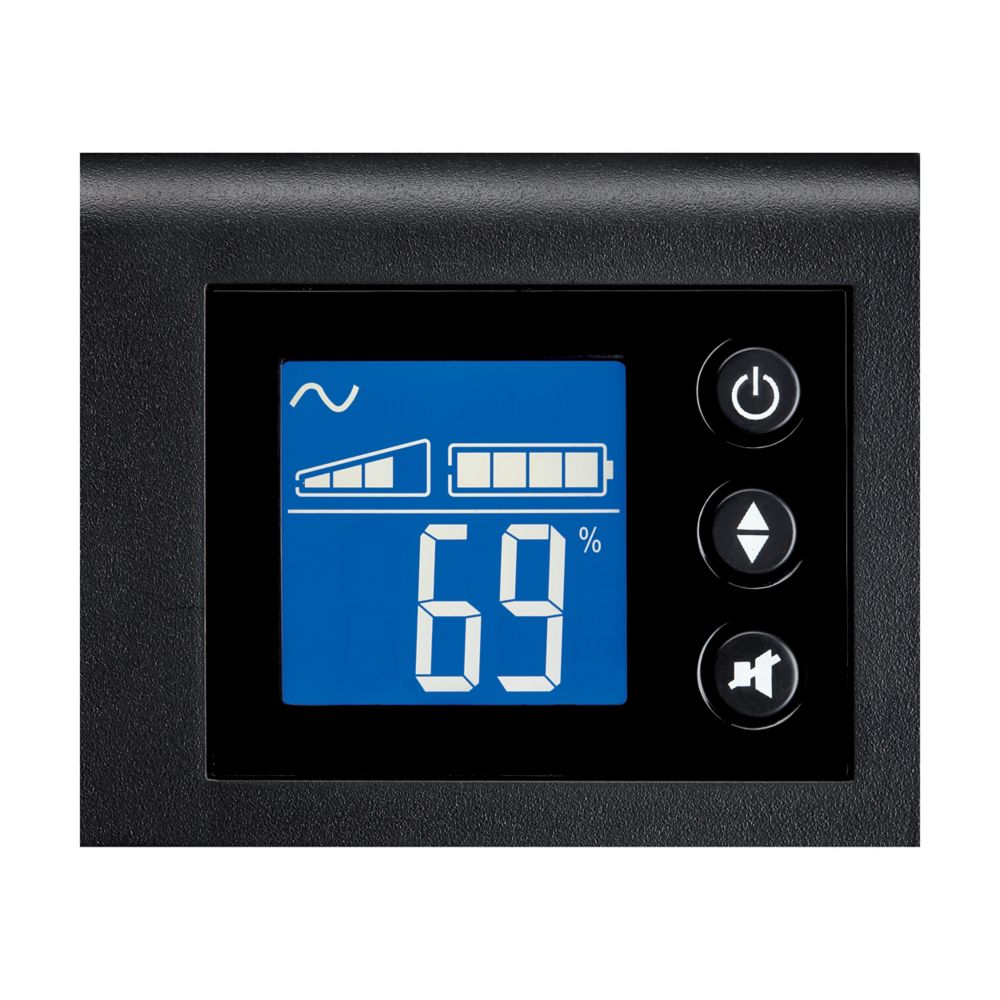

The Eaton 5SC pure sine wave UPS provides high-quality output voltage for wider compatibility with today?s active power factor corrected (PFC) power supplies in sensitive IT equipment. Without the use of its batteries, the 5SC UPS corrects a wide range of input voltage variations through continuous voltage regulation.The LCD interface provides clear status of key parameters and allows configuration for output voltage, the audible alarm and power input sensitivity.By pairing the 5SC pure sine wave UP S with the Eaton Intelligent Power Protector software, you can avoid data loss by gracefully shutting down your connected computer during an extended power outage.Applications: High-end desktop computers, gaming PCs, networking devices, kiosks, enterta inment systems, point-of-sale (POS) equipment, network-attached storage (NAS), servers.
Specifications
Specifications
Eaton Power Quality - 5SC750 - Specifications
| Type | Uninterruptible Power Supply |
|---|---|
| UNSPSC Code | 39121011 |
| Product Name | Eaton 5SC UPS |
| Catalog Number | 5SC750 |
| UPC | 743172045096 |
| Product Length/Depth | 13.4 in |
| Product Height | 8.2 in |
| Product Width | 5.9 in |
| Product Weight | 23.1 lb |
| Warranty | 3 year factory warranty with online product registration |
| Battery Management | ABM Technology (3-Stage Charging Extends Battery Service Life By 50% And Provides Advance Warning For Battery Replacement) |
| Extended Battery Capability | Not Available |

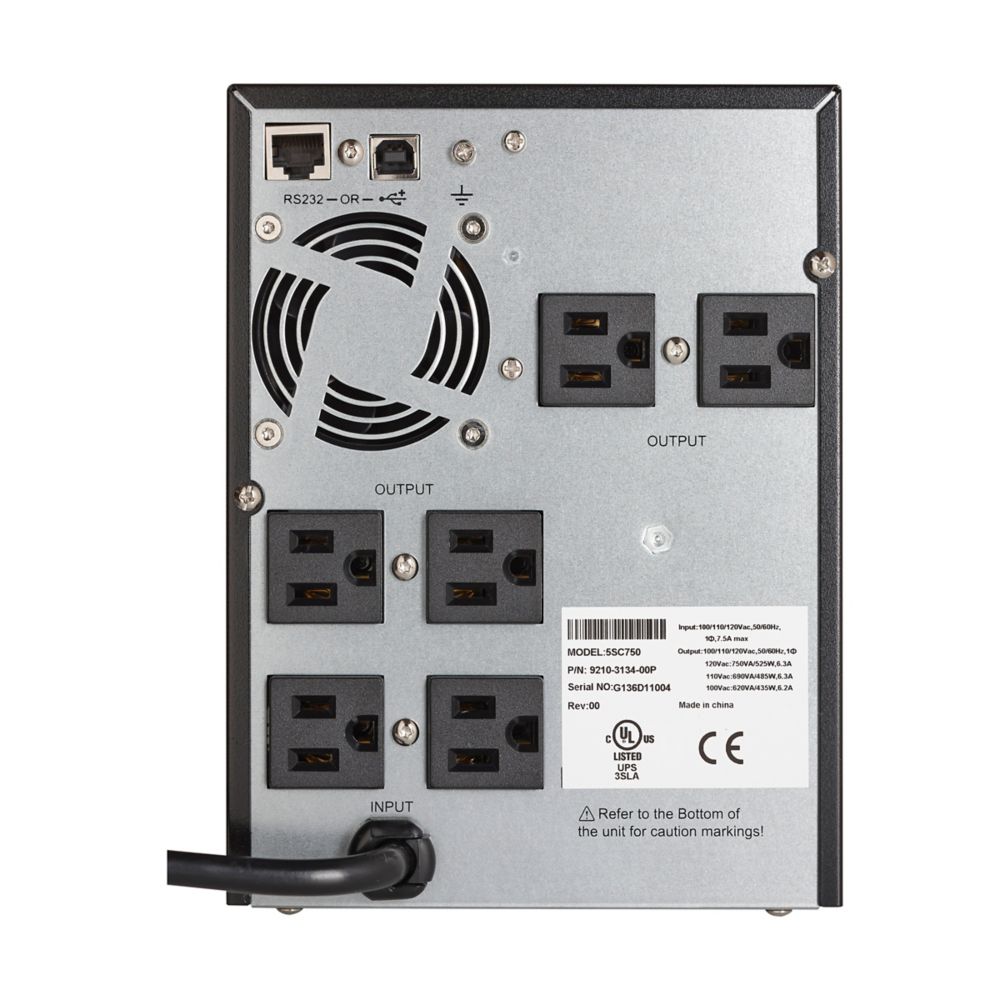

| Receptacle | (6) 5-15R |
| Output Nominal Voltage | 100/110/120V |
| VA Rating | 750 Va |
| Wattage | 525 W |
| Topology | Line-interactive |
| Input Connection | 5-15P |
| Input Nominal Voltage | 120V |
| Input Cord Length | 6 ft |
| Input voltage range | 96-144 Vac |
| Input Frequency range | 45-55 Hz (50 Hz system), 55-65 Hz (60 Hz system) |
| Software Compatibility | Eaton Intelligent Power Manager |
| Noise level | <40 dB at 1 meter |
| Temperature Range | 0° to 40°C (32° to 104°F) |
| Relative Humidity | 0-95% Non-Condensing |
| Color | Black |
| Efficiency | 94% |
| Surge protection | Yes |
