Brand: Eaton Power Quality
|
SKU:
884472

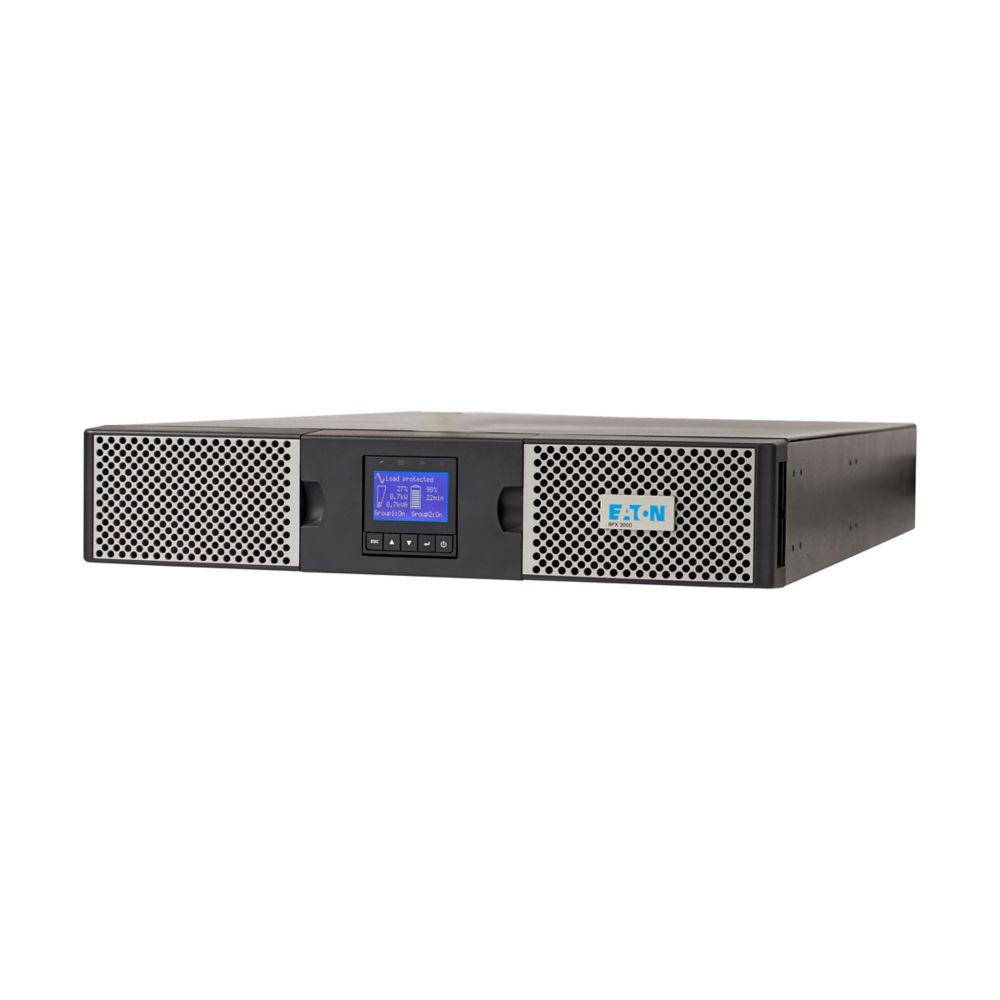

Eaton Power Quality 9PX1500RT | 9Px UPS, 2U, 1500 Va, 1350 W, 5-15P Input, Outputs, (8) 5-15R, 120V
Regular price
$2,355.79
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Eaton Power Quality 9PX1500RT | 9Px UPS, 2U, 1500 Va, 1350 W, 5-15P...
Regular price
$2,355.79
Unit price
Brand: Eaton Power Quality
|
SKU:
884472
Regular price
$2,355.79
Unit price
Shipping calculated at checkout.
Description
Description
Eaton Power Quality 9PX1500RT | 9Px UPS, 2U, 1500 Va, 1350 W, 5-15P Input, Outputs, (8) 5-15R, 120V
Eaton 9PX UPS, 2U, 1500 VA, 1350 W, 5-15P input, Outputs: (8) 5-15R, 120V.
Specifications
Specifications
Eaton Power Quality - 9PX1500RT - Specifications
| Size | 15000 |
|---|---|
| Type | Uninterruptible Power Supply |
| UNSPSC Code | 39121011 |
| Product Name | Eaton 9PX UPS |
| Catalog Number | 9PX1500RT |
| UPC | 743172081261 |
| Product Length/Depth | 17.7 in |
| Product Height | 3.4 in |
| Product Width | 17.3 in |
| Product Weight | 42.5 lb |
| Warranty | 3 year limited |
| Compliances | IEC 62040-2 Cat C1, CISPR22 Class B, FCC part 15 Class B, VCCI Class B |
| Battery Management | ABM Technology (3-Stage Charging Extends Battery Service Life By 50% And Provides Advance Warning For Battery Replacement) |
| Battery Replacement | Hot-Swappable Internal Batteries And Extended Battery Modules (Ebms) |
| Battery Type | Sealed, Lead-Acid |
| Extended Battery Capability | Add Up To 4 Extended Battery Modules (Ebm). Part Number 9Pxebm48Rt |

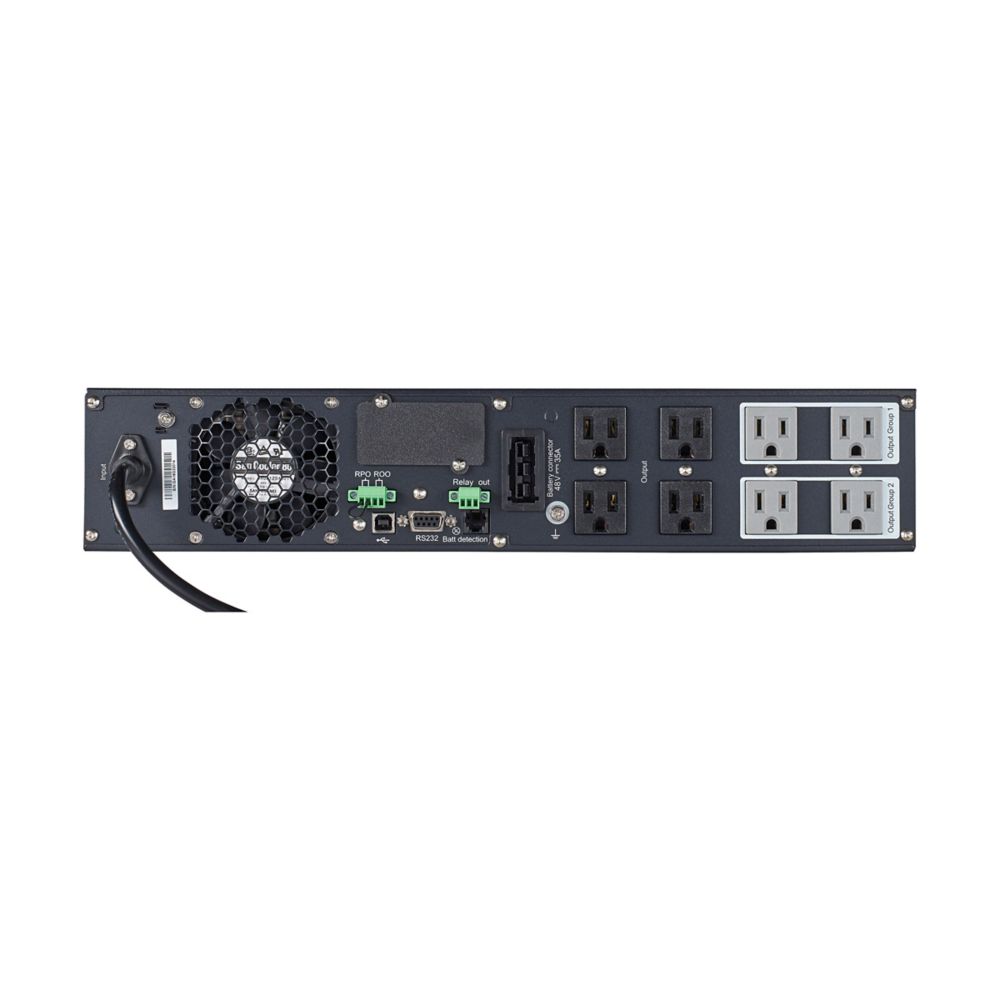

| Receptacle | (8) 5-15R |
| Topology | Online/Double-Conversion |
| Wattage | 1350 W |
| VA Rating | 1500 VA |
| Output waveform | True sine wave |
| Voltage | 120V |
| Output power factor | 0.9 |
| Output Nominal Voltage | 120V Default (100/110/120/125V) |
| Output Voltage Range | ±1% steady-state |
| Output Frequency | 50/60 Hz |
| Input Connection | 5-15P |
| Input Cord Length | 8 ft |
| Input Nominal Voltage | 120V Default (100/110/120/125V) |
| Input Frequency range | 60 Hz: 50–70 Hz, 50 Hz: 40–60 Hz |
| Input power factor | >0.99 typical |
| Software Compatibility | Intelligent Power Software Suite |
| User Interface | Graphical display, 5-button programmable menu |
| Altitude | 0-1500m (0° to 40°C), 1500-3000m (0° to 35°C) |
| BTU Rating | Online: 512, Battery: 897 |
| Noise level | <40 dB at 1 meter |
| Relative Humidity | 0-96% non-condensing |
| Temperature Range | 0° to 40°C (32° to 104°F) |

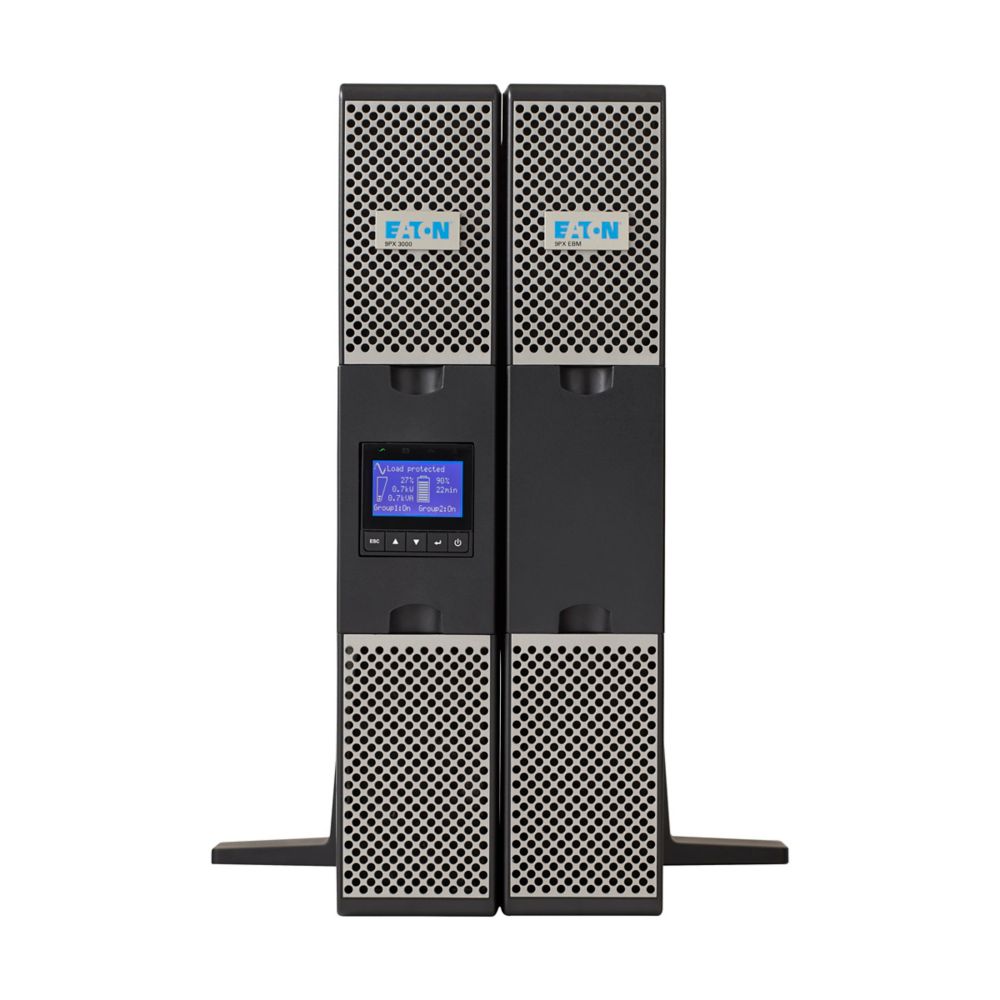

| Form Factor | Rack/Tower |
| Rack Size | 2U |
| Rack Mounting Kit | Yes |
| Efficiency | 90% |
