Brand: Eaton Power Quality
|
SKU:
810669

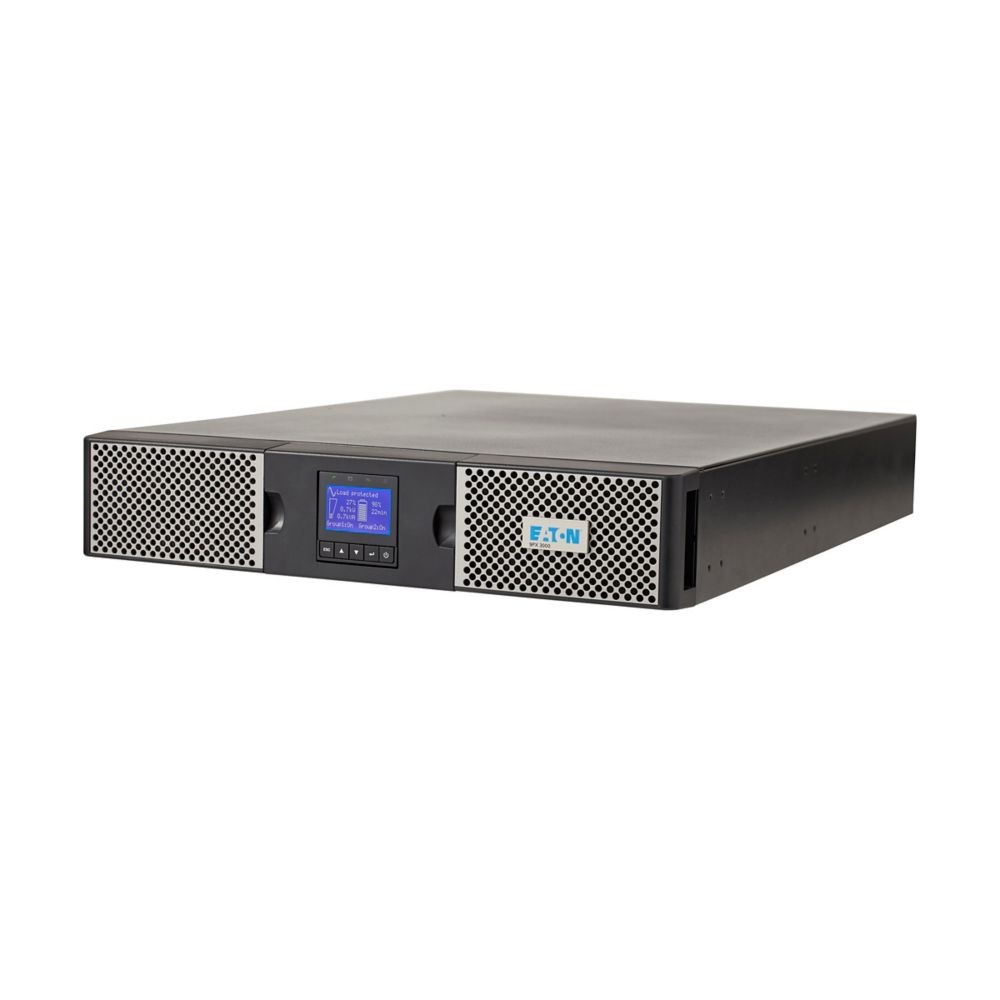

Eaton Power Quality 9PX3000GRT | 9PX UPS, 2U, 3000 Va, 3000 W, L6-20P Input, 208V, Outputs (8) C13, (2) C19
Regular price
$5,069.65
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Eaton Power Quality 9PX3000GRT | 9PX UPS, 2U, 3000 Va, 3000 W, L6-2...
Regular price
$5,069.65
Unit price
Brand: Eaton Power Quality
|
SKU:
810669
Regular price
$5,069.65
Unit price
Shipping calculated at checkout.
Description
Description
Eaton Power Quality 9PX3000GRT | 9PX UPS, 2U, 3000 VA, 3000 W, L6-20P input, 208V, Outputs: (8) C13, (2) C19.
Specifications
Specifications
Eaton Power Quality - 9PX3000GRT - Specifications
| Product Name | Eaton 9PX UPS |
|---|---|
| Catalog Number | 9PX3000GRT |
| UPC | 743172081308 |
| Product Length/Depth | 23.8 in |
| Product Height | 3.4 in |
| Product Width | 17.3 in |
| Product Weight | 60.4 lb |
| Warranty | 3 year limited |
| Compliances | IEC 62040-2 Cat C1 CISPR22 Class B FCC part 15 Class B CE Marked |
| Certifications | cULus Listed ENERGY STAR certified |
| Runtime graph | View runtime graph |
| Battery management | ABM technology (3-stage charging extends battery service life by 50% and provides advance warning for battery replacement) |
| Battery replacement | Hot-swappable internal batteries and extended battery modules (EBMs) |
| Battery type | Sealed, lead-acid |
| Extended battery capability | Add up to 4 extended battery modules (EBM). Part number 9PXEBM72RT |
| Receptacle | (8) C13, (2) C19 |
| Topology | Online/Double-conversion |
| Wattage | 3000 W |
| VA rating | 3000 VA |
| Output waveform | True sine wave |
| Voltage | 208 V |
| Output power factor | 1 |
| Output nominal voltage | 208V default (200/208/220/230/240V) |
| Input connection | L6-20P |
| Input cord length | 6 ft detachable |
| Input nominal voltage | 208V default (200/208/220/230/240V) |
| Input frequency range | 60 Hz: 50–70 Hz, 50 Hz: 40–60 Hz |
| Input power factor | >0.99 typical |
| Communication | RS-232 (RJ45), USB (HID) |
| Expansion slots | (1) Mini-Slot (MS) expansion port. The following optional connectivity cards may be ordered separately.Gigabit Network Card part number: NETWORK-M3Modbus card part number: INDGW-M2Relay card part number: RELAY-MS |
| Software compatibility | Intelligent Power Software Suite |
| User interface | Graphical display, 5-button programmable menu |
| Altitude | 0-1500m (0° to 40°C), 1500-3000m (0° to 35°C) |
| BTU Rating | Online: 513, Battery: 741 |
| Noise level | <47 dB at 1 meter |
| Relative humidity | 0-96% non-condensing |
| Temperature range | 0° to 40°C (32° to 104°F) |
| Form factor | Rack/tower |
| Rack size | 2U |
| Rack mounting kit | Yes |
| Efficiency | 93% |
| Package contents | 9PX3000GLRT UPS, Input cable4-post rail kit, Safety manual, User manual, Tower pedestals, RS-232 serial cable, USB cable, Intelligent Power Software Suite CD |
