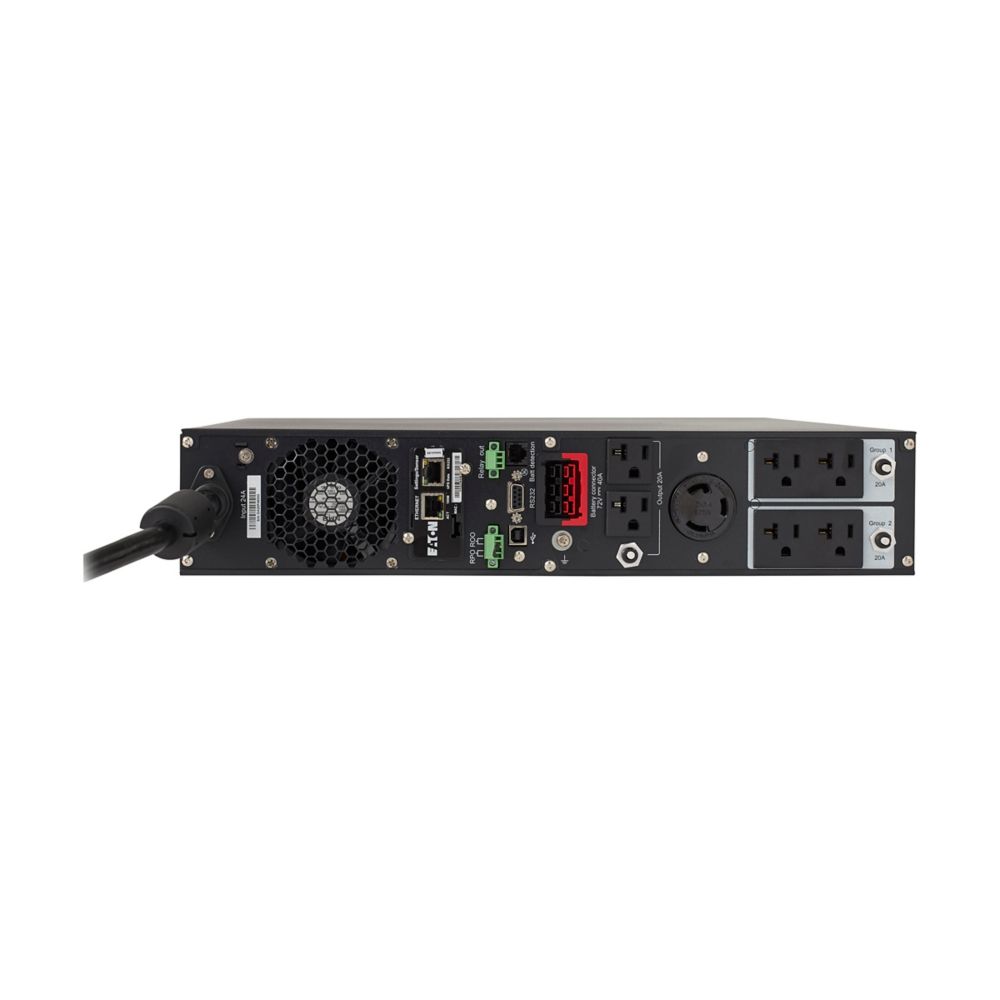

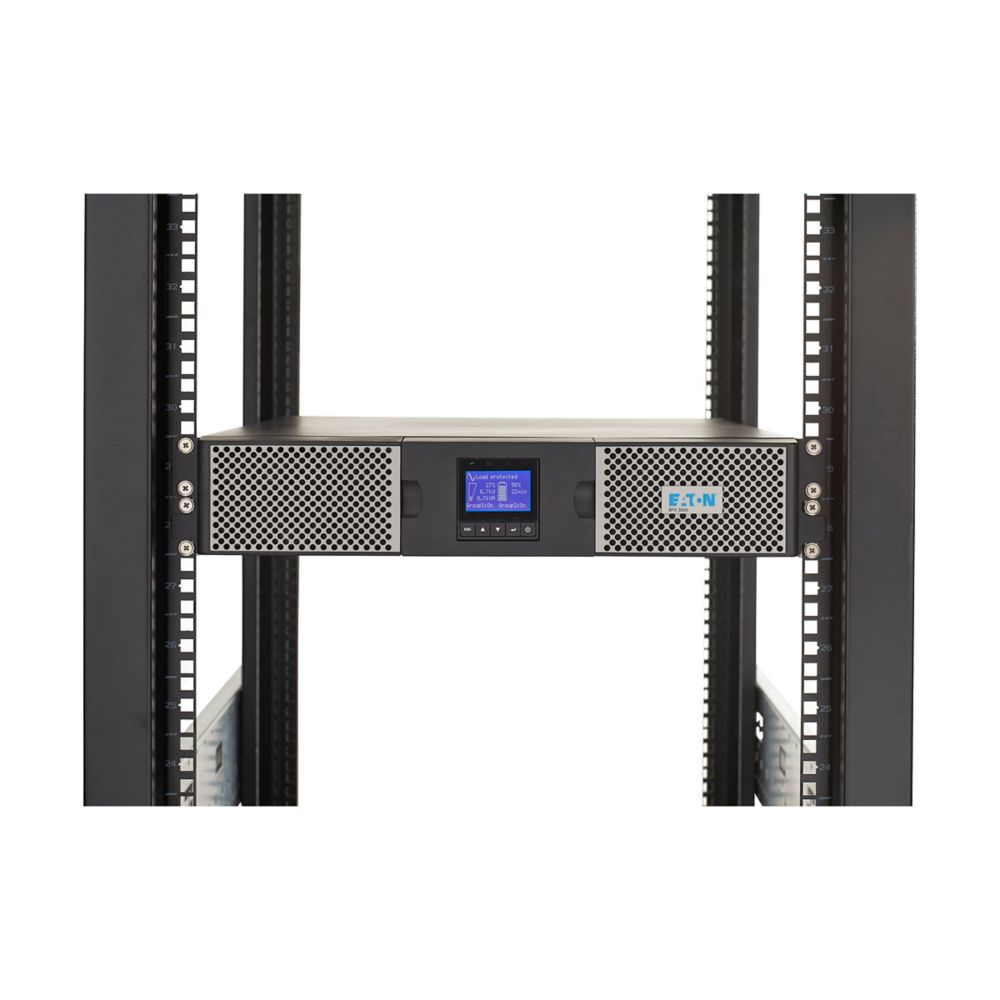

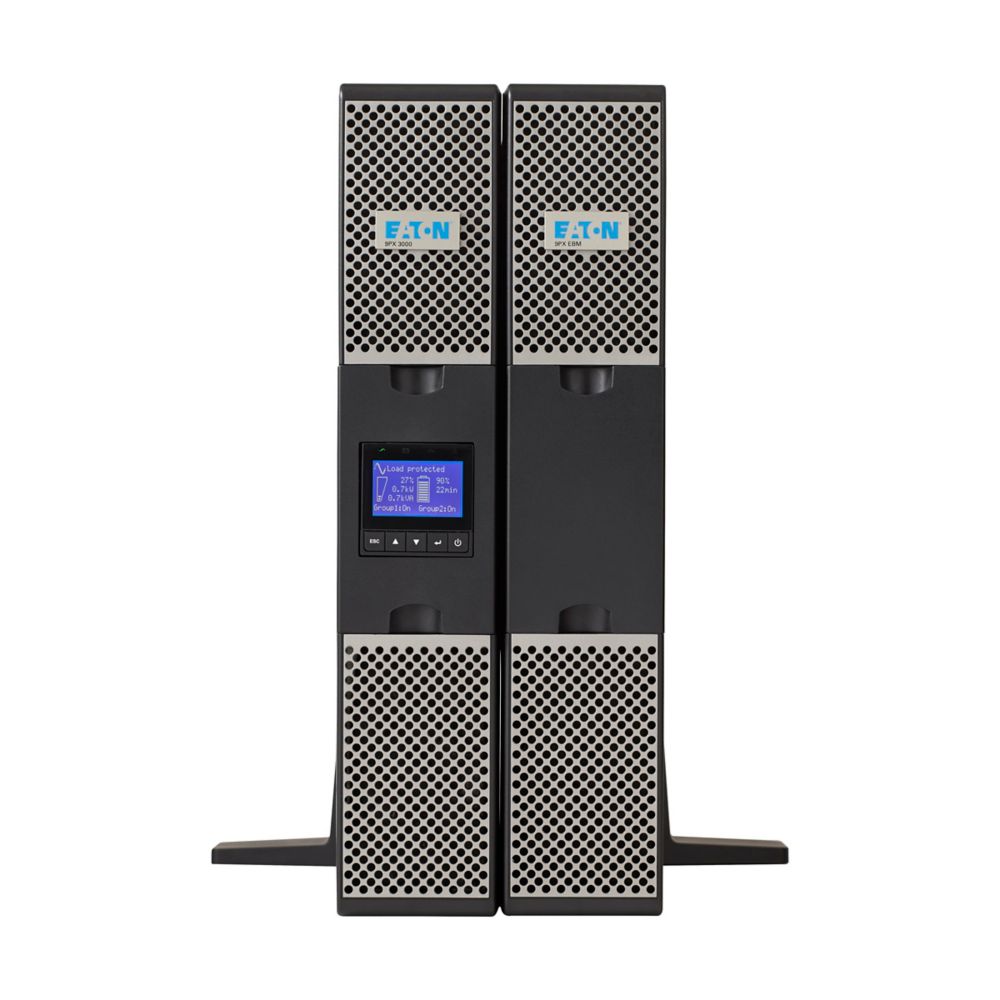

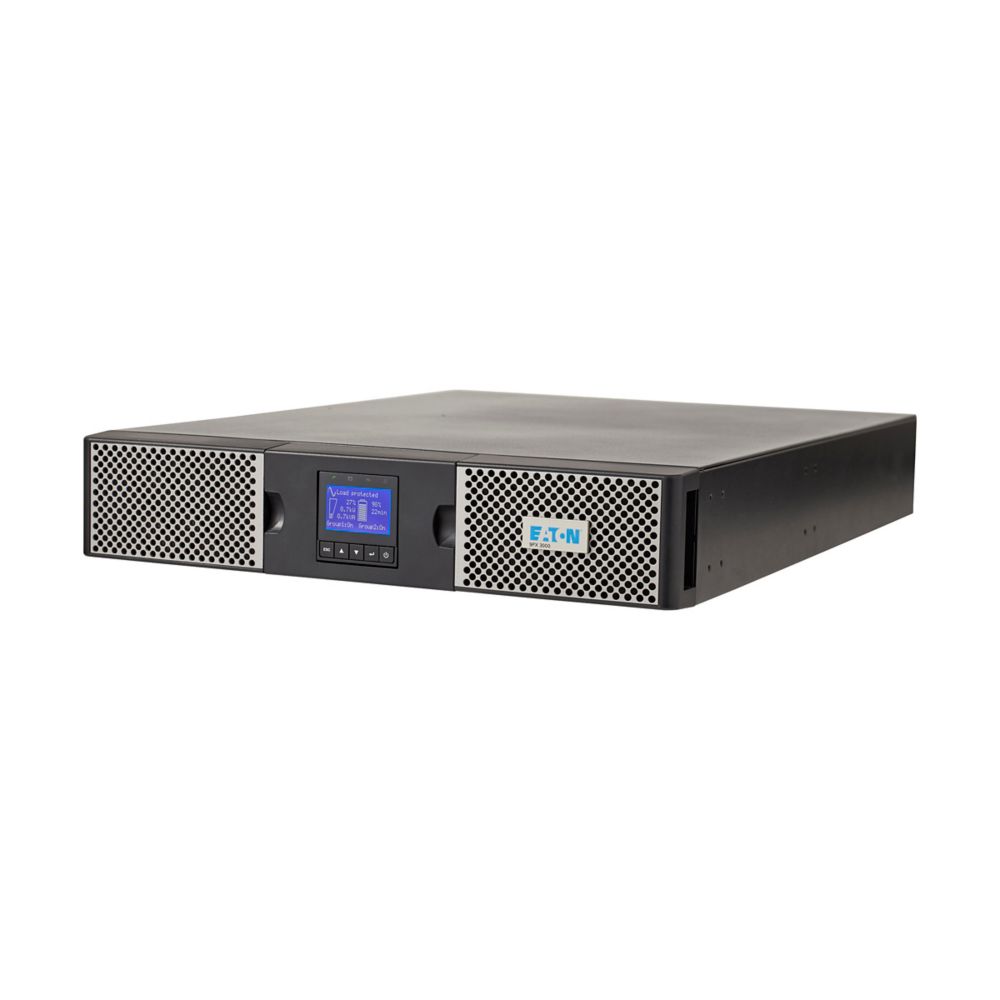

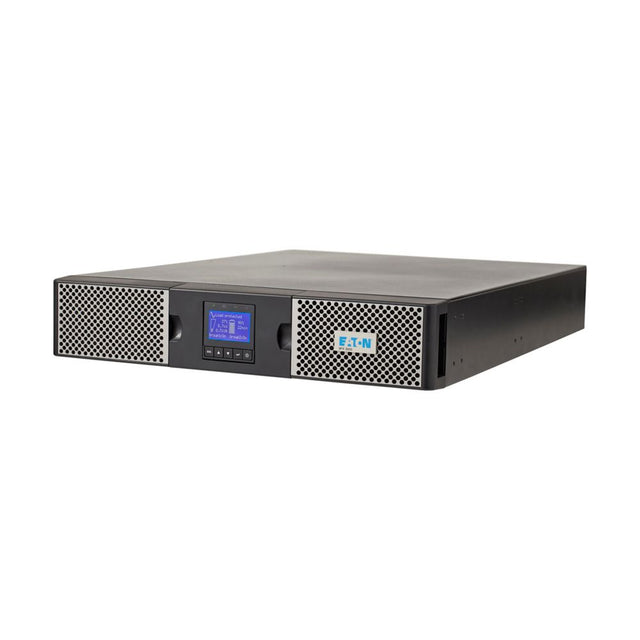

Eaton Power Quality 9PX3000RT | 9Px UPS, 2U, 3000 Va, 2700 W, L5-30P Input, Outputs, (6) 5-20R, (1) L5-30R, 120V
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Eaton Power Quality 9PX3000RT | 9Px UPS, 2U, 3000 Va, 2700 W, L5-30...
Description
Description
The Eaton 9PX is a proven, best-in-class online UPS featuring ABM technology, which extends battery service life up to 50 percent. With double-conversion topology for constant power conditioning and battery packs for extended runtime, the 9PX tower/rac kmount UPS is built for scalable deployment and features a graphical LCD interface. Select 9PX UPS models are bundled with the Eaton Gigabit Network card, the first in the industry to comply with both UL and IEC cybersecurity standards.To complete your backup power solution, pair your 9PX with the Eaton Intelligence Platform for seamless management of your connected equipment. Applications: IT, edge networks, medical/healthcare, universities, K-12, industrial automation, harsh electrical environments.
Specifications
Specifications
Eaton Power Quality - 9PX3000RT - Specifications
| Type | Uninterruptible Power Supply |
|---|---|
| UNSPSC Code | 39121011 |
| Product Name | Eaton 9PX UPS |
| Catalog Number | 9PX3000RT |
| UPC | 743172081285 |
| Product Length/Depth | 23.8 in |
| Product Height | 3.4 in |
| Product Width | 17.3 in |
| Product Weight | 63.1 lb |
| Warranty | 3 year on electronics, 2 year on battery |
| Compliances | IEC 62040-2 Cat C1, CISPR22 Class B, FCC part 15 Class B, VCCI Class B, CE Marked |
| Battery Management | ABM Technology (3-Stage Charging Extends Battery Service Life By 50% And Provides Advance Warning For Battery Replacement) |
| Battery Replacement | Hot-Swappable Internal Batteries And Extended Battery Modules (Ebms) |
| Battery Type | Sealed, Lead-Acid |
| Extended Battery Capability | Add Up To 4 Extended Battery Modules (Ebm). Part Number 9Pxebm72Rt |
| Receptacle | (6) 5-20R, (1) L5-30R |
| Topology | Online/Double-Conversion |
| Wattage | 2700 W |
| VA Rating | 3000 VA |
| Output waveform | True sine wave |
| Voltage | 120V |
| Output power factor | 0.9 |
| Output Nominal Voltage | 120V Default (100/110/120/125V) |
| Output Voltage Range | ±1% steady-state |
| Output Frequency | 50/60 Hz |
| Input Connection | L5-30P |
| Input Cord Length | 8 ft |
| Input Nominal Voltage | 120V Default (100/110/120/125V) |
| Input Frequency range | 60 Hz: 50–70 Hz, 50 Hz: 40–60 Hz |
| Input power factor | >0.99 typical |
| Software Compatibility | Intelligent Power Software Suite |
| User Interface | Graphical display, 5-button programmable menu |
| Altitude | 0-1500m (0° to 40°C), 1500-3000m (0° to 35°C) |
| BTU Rating | Online: 844, Battery: 1462 |
| Noise level | <47 dB at 1 meter |
| Relative Humidity | 0-96% non-condensing |
| Temperature Range | 0° to 40°C (32° to 104°F) |
| Form Factor | Rack/Tower |
| Rack Size | 2U |
| Rack Mounting Kit | Yes |
| Efficiency | 91% |
