Brand: Eaton Power Quality
|
SKU:
512957

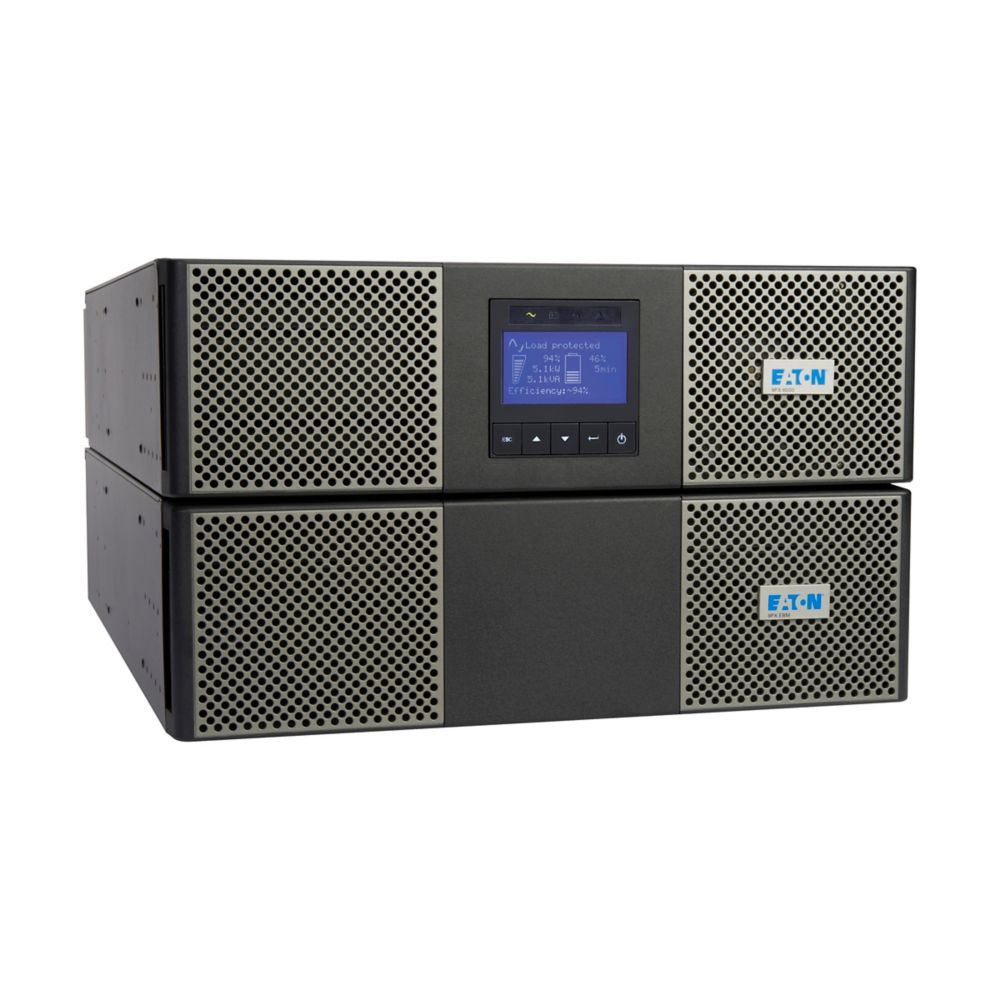

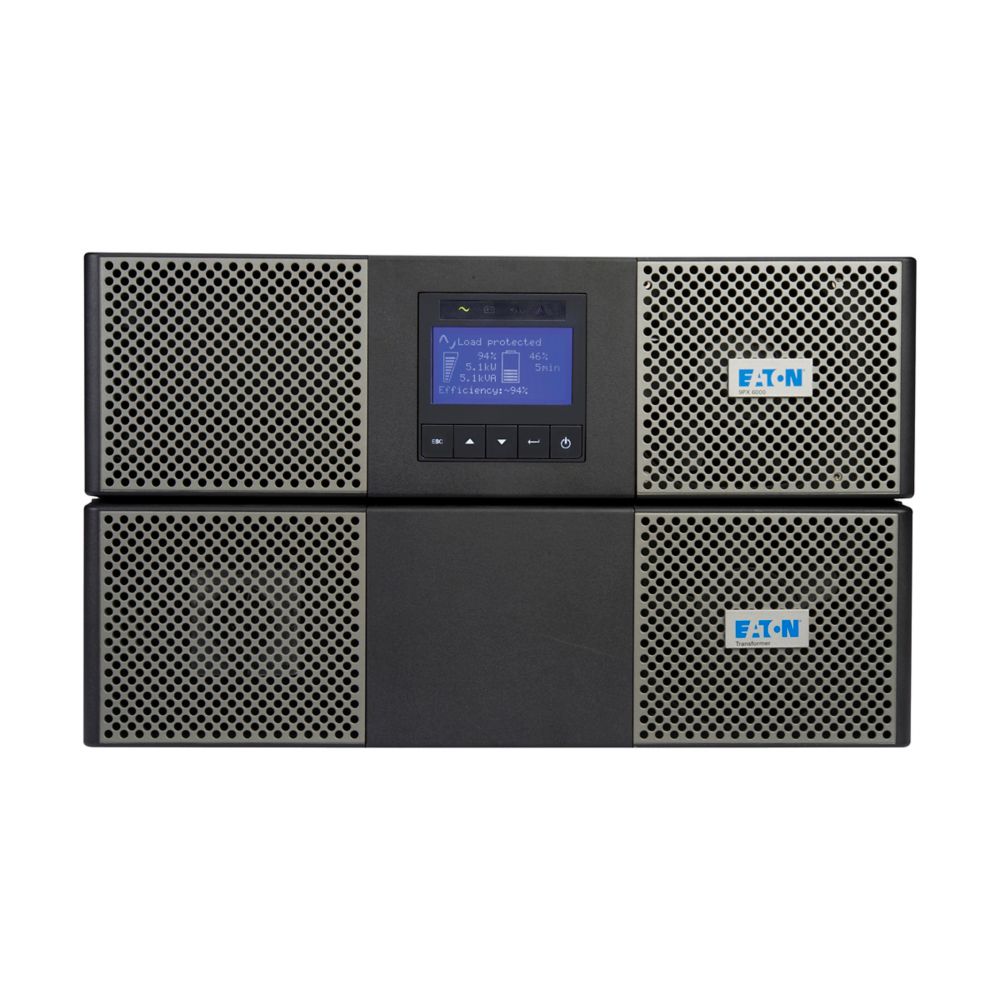

Eaton Power Quality 9PX5KTF5 | 9Px UPS, Network Card Included, 6U, 5000 Va, 4500 W, L6-30P Input, Outputs, (18) 5-20R, (2) L6-20R, (1) L6-30R, 208V
Regular price
$8,872.52
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Eaton Power Quality 9PX5KTF5 | 9Px UPS, Network Card Included, 6U, ...
Regular price
$8,872.52
Unit price
Brand: Eaton Power Quality
|
SKU:
512957
Regular price
$8,872.52
Unit price
Shipping calculated at checkout.
Description
Description
Eaton Power Quality 9PX5KTF5 | 9Px UPS, Network Card Included, 6U, 5000 Va, 4500 W, L6-30P Input, Outputs, (18) 5-20R, (2) L6-20R, (1) L6-30R, 208V
Eaton 9PX UPS, Network card included, 6U, 5000 VA, 4500 W, L6-30P input, Outputs: (18) 5-20R, (2) L6-20R, (1) L6-30R, 208V.
Specifications
Specifications
Eaton Power Quality - 9PX5KTF5 - Specifications
| Type | Uninterruptible Power Supply |
|---|---|
| UNSPSC Code | 39121011 |
| Product Name | Eaton 9PX UPS |
| Catalog Number | 9PX5KTF5 |
| UPC | 743172039774 |
| Product Length/Depth | 28.4 in |
| Product Height | 10.2 in |
| Product Width | 17.3 in |
| Product Weight | 201 lb |
| Compliances | CE Marked, FCC Part 15, CISPR22 Class A / FCC part 15 Class A |
| Certifications | cULus Listed, IEC 62040-2:2006 Cat C2, NOM, ENERGY STAR certified |
| Battery Management | ABM Technology (3-Stage Charging Extends Battery Service Life By 50% And Provides Advance Warning For Battery Replacement) |
| Battery Replacement | Hot-Swappable Internal Batteries And Extended Battery Modules (Ebms) |
| Battery Type | Sealed, Lead-Acid |
| Extended Battery Capability | Add Up To 4 Extended Battery Modules (Ebm). Part Number 9Pxebm180Rt |
| Receptacle | (18) 5-20R, (2) L6-20R, (1) L6-30R, Hardwire (200-240V) |
| Topology | Online/Double-Conversion |
| Wattage | 4500 W |
| VA Rating | 5000 VA |
| Output waveform | True sine wave |
| Voltage | 120/208V |
| Output power factor | 0.9 |
| Output Nominal Voltage | 208V Default (200/208/220/230/240V) |
| Output Voltage Range | ±1% steady-state |
| Output Frequency | 50/60 Hz |
| Input Connection | L6-30P |
| Input Cord Length | 6 ft |
| Input Nominal Voltage | 208V Default (200/208/220/230/240V) |
| Input Frequency range | 60 Hz: 50–70 Hz, 50 Hz: 40–60 Hz |
| Input power factor | >0.99 typical |
| Ethernet Interface | Yes |
| Includes Network Card | Yes |
| Software Compatibility | Intelligent Power Software Suite |
| User Interface | Graphical display, 5-button programmable menu |
| Altitude | <1000m for nominal power, 10% power degrading every 1000m (up to 3000m) |
| BTU Rating | Online: 1186, Battery: 1608 |
| Noise level | <45 dB at 1 meter |
| Relative Humidity | 0-95% Non-Condensing |
| Temperature Range | 0° to 40°C (32° to 104°F) |
| Special Features | Gigabit Network Card (NETWORK-M2) included |
| Form Factor | Rack/Tower |
| Rack Size | 6U |
| Rack Mounting Kit | Yes |
| Efficiency | 93% |
| Internal bypass | Yes |
