Brand: Eaton Power Quality
|
SKU:
10105193

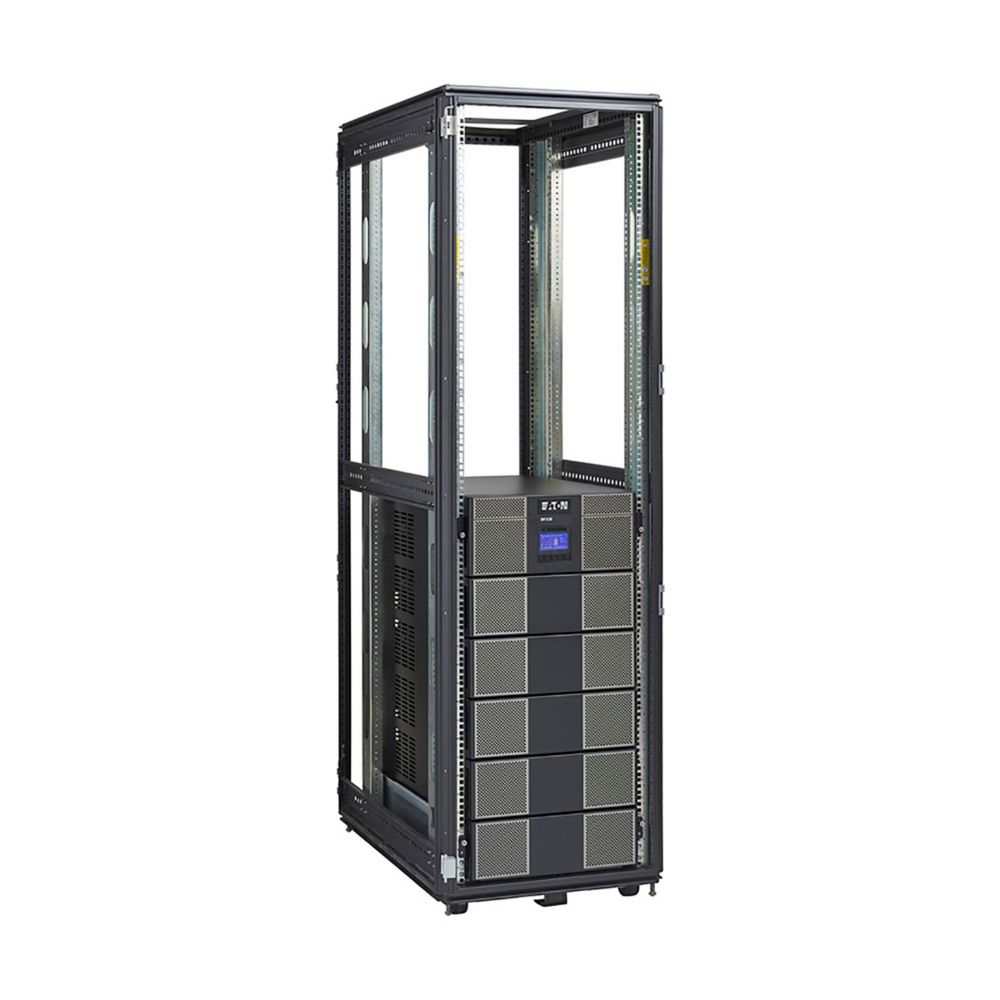

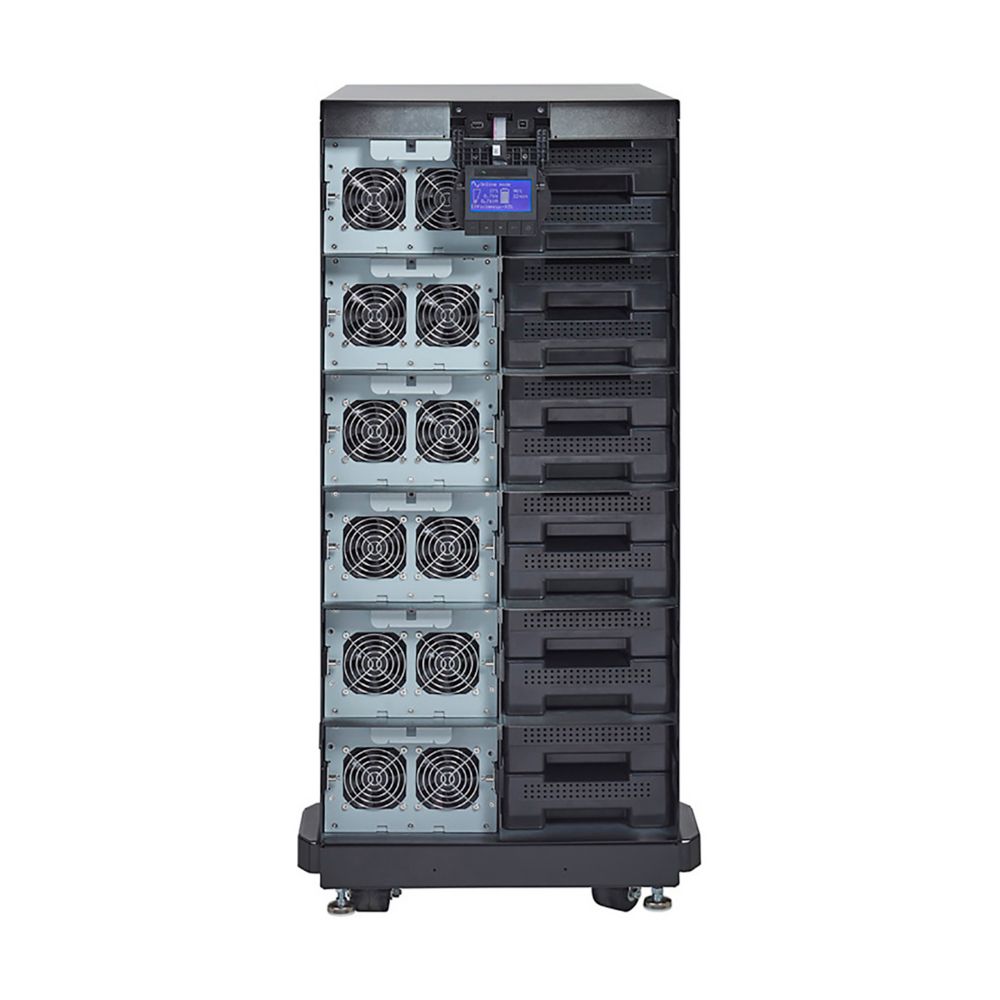

Eaton Power Quality 9PXM12AAAAA | 9Pxm UPS Frame, 4-20 Kva (N+1), Hardwired Input, Hardwired Output, Rack/Tower, 21U
Regular price
$7,998.35
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Eaton Power Quality 9PXM12AAAAA | 9Pxm UPS Frame, 4-20 Kva (N+1), H...
Regular price
$7,998.35
Unit price
Brand: Eaton Power Quality
|
SKU:
10105193
Regular price
$7,998.35
Unit price
Shipping calculated at checkout.
Description
Description
Eaton Power Quality 9PXM12AAAAA | 9Pxm UPS Frame, 4-20 Kva (N+1), Hardwired Input, Hardwired Output, Rack/Tower, 21U
Eaton 9PXM UPS frame, 4-20 kVA (N+1), Hardwired input, Hardwired output, Rack/Tower, 21U, Online/Double-conversion, Free standing model, Black/silver, 110V/220V, 120V/208V, 120V/240V, 127V/220V.
Specifications
Specifications
Eaton Power Quality - 9PXM12AAAAA - Specifications
| Type | Ups |
|---|---|
| UNSPSC Code | 39121011 |
| Product Name | Eaton 9PXM UPS |
| Catalog Number | 9PXM12AAAAA |
| UPC | 743172091390 |
| Product Length/Depth | 34.5 in |
| Product Height | 36.5 in |
| Product Width | 17.5 in |
| Product Weight | 170 lb |
| Compliances | TAA Compliant, FCC Compliant |
| Certifications | IEC Rated, cULus Listed |
| Battery Replacement | Hot-Swappable Internal Batteries And Extended Battery Modules (Ebms) |
| Battery Management | Abm Technology (3-Stage Charging Extends Battery Service Life By 50% And Provides Advance Warning For Battery Replacement) |
| Extended Battery Capability | Yes |
| Input Connection | Hardwired |
| Input Nominal Voltage | 110V/220V, 120V/208V, 120V/240V, 127V/220V |
| Input Power Factor | >0.99 Typical |
| Input Frequency range | 60 Hz: 50–70 Hz |
| Receptacle | Hardwired |
| Output Frequency | 60 Hz |
| Output waveform | True sine wave |
| Output power factor | 0.9 |
| Topology | Online/Double-conversion |
| Software Compatibility | Intelligent Power Software Suite |
| Temperature Range | 0° to 40°C (32° to 104°F) |
| Relative Humidity | 5-95% non-condensing |
| Internal bypass | Yes |
| Auto shutdown function | Yes |
| Color | Black/silver |
| Hot Swap Power | Yes |
