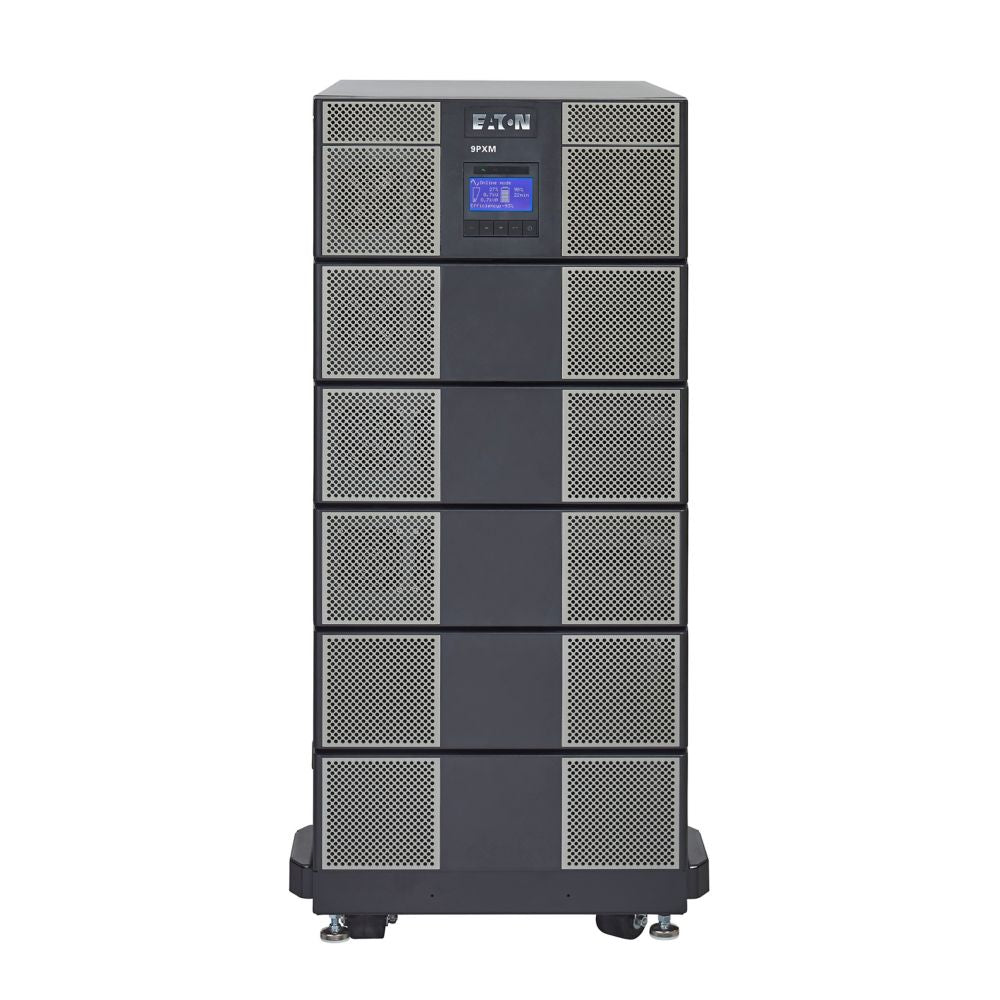

Eaton Power Quality 9PXM12S8K-PD | 9Pxm UPS, 8 Kva Scalable To 20 Kva (N+1), Hardwired Input, Outputs
Eaton 9PXM UPS, 8 kVA scalable to 20 kVA (N+1), Hardwired input, Outputs: (4) 5-20R, (2) L6-30R, (2) L6-20R, (2) L14-30R, 208-240V, Rack/Tower, 21U.
Specifications
Specifications
Eaton Power Quality - 9PXM12S8K-PD - Specifications
| UNSPSC Code | 39121011 |
|---|---|
| Product Name | Eaton 9PXM UPS |
| Catalog Number | 9PXM12S8K-PD |
| UPC | 786689053482 |
| Product Length/Depth | 34.5 in |
| Product Height | 36.5 in |
| Product Width | 17.5 in |
| Product Weight | 378 lb |
| Compliances | TAA Compliant, FCC Compliant, ICES-003 |
| Certifications | 93/68/EEC, 89/336/EEC92/31/EEC, IEC 62040-1, EMC: IEC 62040-2, IEC 60950, 72/23/EEC, cULus Listed, IEC Rated |
| Battery Replacement | Hot-Swappable Internal Batteries And Extended Battery Modules (Ebms) |
| Battery Management | Abm Technology (3-Stage Charging Extends Battery Service Life By 50% And Provides Advance Warning For Battery Replacement) |
| Extended Battery Capability | Yes |
| Input Connection | Hardwired |
| Input Nominal Voltage | 110V/220V, 120V/208V, 120V/240V, 127V/220V |
| Input Power Factor | >0.99 Typical |
| Input Frequency range | 60 Hz: 50–70 Hz |
| Receptacle | (8) 5-20R, (2) L6-30R, (2) L6-20R, (2) L14-30R, Hardwired |
| Output Frequency | 60 Hz |
| Voltage | 120/208V |
| Output Nominal Voltage | 110V/220V, 120V/208V, 120V/240V, 127V/220V |
| VA Rating | 8 kVA |
| Software Compatibility | Intelligent Power Software Suite |
| Temperature Range | 0° to 40°C (32° to 104°F) |
| Relative Humidity | 5-95% non-condensing |
| Internal bypass | Yes |
| Auto shutdown function | Yes |
| Color | Black/silver |
| Hot Swap Power | Yes |
