Brand: Eaton Power Quality
|
SKU:
9816240

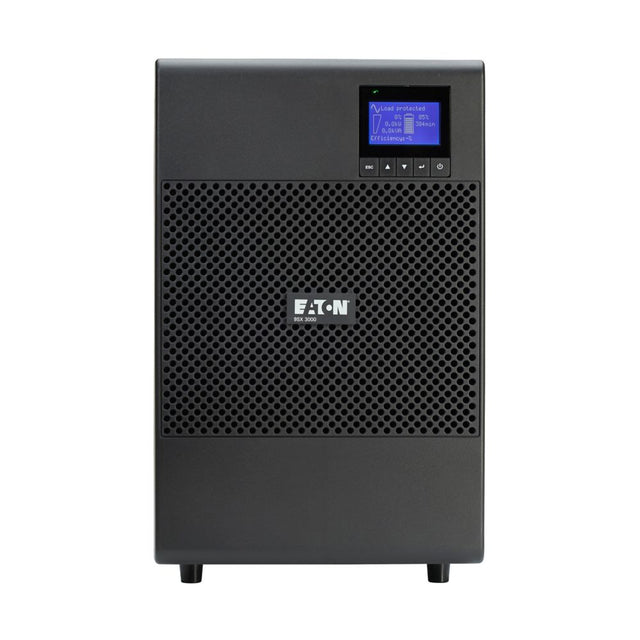

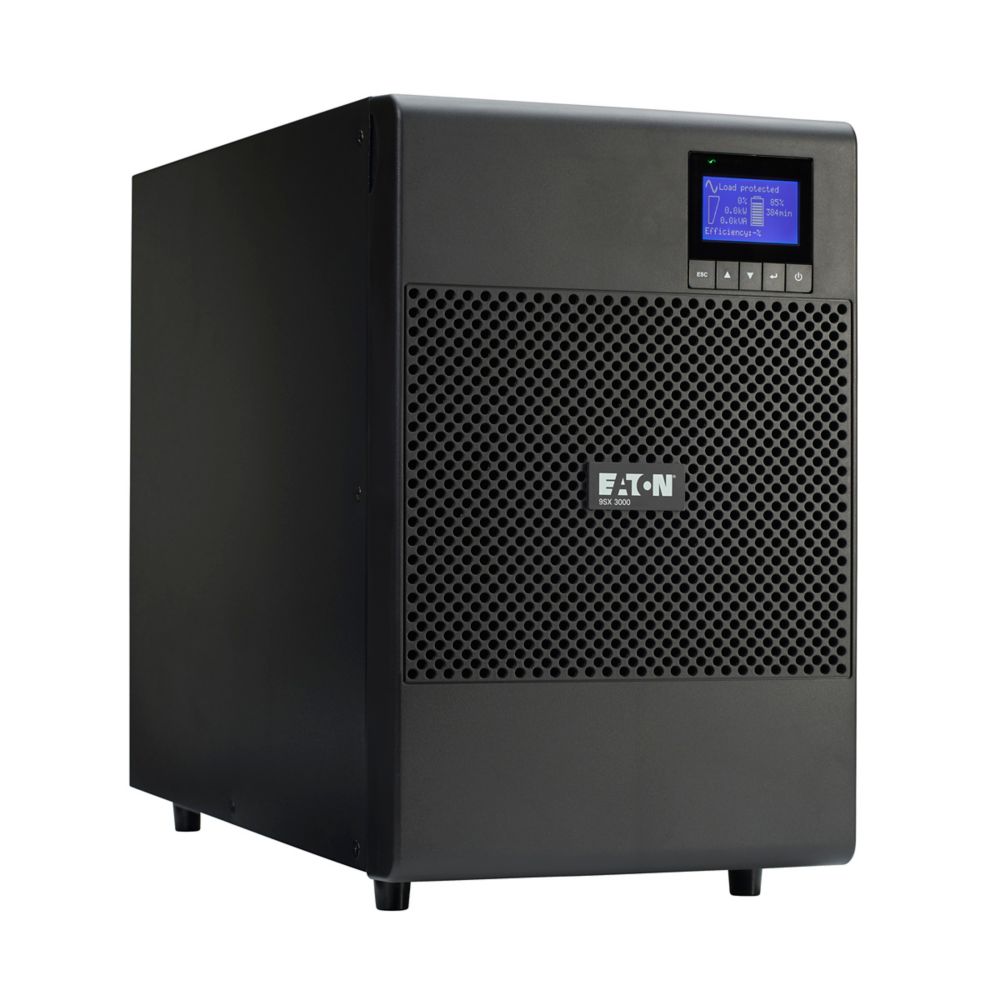

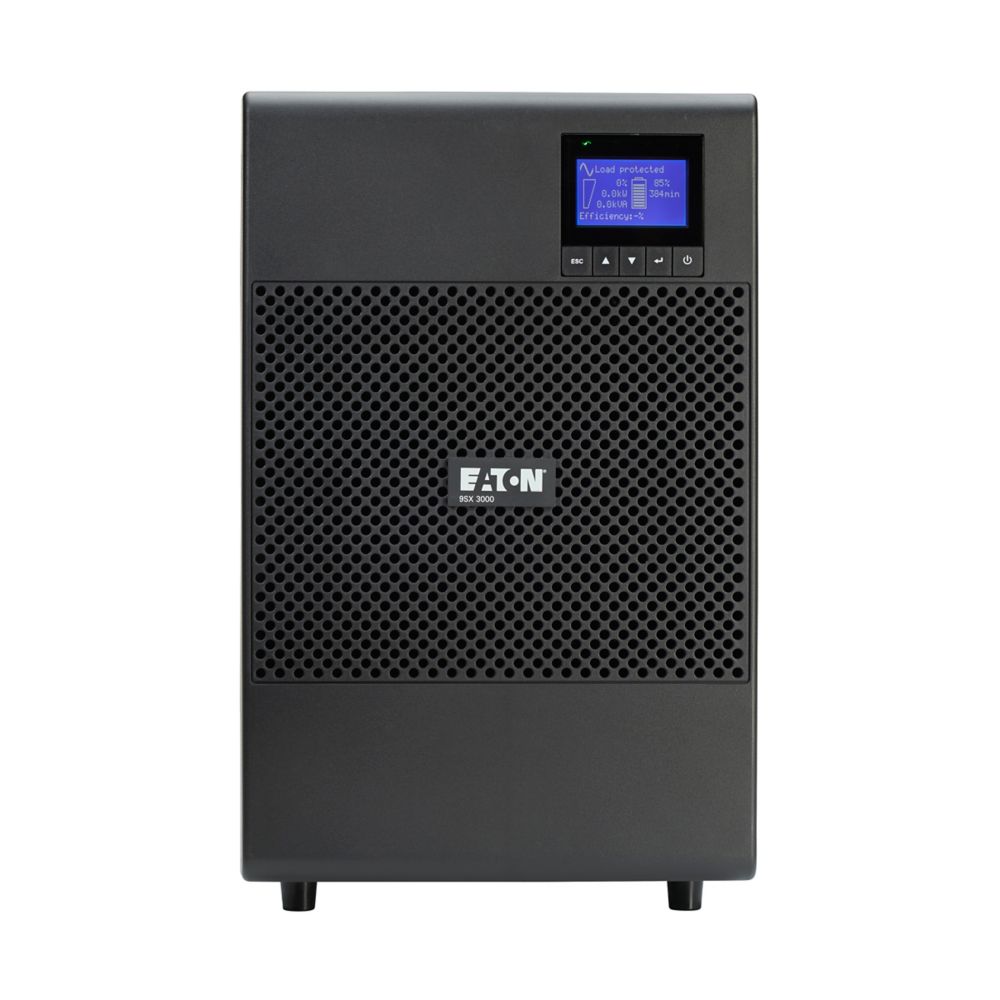

Eaton Power Quality 9SX3000 | 9Sx Online, Extended Runtime UPS, 3000 Va, 2700 W, 120V, L5-30P Input, Outputs
Regular price
$5,137.57
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Eaton Power Quality 9SX3000 | 9Sx Online, Extended Runtime UPS, 300...
Regular price
$5,137.57
Unit price
Brand: Eaton Power Quality
|
SKU:
9816240
Regular price
$5,137.57
Unit price
Shipping calculated at checkout.
Description
Description
Eaton Power Quality 9SX3000 | 9Sx Online, Extended Runtime UPS, 3000 Va, 2700 W, 120V, L5-30P Input, Outputs
The Eaton 9SX UPS offers high availability, flexibility and advanced protection for infrastructure, industrial, medical, IT, networking, storage and telecom. Delivering on-line double conversion protection in versatile Rack/Tower format with up to 95% efficiency..
Specifications
Specifications
Eaton Power Quality - 9SX3000 - Specifications
| UNSPSC Code | 39121011 |
|---|---|
| Product Name | Eaton 9SX UPS |
| Catalog Number | 9SX3000 |
| UPC | 743172091260 |
| Product Length/Depth | 16.2 in |
| Product Height | 13.6 in |
| Product Width | 8.4 in |
| Product Weight | 77.2 lb |
| Compliances | FCC Compliant, CE Marked |
| Certifications | cULus Listed |
| Battery Management | ABM Technology (3-Stage Charging Extends Battery Service Life By 50% And Provides Advance Warning For Battery Replacement) |
| Battery Replacement | Hot-Swappable Internal Batteries And Extended Battery Modules (Ebms) |
| Extended Battery Capability | Yes |

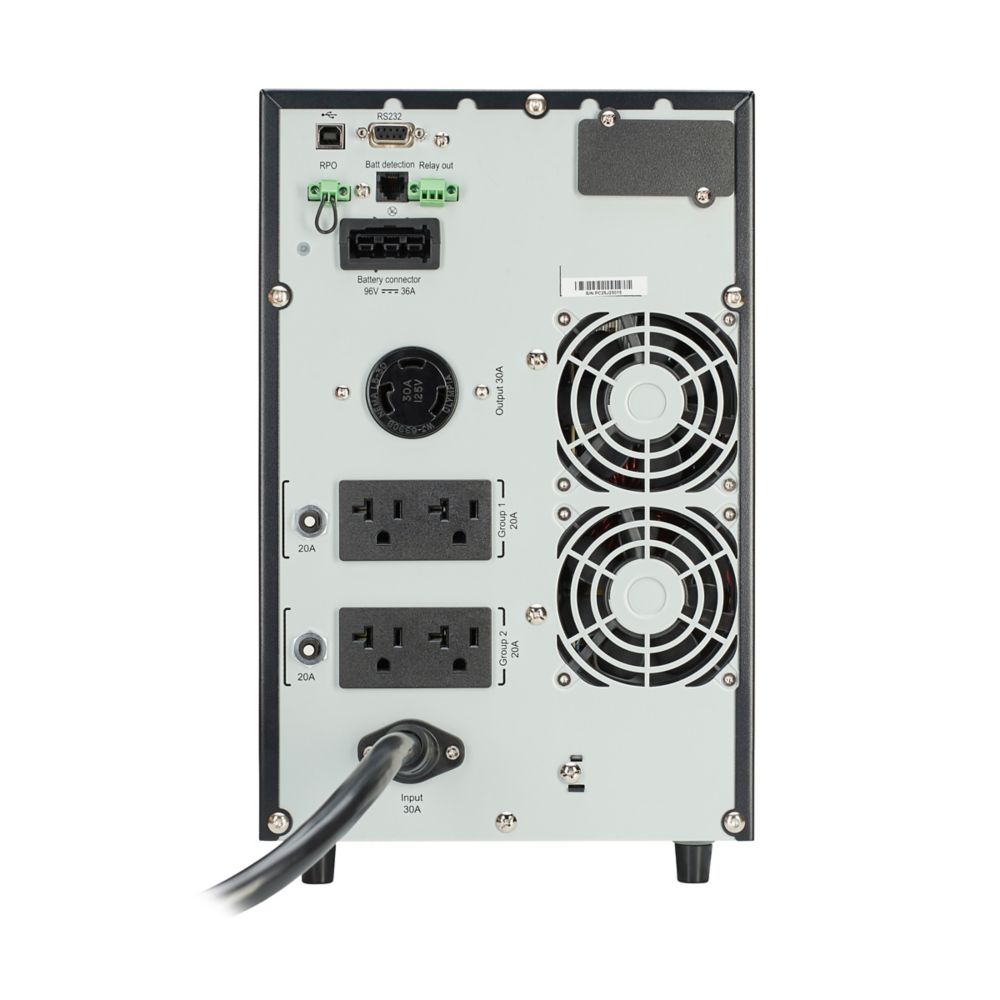

| Receptacle | (4) 5-20R, (1) L5-30R |
| Topology | Online/Double-Conversion |
| Wattage | 2700 W |
| VA Rating | 3000 VA |
| Output waveform | True sine wave |
| Voltage | 120V |
| Output power factor | 0.9 |
| Output Nominal Voltage | 120V Default (100/110/120/125V) |
| Output Frequency | 50/60 Hz |
| Feed type | 1 |
| Input Connection | L5-30P |
| Input Cord Length | 8 ft |
| Input Frequency range | 60 Hz: 50–70 Hz, 50 Hz: 40–60 Hz |
| Input power factor | >.99 |
| User Interface | 5-button graphical User Interface |
| Potential free switch contact | Yes |
| Temperature Range | 0° to 40°C (32° to 104°F) |
| Form Factor | Tower |
| Construction type | Free standing model |
