Brand: Eaton Power Quality
|
SKU:
7BU-LP-CC-25

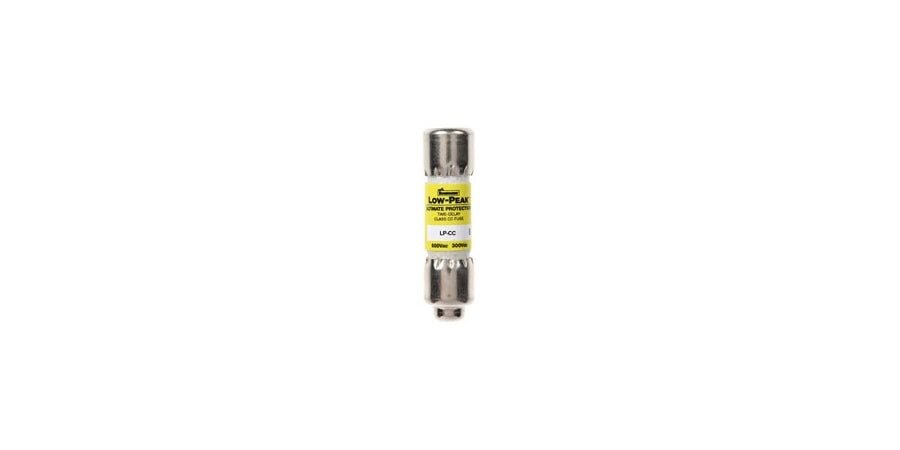

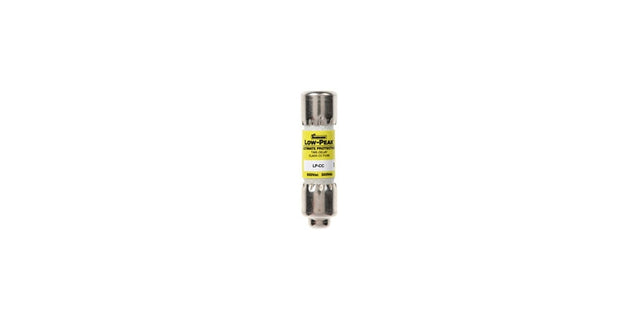

Eaton Power Quality LP-CC-25 | Class CC Time-Delay Fuse, 25A, 600VAC, Current-Limiting, Midget
Regular price
$37.37
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Eaton Power Quality LP-CC-25 | Class CC Time-Delay Fuse, 25A, 600VA...
Regular price
$37.37
Unit price
Brand: Eaton Power Quality
|
SKU:
7BU-LP-CC-25
Regular price
$37.37
Unit price
Shipping calculated at checkout.
Description
Description
Eaton Power Quality LP-CC-25 | Class CC Time-Delay Fuse, 25A, 600VAC, Current-Limiting, Midget
Bussmann, series ultimate protection low-peak class CC current-limiting, time-delay fuses. Timedelay - 12 seconds (minimum) at 200% of rated current.
Specifications
Specifications
Eaton Power Quality - LP-CC-25 - Product Categories
- Power Products
- Power Distribution and Protection
- Fuses and Accessories
- Current Limiting Fuses
Eaton Power Quality - LP-CC-25 - Specifications
| Manufacturer Name | Eaton Power Quality |
|---|---|
| Manufacturer Part Number | LP-CC-25 |
| Item Description | Class CC Time-Delay Fuse, 25A, 600VAC, Current-Limiting, Midget |
| UPC | 051712180283 |
| EAN | 5027590446983 |
| Amperage | 25 A |
| Body Material | Melamine |
| Body Type | Tube |
| Characteristics | Time Delay |
| Connection Type | Ferrule |
| Current Rating | 25 A |
| Diameter | 0.41 in. |
| Element Type | Dual |
| Fuse Class | Class CC |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupting Rating | 200 kA |
| Length Overall | 1.5 in. (38mm) |
| Length | 1.5 in. |
| Material | Melamine |
| Mounting Type | Holder |
| Product Type | Current Limiting Fuse |
| Rejection/Non-Rejection | Rejection |
| Response Time | 12 s |
| Special Rating | UL, CSA, CE, ROHS |
| Speed | Time Delay |
| Terminal Type | Clip |
| Type | Dual Element |
| Voltage AC Rating | 600 VAC |
| Voltage DC Rating | 300 VDC |
| Voltage | 300 VDC |
| Width | 0.41 in. |
