Edwards Signaling 2304A-L | Magnetic Contact, Track-Mount, Open/Clo...
Description
Description

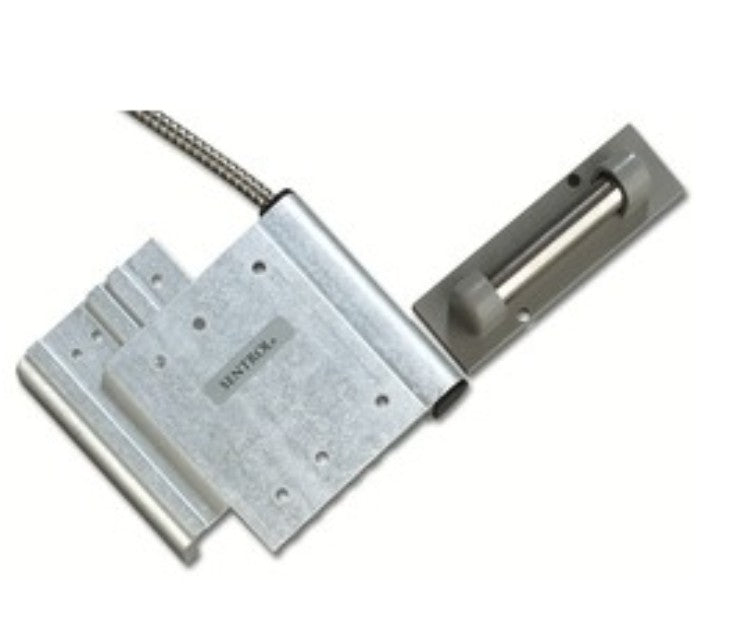

The 2302A Curtain Door magnetic contacts are designed specifically for curtain style overhead doors. The unique design allows the contact to be mounted directly to the channel of the door, with the magnet mounted horizontally in the door slats, off the floor and out of harms way. This eliminates the service calls and alarm situations that are created when typical floor-mount contacts become damaged, or as the door becomes misaligned with normal usage. The interlocking mounting bracket adjusts to fit any size channel width.
Specifications
Specifications
Edwards Signaling - 2304A-L - Product Categories
- Security
- Intrusion Detection
- Intrusion Detection Sensors
- Contacts
Edwards Signaling - 2304A-L - Specifications
| Manufacturer Name | Edwards Signaling |
|---|---|
| Manufacturer Part Number | 2304A-L |
| Item Description | Magnetic Contact, Track-Mount, Open/Closed Loop, Contact Configuration, SPDT, 30 VAC/DC |
| Amperage | 0.25 A |
| Connectivity | Wired |
| Height | 0.65 in. |
| Length | 3.63 in. |
| Material | Anodized Aluminum |
| Mounting | Track |
| Product Type | Curtain Door Track-Mount Contact |
| Voltage | 30 VAC/DC |
