Edwards Signaling 870P-N5 | Vibrating Horn, 0.13 A, 113 dB at 1m, 1...
Description
Description

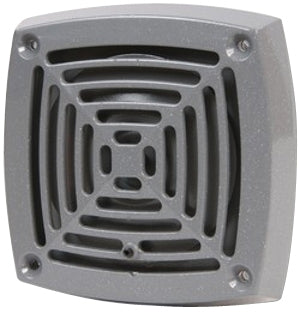

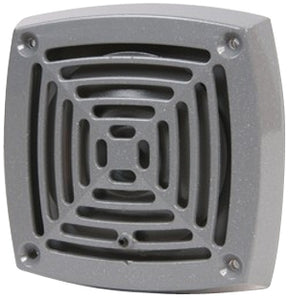

The Edwards 870P AC and 871P DC Series are low-current, high-decibel panel-mount vibrating horns for heavy-duty use. Supplied complete with gasket and UL-listed to NEMA 4X enclosure requirements. Designed for semi-flush panel-mounting, using supplied mounting template, or installation on a 4 in. (102mm) square box. For NEMA 4X installation, mount to a NEMA 4X enclosure having a flat, smooth surface using supplied 1/8 in. (3mm) gasket in accordance with the installation instructions provided with the unit.
Specifications
Specifications
Edwards Signaling - 870P-N5 - Product Categories
- Power Products
- Industrial Controls
- Industrial Signaling
- Horn
Edwards Signaling - 870P-N5 - Specifications
| Manufacturer Name | Edwards Signaling |
|---|---|
| Manufacturer Part Number | 870P-N5 |
| Item Description | Vibrating Horn, 0.13 A, 113 dB at 1m, 103 dB at 10 ft., Panel-Mount, 120 VAC |
| Amperage | 0.13 A |
| Application | Industrial |
| Decibels | 113/103 dB |
| Enclosure Color | Gray |
| Enclosure Rating | NEMA 4X |
| Frequency Rating | 50/60Hz |
| Height | 4-5/8 in. |
| Material | Die-Cast |
| Mounting Style | Panel-Mount |
| Mounting | Semi-Flush Panel |
| Operating Current | 0.13 A |
| Operating Voltage | 120VAC |
| Power Rating | 15.6 VA |
| Product Type | Vibrating Horn |
| Size | HxD: 4-5/8 x 1-7/8 in. |
| Special Rating | NEMA 4X, 12, 12K |
| TYPE | PILOT DEVICE |
| Type | Vibrating |
| Voltage | 120 VAC |
| dB/10-Ft | 103 |
