Brand: Electro-Voice | SKU: 966146

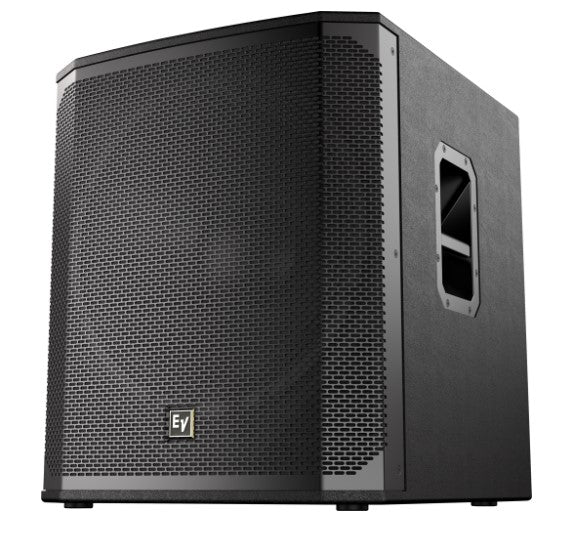

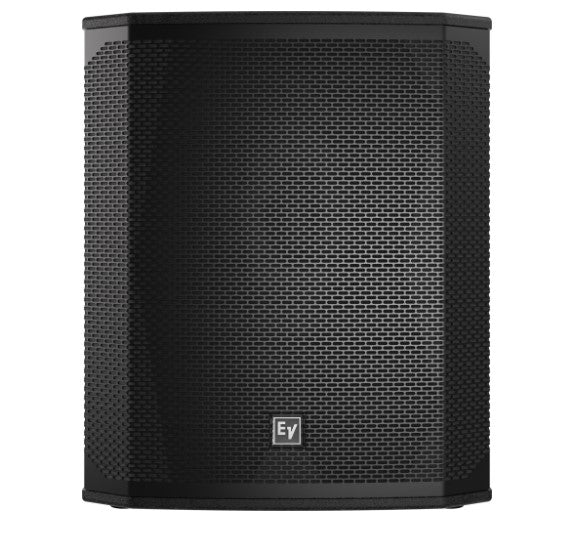

Electro-Voice ELX200-18S | 18" Passive Subwoofer

Regular price $916.59
  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

Description

Electro-Voice ELX200-18S | 18" Passive Subwoofer

The ELX series is designed to deliver an unprecedented combination of sound quality, portability and durability at its price point. All-new custom components—tested to levels far exceeding the industry norm—make ELX200 a robust workhorse capable of handling real-world abuse and professional applications beyond the capability of competitors’ products in its category.

Every aspect of ELX200 is designed for ideal results as part of the whole - the acoustical, electrical and mechanical components all work together seamlessly. The subwoofers pack powerful low-frequency output into a surprisingly compact footprint, and feature tuned 15 mm thick wood enclosures with a premium top-coat finish. The proprietary features that have made the other members of the EV portable speaker family a go-to for best-in-class performance are also present. EV's industry-leading quality and testing procedures yield efficient transducer design and meaningful specs, resulting in components that deliver accurate, linear response at the system’s highest output levels. Translation: loud and clear all the way up to the limit. Unified in one of the strongest full-range composite enclosures ever built by EV. The ELX200 is established as the new benchmark for toughness - both acoustically and physically; maximum efficiency with maximum toughness.

Electro-Voice - ELX200-18S - Features

  • 1600 W (peak), 133 dB peak SPL utilizing high sensitivity transducer designed and engineered by EV for maximum punch.
  • High-output EVS-18L woofer designed to exacting specifications for superior durability and exceptional low-frequency reproduction.
  • System reliability verified with over 500 hours of abuse testing and endurance testing.
  • Ideal for portable and installed applications.
  • Lightweight, compact 15 mm wood enclosure with internal bracing with durable polyurea top-coat finish.
  • Professional-grade hardware: integrated M20 threaded pole mount plate and two-handle design for easy lifting.

Specifications

Electro-Voice - ELX200-18S - Specifications

UNSPSC Code52161600
Minimum Impedance7.2 ??
Speaker TypeSubwoofer
Woofer Size18inch
Powered or PassivePassive
Frequency Response (-3 dB)¹45 Hz - 200Hz
Frequency Range (-10 dB)¹Max. SPL/1m (calc)²
133 HzdBLF Transducer
EVS-18L 457 mm (18 in)Power Rating
1600WConnector Type

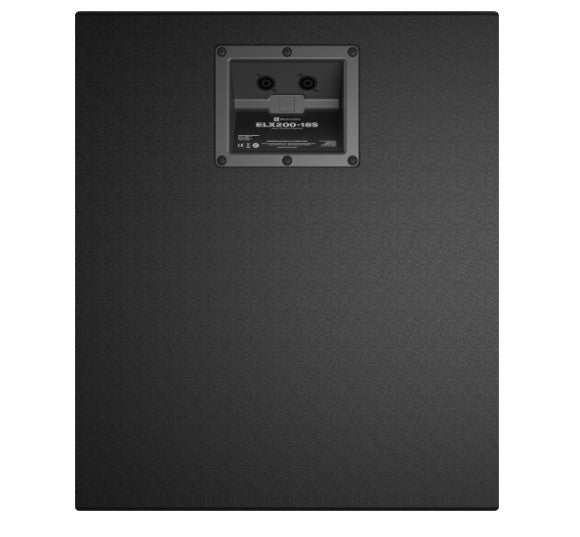

Dual NL4Enclosure Material
15 mm plywood with durable polyurea top-coat finishGrille
18 AWG steel with powdercoatAvailable Color
Black or WhiteHeight
23.62" (600mm)Width
19.96" (507mm)Recommended High-Pass Frequency
35 HzHzDepth
22.6" (574mm)Weight Net
58.64lbs (26.6kg)Shipping Weight
67.24lbs (30.5kg)Family
ELX200Nominal Impedance
8?Axial Sensitivity (SPL, 1 W @ 1 m)
94dBPower Handling (Continuous / Peak)

Documents and Downloads
