Electro-Voice EVF-1122S/99-PIW | Arrayable Point-Source 12" Lo...
Regular price
$2,748.25
Unit price
Brand: Electro-Voice
|
SKU:
708730
Regular price
$2,748.25
Unit price
Description
Description

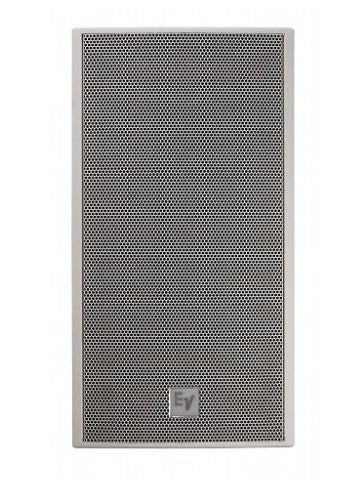

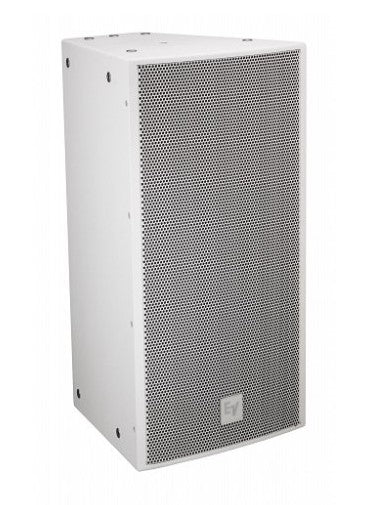

Electro-Voice EVF-1122S/99-PIW | Arrayable Point-Source 12" Loudspeaker
The EVF-1122S 500 watt (passive) loudspeaker offers a two-way front-load design featuring the SMX2121 with Fully Symmetric Drive, Electro-Voice’s latest 12" woofer innovation, accompanied by the new ND2B high-frequency compression driver mounted on a n ew, fully rotatable 12" x 12" waveguide (available in 60 x 40, 60 x 60, 90 x 40, 90 x 60, 90 x 90, and 120 x 60 patterns). System capable of passive or bi-amp operation. Available in black or white, with a choice of three finishes: EVCoat (interior use ), PI (indirect weather exposure), and FG (fiberglass, for direct weather exposure).
The EVF-1122S 500 watt (passive) loudspeaker offers a two-way front-load design featuring the SMX2121 with Fully Symmetric Drive, Electro-Voice’s latest 12" woofer innovation, accompanied by the new ND2B high-frequency compression driver mounted on a n ew, fully rotatable 12" x 12" waveguide (available in 60 x 40, 60 x 60, 90 x 40, 90 x 60, 90 x 90, and 120 x 60 patterns). System capable of passive or bi-amp operation. Available in black or white, with a choice of three finishes: EVCoat (interior use ), PI (indirect weather exposure), and FG (fiberglass, for direct weather exposure).
Electro-Voice - EVF-1122S/99-PIW - Features
- 2-inch ND2B titanium HF compression driver
- Rotatable Constant-directivity waveguide
- Six available patterns with coverage from 60º to 120º
- 98 dB sensitivity, 131 dB maximum SPL
- Power handling: 500 W continuous, 2000 W peak
- 4th-order passive crossover with HF protection
- Trapezoidal 13-ply plywood enclosure in three finishes: EVCoat, PI, and fiberglass (FG)
Specifications
Specifications
Electro-Voice - EVF-1122S/99-PIW - Specifications
| UNSPSC Code | 52161600 |
|---|---|
| Frequency Range (-10 dB) | 49 Hz – 19 kHz |
| Suspension | 22 M10 threaded suspension points (one EBK-M10-EVI kit of four forged eyebolts included) |
| Weatherized | No |
| Minimum Impedance | 6? |
| Nominal Impedance (Passive) | 8? |
| HF Transducer | 2" ND2B diaphragm compression driver |
| Speaker Type | Full-Range, Two-Way |
| Frequency Response (-3 dB)¹ | 58 Hz – 16 Hz |
| Max. SPL/1m (calc)² | 131 dBdB |
| Coverage (Nominal -6 dB) H | 60° |
| Coverage (Nominal -6 dB) V | 40° |
| LF Transducer | 12" SMX2121 driver |
| System Power Handling (Continuous/Program/Peak) | 500 , 1000 , 2000 Watts |
| Crossover Frequency | 1450Hz |
| Enclosure Material | 13-ply weather-resistant birch |
| Grille | Standard versions: 16 ga Galvanneal, Powdercoat with screen behind PI and FG versions: 18 ga Stainless, Powdercoat with hydrophobic cloth behind |
| Sensitivity 1 W/1 m | 98 dBdB |
| Height | 30.26" (768.6mm) |
| Width | 16" (406.3mm) |
| Recommended High-Pass Frequency | 65Hz |
| Depth | 16.27" (413.3mm) |
| Weight Net | 63.05lbs (28.6kg) |
| Net Weight | 63.1 lb (28.6 kg) |
| Dimensions (H x W x D) | 30.26" x 16" x 16.27" (768.6 x 406.3 x 413.3 )mm |
| Input Connections | Euroblock; PI and FG versions include dual-gland-nut input-panel cover |
| Available Coverage Patterns (Nominal -6 dB) HxV | 60 x 60° |
| Environmental Specs | Standard versions: IEC 60529 IP44 PI and FG versions: IEC 60529 IP55 |
| Internal Passive Crossover Frequency | 1450Hz |
| Passive Power Handling | 2000W peak |
| Net Weight | 63.1 lb (28.6 kg) |
| Dimensions (H x W x D) | 30.26" x 16" x 16.27" (768.6 x 406.3 x 413.3 )mm |
| Input Connections | Euroblock; PI and FG versions include dual-gland-nut input-panel cover |
