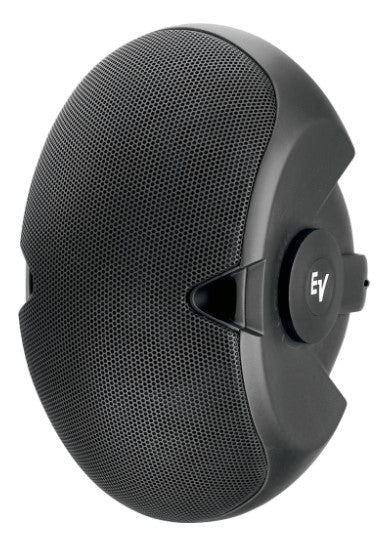

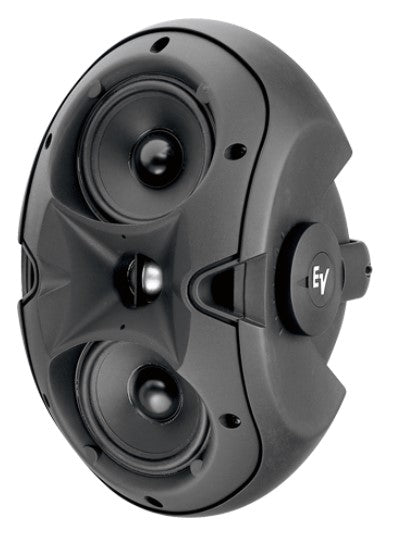

Electro-Voice EVID 4.2 | Dual 4" 2?Way Surface-Mount Loudspeaker
Regular price
$464.96
Unit price
Brand: Electro-Voice
|
SKU:
424137
Regular price
$464.96
Unit price
Description
Description
Electro-Voice EVID 4.2 | Dual 4" 2?Way Surface-Mount Loudspeaker
Electro-Voice - EVID 4.2 - Features
- Compact full range
- Ideal for restaurants, bars, patios, and retail
- Vented LF enclosure
- 1-inch titanium diaphragm HF driver with neodymium magnetic structure
- Coherent Coverage Waveguide
- Full-bandwidth overload protection (LF and HF)
- Elliptical weather-resistant ABS enclosure
- Paintable black or white finish
- Magnetically shielded for video applications
- Strong-Arm Mount for easy, flexible aiming
- "T" version for 70 or 100 V distributed systems
Specifications
Specifications
Electro-Voice - EVID 4.2 - Specifications
| UNSPSC Code | 52161600 |
|---|---|
| Frequency Response 1(-10 dB) | 65Hz - 20kH |
| Power Handling 2 | 200W Cont. Prog./400W Peak |
| Sensitivity 3 | 89 dB, 1W/1m |
| Impedance | 8 ohms |
| Max SPL | 113 db |
| Horizontal Coverage 4 | 120° |
| Vertical Coverage 4 | 80° |
| Crossover Frequency | 2.2 kHz |
| LF Transducer | 2 x 4" (100 mm) |
| HF Transducer | 1" (25 mm) |
| Protection | Full System |
| Weather Resistance | Meets Mil Spec 810 humidity, salt spray, temperature and UV, and IEC 529 IP 34 splashproof ratings |
| Swing x Rotation | 100° x 90° |
| Terminals | Phoenix Connector |
| Enclosure Material | ABS (paintable) |
| "t" Version Wattage Taps | 70V: 3.75 W70V/100V: 7.5W, 15W, 30W, 8 ohm bypass |
| Dim (H x W x D) | 12.2" x 6.9" x 8.5" (234 mm x 127 mm x 165 mm) |
| Net Weight (each) | 8.5 lbs (3.9 kg) |
| Shipping Weight (pair) | 19 lbs (8.6 kg) |
| Included Accessories | SAM™, hex key |
