Electro-Voice EVID 6.2 | Dual 6" 2?Way Surface-Mount Loudspeaker
Regular price
$719.63
Unit price
Brand: Electro-Voice
|
SKU:
424146
Regular price
$719.63
Unit price
Description
Description

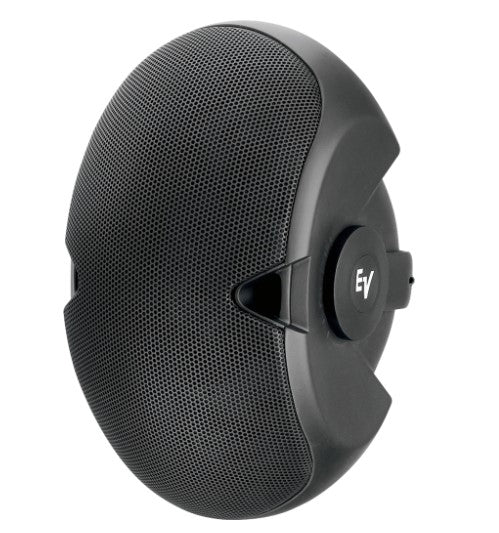

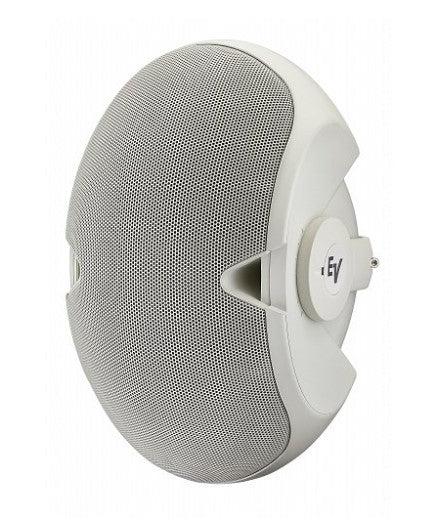

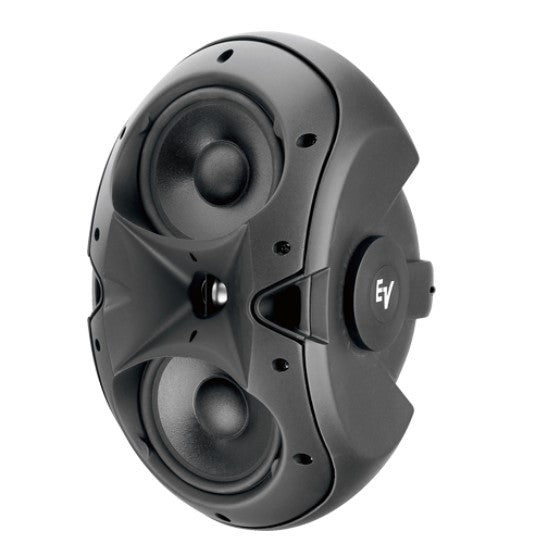

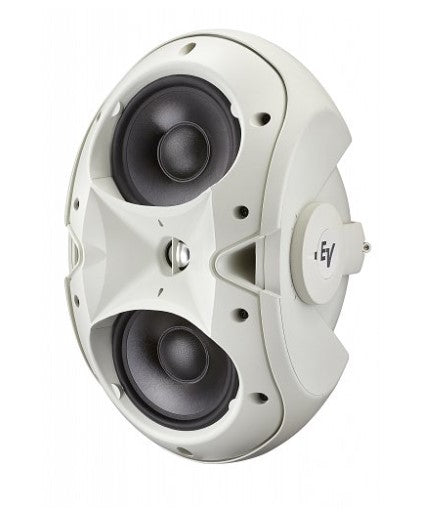

Electro-Voice EVID 6.2 | Dual 6" 2?Way Surface-Mount Loudspeaker
Electro-Voice - EVID 6.2 - Features
- Compact full range
- Ideal for shopping malls, sports bars, and health clubs
- Vented LF enclosure
- 1-inch titanium diaphragm HF driver with neodymium magnetic structure
- Coherent Coverage Waveguide
- Full-bandwidth overload protection (LF and HF)
- Elliptical weather-resistant ABS enclosure
- Paintable black or white finish
- Magnetically shielded for video applications
- Strong-Arm Mount for easy, flexible aiming
- "T" version for 70 or 100 V distributed systems
Specifications
Specifications
Electro-Voice - EVID 6.2 - Specifications
| UNSPSC Code | 52161600 |
|---|---|
| Frequency Response ¹ ( z -10 dB) | 62 Hz - 20 kHz |
| Power Handling ² | 300W Cont. Prog./600W Peak |
| Sensitivity ³ | 94 dB, 1W/1m |
| Impedance | 8 ohms |
| Max SPL | 118 d |
| Horizontal Coverage? | 100° |
| Vertical Coverage? | 80° |
| Crossover Frequency | 1.6 kHz |
| LF Transducer | 2 x 6" (100 mm) |
| HF Transducer | 1" (25 mm) |
| Protection | Full Syste |
| Weather Resistance | Meets Mil Spec 810 humidity, salt spray, temperature and UV, and IEC 529 IP 34 splashproof ratings |
| Swing x Rotation | 100° x 90° |
| Terminals | Terminals |
| Enclosure Material | ABS (paintable) |
| "t" Version Wattage Taps | 70V 7.5 W 70V/100V 15W, 30W, 60W, 8 ohm bypass |
| Dim (H x W x D) | 16.5" x 9" x 11.75" (419 mm x 228 mm x 298 mm) |
| Net Weight (each) | 12 lbs (5.3kg) |
| Shipping Weight (pair) | 27 lbs (12.3 kg) |
| Included Accessories | SAM™, hex key |
