Brand: Electro-Voice
|
SKU:
708864

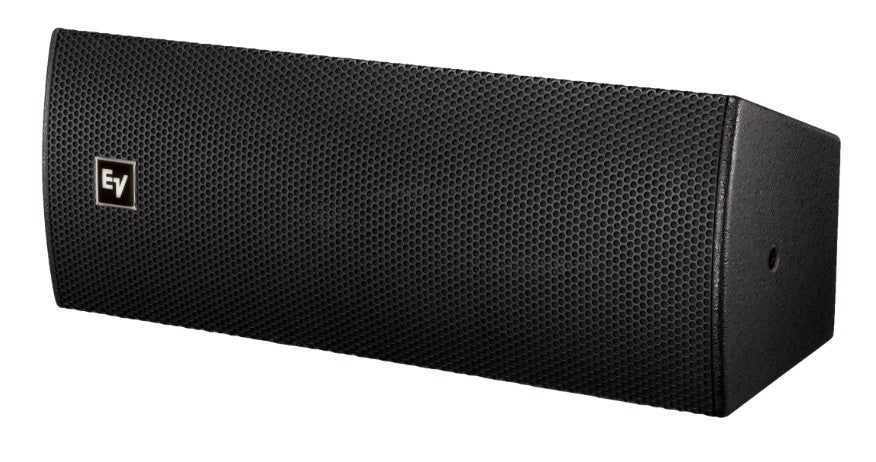

Electro-Voice EVU-2062/95-WHT | Ultracompact 2?way with Dual 6.5" Woofers
Regular price
$1,001.59
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Electro-Voice EVU-2062/95-WHT | Ultracompact 2?way with Dual 6.5&qu...
Regular price
$1,001.59
Unit price
Brand: Electro-Voice
|
SKU:
708864
Regular price
$1,001.59
Unit price
Shipping calculated at checkout.
Description
Description
Electro-Voice EVU-2062/95-WHT | Ultracompact 2?Way W/Dual 6.5" Woofers
The EVU series (passive) loudspeaker offers a two-way front-load design featuring single and dual woofer models. Includes 6.5-IN and 8-IN woofer options, with a rotatable 90º x 50º waveguide. Loudspeaker systems include universal U-bracket. Also availa ble is an optional 70/100 transformer kit and/or a dual NL4 type input panel cover plate. EVU series is available in black or white finishes only.
Must be a reseller to purchase this product.
The EVU series (passive) loudspeaker offers a two-way front-load design featuring single and dual woofer models. Includes 6.5-IN and 8-IN woofer options, with a rotatable 90º x 50º waveguide. Loudspeaker systems include universal U-bracket. Also availa ble is an optional 70/100 transformer kit and/or a dual NL4 type input panel cover plate. EVU series is available in black or white finishes only.
Must be a reseller to purchase this product.
Electro-Voice - EVU-2062/95-WHT - Features
- Sonically matched to all EV-Innovation lines
- Sophisticated 18-dB-octave passive crossover/EQ networks
- Asymmetrical enclosure for ideal under-balcony and stage-lip aiming
- Optional Neutrik Speakon(R) connector panel
- One 1.3-inch (33 mm) diaphragm compression driver
- U-bracket included
- Optional 70 V and 100 V operation
- OmniMount(R)-compatible rear mounting points
- Available in black or white (interior use)
- Ultracompact 8 x 21 inch enclosure
- 90º x 50º rotatable waveguide
- Ultra-high power handling for size: 300 W continuous
- 125 dB Max SPL
- Asymmetrical trapezoidal enclosure design
- Compatible with OmniMount
Specifications
Specifications
Electro-Voice - EVU-2062/95-WHT - Specifications
| UNSPSC Code | 39120000 |
|---|---|
| Frequency Range (-10 dB) | 70 - 20000kHz (Half Space) |
| Suspension | Six M8 threaded points |
| Weatherized | No |
| Minimum Impedance | 6? |
| HF Transducer | One 1.3-inch (33 mm) diaphragm ICT-1-8 compression driver |
| Speaker Type | Full-Range, Two-Way |
| Frequency Response (-3 dB)¹ | 100 - 16000Hz (Half Space) |
| Max. SPL/1m (calc)² | 125dB |
| Coverage (Nominal -6 dB) H | 90° |
| Coverage (Nominal -6 dB) V | 50° |
| LF Transducer | Two 6.5-inch (165 mm) ICT-6.5-8 woofers |
| Power Rating | 1200W |
| System Power Handling (Continuous/Program/Peak) | 300//1200Watts (EIA RS-426A (eight hours)) |
| Connector Type | 4-pin Phoenix/Euroblock screw terminals (up to 10 AWG wire) |
| Enclosure Material | 9-ply hardwood plywood |
| Grille | 18-gauge steel with cloth behind |
| Available Color | Black or white |
| Height | 8.23" (209mm) |
| Width | 20.98" (533mm |
| Recommended High-Pass Frequency | 90Hz |
| Depth | 8.15" (207mm) |
| Weight Net | 24.91lbs (11.3kg) |
| Shipping Weight | 31.31lbs (14.2kg) |
| Passive Power Handling | 1400W peak |
| Nominal Impedance | 8? |
| Finish | Textured paint |
| Waveguide | 6 in. x 6 in., rotatable |
| Axial Sensitivity (SPL, 1 W @ 1 m) | 94dB ((1W/1M)) |
