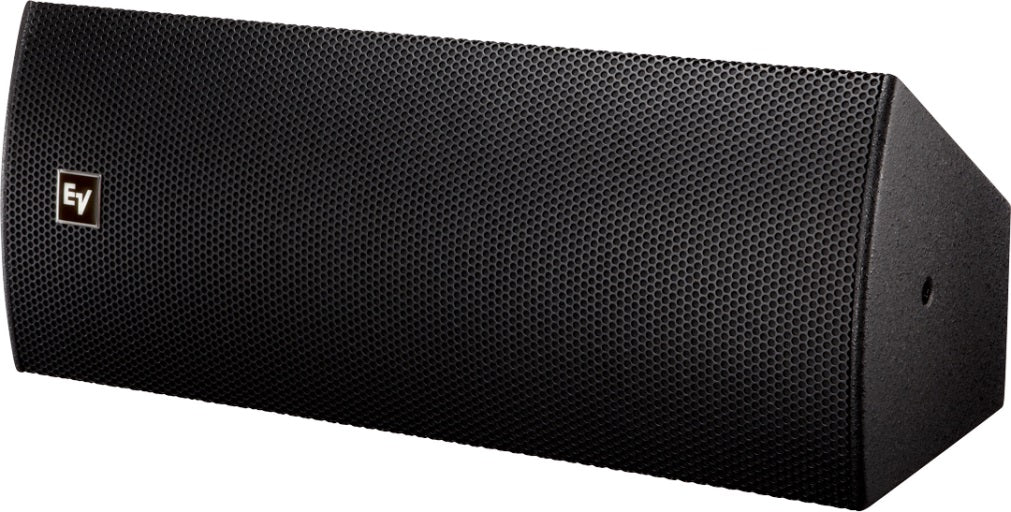

Electro-Voice EVU-2082/95-BLK | Ultracompact 2?Way W/Dual 8" Woofers
Electro-Voice - EVU-2082/95-BLK - Features
- Sonically matched to all EV-Innovation lines
- Sophisticated 18-dB-octave passive crossover/EQ networks
- Asymmetrical enclosure for ideal under-balcony and stage-lip aiming
- Optional Neutrik Speakon(R) connector panel
- One 1.3-inch (33 mm) diaphragm compression driver

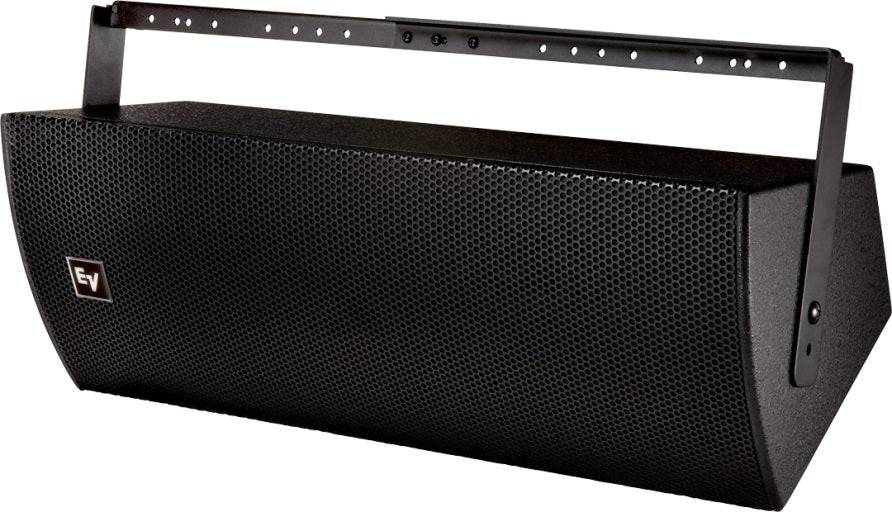

- U-bracket included
- Optional 70 V and 100 V operation
- OmniMount(R)-compatible rear mounting points
- Available in black or white (interior use)
- Ultracompact 10 x 24 inch enclosure
- 90º x 50º rotatable waveguide
- Ultra-high power handling for size: 350 W continuous
- 126 dB Max SPL
- Asymmetrical trapezoidal enclosure design
- Compatible with OmniMount
Specifications
Specifications
Electro-Voice - EVU-2082/95-BLK - Specifications
| UNSPSC Code | 39120000 |
|---|---|
| Frequency Range (-10 dB) | 60 - 20000kHz (Half-space) |
| Suspension | Six M8 threaded points |
| Weatherized | No |
| Minimum Impedance | 6? |
| HF Transducer | One 1.3-inch (33 mm) diaphragm ICT-1-8 compression driver |
| Speaker Type | Full-Range, Two-Way |
| Frequency Response (-3 dB)¹ | 100 - 16000Hz (Half-space) |
| Max. SPL/1m (calc)² | 126dB |
| Coverage (Nominal -6 dB) H | 90° |
| Coverage (Nominal -6 dB) V | 50° |
| LF Transducer | Two 8-inch (203 mm) ICT-8-8 woofers |
| Power Rating | 1400W |
| System Power Handling (Continuous/Program/Peak) | 350//1400Watts (EIA RS-426A (eight hours)) |
| Connector Type | 4-pin Phoenix/Euroblock screw terminals (up to 10 AWG wire) |
| Enclosure Material | 9-ply hardwood plywood |
| Grille | 18-gauge steel with cloth behind |
| Available Color | Black or white |
| Sensitivity 1 W/1 m | 95dB |
| Height | 9.72" (247mm) |
| Recommended High-Pass Frequency | 90Hz |
| Width | 24.21" (615mm) |
| Depth | 9.33" (237mm) |
| Weight Net | 28.22lbs (12.8kg) |
| Nominal Impedance | 8? |
| Finish | Textured paint |
| Waveguide | 6 in. x 6 in., rotatable |
| Axial Sensitivity (SPL, 1 W @ 1 m) | 95dB |
| Passive Power Handling | 1400W peak |
