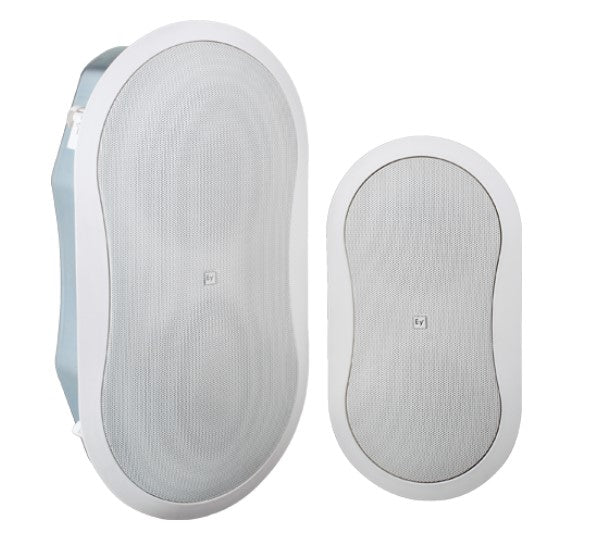

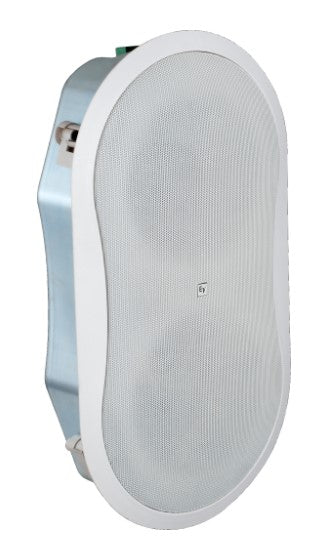

Electro-Voice FM4.2 | 4" 2?Way Flush?Mount Loudspeaker
Regular price
$544.74
Unit price
Brand: Electro-Voice
|
SKU:
709065
Regular price
$544.74
Unit price
Description
Description
Electro-Voice FM4.2 | 4" 2?Way Flush?Mount Loudspeaker
The EVID FM4.2 flush-mounted loudspeaker system is a complete two-way in-wall loudspeaker package. The package consists of a bezel assembly, grille, rear enclosure, 4" two-way loudspeaker coupled with a 4" passive radiator and an internal line-matching transformer. The loudspeaker features 4" lowfrequency cone and high-temperature voice-coil assembly along with a 4" long excursion passive radiator and titanium coated dome tweeter. The EVID FM4.2 loudspeaker utilizes a crossover network, centered at 3,600 Hz, that provides 16-dB-per-octave tweeter protection outside of its operating range. In addition the EVID FM4.2 features a comprehensive protection circuit to shield the woofer and tweeter drivers from excessive power levels. The EVID FM4.2 util izes a transformer that offers a selection of 1.75, 3.75, 7.5, 15 or 30 watts delivered to the loudspeaker system using either 70-V or 100-V lines. The wattage is selected via a convenient switch on the front baffle. The unit can also be operated as an 8-ohm speaker via the same front panel selector switch. The perforated grille is finished in semi-gloss white powder-coated enamel. The baffle and bezel is constructed from heat resistant ABS. The rear enclosure is constructed from zinc-plated, steel. The rear enclosure provides an optimum internal volume, ensuring extended low-frequency performance. It is constructed from heavy-gauge, rugged steel. The steel rear enclosure was optimized using FEA to virtually eliminate panel resonance. The entire enclosure is less than 4" deep providing an easy installation into nearly any tight wall or ceiling space. A rear cover, with provisions for a junction box fitting, provides access to a 4-pin terminal block that allows direct connection to the speaker and provides pass through to additional speakers. FM4.2 loudspeakers provide wide dispersion, high-efficiency, high-maximum output, ease of installation, and wide-range reproduction of music or voice.
Must be a reseller to purchase this product.
The EVID FM4.2 flush-mounted loudspeaker system is a complete two-way in-wall loudspeaker package. The package consists of a bezel assembly, grille, rear enclosure, 4" two-way loudspeaker coupled with a 4" passive radiator and an internal line-matching transformer. The loudspeaker features 4" lowfrequency cone and high-temperature voice-coil assembly along with a 4" long excursion passive radiator and titanium coated dome tweeter. The EVID FM4.2 loudspeaker utilizes a crossover network, centered at 3,600 Hz, that provides 16-dB-per-octave tweeter protection outside of its operating range. In addition the EVID FM4.2 features a comprehensive protection circuit to shield the woofer and tweeter drivers from excessive power levels. The EVID FM4.2 util izes a transformer that offers a selection of 1.75, 3.75, 7.5, 15 or 30 watts delivered to the loudspeaker system using either 70-V or 100-V lines. The wattage is selected via a convenient switch on the front baffle. The unit can also be operated as an 8-ohm speaker via the same front panel selector switch. The perforated grille is finished in semi-gloss white powder-coated enamel. The baffle and bezel is constructed from heat resistant ABS. The rear enclosure is constructed from zinc-plated, steel. The rear enclosure provides an optimum internal volume, ensuring extended low-frequency performance. It is constructed from heavy-gauge, rugged steel. The steel rear enclosure was optimized using FEA to virtually eliminate panel resonance. The entire enclosure is less than 4" deep providing an easy installation into nearly any tight wall or ceiling space. A rear cover, with provisions for a junction box fitting, provides access to a 4-pin terminal block that allows direct connection to the speaker and provides pass through to additional speakers. FM4.2 loudspeakers provide wide dispersion, high-efficiency, high-maximum output, ease of installation, and wide-range reproduction of music or voice.
Must be a reseller to purchase this product.
Electro-Voice - FM4.2 - Features
- Shallow profile, ideal for tight wall or ceiling spaces
- Tuned passive radiator extends bass, enhances performance
- High quality 1-inch titanium dome tweeter
- Full-bandwidth overload protection
- 70 V, 100 V, and 8 ohms operation in the same model for off-the-shelf versatility
- Front-panel mode/wattage switch
- Fully-sealed enclosure provides superior isolation to protect adjacent rooms
- Secure Phoenix-style pass-through connectors for easy wiring and installation.
- Four point “quick mounting” tabs for fast attachment in any wall cavity
- Can-mounted transformer for enhanced rigidity
- Ribbed back can eliminates flexing
Specifications
Specifications
Electro-Voice - FM4.2 - Specifications
| UNSPSC Code | 39120000 |
|---|---|
| Frequency Range (-10 dB) | 52 - 20000kHz |
| HF Transducer | 1 inch Titanium dome tweeter |
| Max. SPL/1m (calc)² | 110dB |
| Coverage (Nominal -6 dB) H | 150° |
| Coverage (Nominal -6 dB) V | 150° |
| LF Transducer | 4 inch with 4 inch passive radiator |
| Power Rating | 200W |
| System Power Handling (Continuous/Program/Peak) | 50//200Watts |
| LF Power Handling | 4-inch, plus 4-inch passiveWatts |
| HF Power Handling | 1-inch (Titanium dome)Watts |
| Enclosure Material | Zinc Plated Metal |
| Sensitivity 1 W/1 m | 87dB |
| Available Color | White |
| Height | 13.78" (350mm) |
| Width | 7.41" (188.3mm) |
| Depth | 3.76" (95.6mm) |
| Weight Net | 6.39lbs (2.9kg) |
| Nominal Impedance | 8? |
| Input Connections | 4-pin Phoenix |
| Transformer Taps (Transformer Version Only) | 1.75, 3.75, 7.5, 15, 30 at 70 v |
