Brand: Electro-Voice
|
SKU:
424243

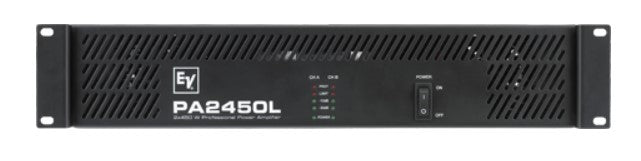

Electro-Voice PA 2450L 120V | Dual 450 W/Ch Power Amplifier
Regular price
$1,017.87
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Electro-Voice PA 2450L 120V | Dual 450 W/Ch Power Amplifier
Regular price
$1,017.87
Unit price
Brand: Electro-Voice
|
SKU:
424243
Regular price
$1,017.87
Unit price
Shipping calculated at checkout.
Description
Description
Electro-Voice PA 2450L 120V | Dual 450 W/Ch Power Amplifier
Electro-Voice - PA 2450L 120V - Features
- Reliable high-quality power for installation
- Ideal for sound reinforcement, paging, and life safety
- 450 W per channel @ 4 ? (1 kHz)
- Bridged mono out for 900 W into 8 ?
- Compact 2 RU design
- Stepped rear-panel level attenuation
- Selectable 50 Hz or 300 Hz high-pass filter
- Thermal protection, peak limiting, turn-on delay
- Phoenix-type inputs and outputs
- Three-stage front-to-rear fans
- Integrated rack ears for direct mounting
Specifications
Specifications
Electro-Voice - PA 2450L 120V - Specifications
| UNSPSC Code | 52161600 |
|---|---|
| Height | 3.46" (88mm) |
| Width | 19.02" (483mm) |
| Depth | 15.98" (406mm) |
| Weight Net | 36.38lbs (16.5kg) |
| Frequency Response (-3 dB) | < 10Hz - 40kHz |
| Crosstalk | < < -75dB (ref. 1kHz, @ 10% rated output power) |
| Rated output power (*rated load) THD < 1%, 1kHz | 450/220W (4?/8?) |
| Continuous Rated Power (20-20 kHz, THD<0,2%) 4? | 400Watts |
| Rated output power (*rated load) THD < 0.2%, 20Hz – 20kHz | 400/200W (4?/8?) |
| Continuous Rated Power (1 kHz, THD 1%) 2? | 450Watts |
| Channels | 2 |
| Continuous Rated Power (1 kHz, THD 1%) 8? | 220Watts |
| Continuous Rated Power (20-20 kHz, THD<0,2%) 8? | 200Watts |
| Total Harmonic Distortion | < 0.1% (@ rated output power MBW=80kHz, 1kHz) |
| Slew Rate | 28V/µs |
| Intermodulation Distortion (SMPTE) | < 0.1% (60Hz, 7kHz) |
| DIM 30 | < 0.1% (3.15kHz, 15kHz) |
| Signal-to-Noise Ratio (A-weighted) | 104dB |
| Input Impedance (Balanced) | > 20k? |
| Input Sensitivity | 0 dBu (775mV) |
| Number of Channels | 2 |
| Network Control (IRIS-Net) | No |
| Amplifier Gain | 34.3dB |
| Continuous Rated Power (1 kHz, THD 1%) 4? | 450Watts |
| Impedance | 4/8? |
