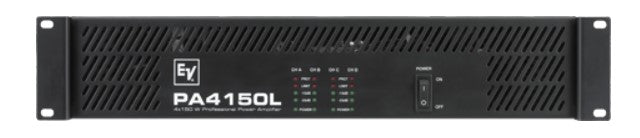

Electro-Voice PA 4150L 120V | Quad 150 W/Ch Power Amplifier
Regular price
$1,117.91
Unit price
Brand: Electro-Voice
|
SKU:
424245
Regular price
$1,117.91
Unit price
Description
Description
Electro-Voice PA 4150L 120V | Quad 150 W/Ch Power Amplifier
Electro-Voice - PA 4150L 120V - Features
- Flexible multi-channel power for installation
- Ideal for sound reinforcement, paging, and life safety
- 150 W per channel into 4 ?
- Bridged mode for dual 315 W outputs into 8 ?
- Compact 2 RU design
- Stepped rear-panel level attenuation
- Selectable 50 Hz or 300 Hz high-pass filter
- Thermal protection, peak limiting, turn-on delay
- Phoenix-type inputs and outputs
- Three-stage front-to-rear fans
- Integrated rack ears for direct mounting
Specifications
Specifications
Electro-Voice - PA 4150L 120V - Specifications
| UNSPSC Code | 52161600 |
|---|---|
| Height | 3.46" (88mm) |
| Width | 19.02" (483mm) |
| Depth | 15.98" (406mm) |
| Frequency Response (-3 dB) | < 10Hz - 40kHz (-1dB, ref. 1kHz) |
| Weight Net | 39.68lbs (18kg) |
| Rated output power (*rated load) THD < 0.2%, 20Hz – 20kHz | 150/75W (4?/8?) |
| Continuous Rated Power (1 kHz, THD 1%) 2? | 160Watts |
| Channels | 4 |
| Continuous Rated Power (1 kHz, THD 1%) 8? | 100Watts |
| Continuous Rated Power (20-20 kHz, THD<0,2%) 8? | 75Watts |
| Total Harmonic Distortion | < 0.1% |
| Slew Rate | 16V/µs |
| Intermodulation Distortion (SMPTE) | < 0.1% |
| DIM 30 | < 0.1% |
| Signal-to-Noise Ratio (A-weighted) | 101dB |
| Input Impedance (Balanced) | > 20k? |
| Input Sensitivity | 0 dBu (775mV) (@ rated output power or voltage, 1kHz) |
| Number of Channels | 4 |
| Network Control (IRIS-Net) | NO |
| Amplifier Gain | 30dB |
| Continuous Rated Power (1 kHz, THD 1%) 4? | 160Watts |
| Impedance | 4/8? |
| Crosstalk | < < -75dB (ref. 1kHz, @ 10% rated output power) |
| Rated output power (*rated load) THD < 1%, 1kHz | 160/100W (4?/8?) |
| Continuous Rated Power (20-20 kHz, THD<0,2%) 4? | 150Watts |
