Brand: Electro-Voice
|
SKU:
708661

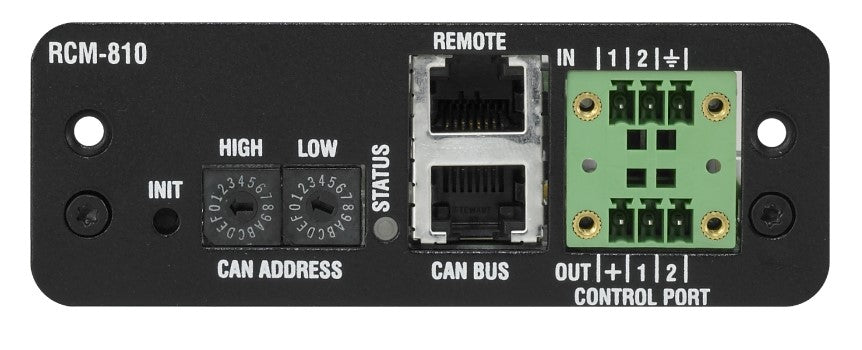

Electro-Voice RCM-810 | Iris?Net Remote Control Module For Cps Series Amplifiers
Regular price
$483.16
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Electro-Voice RCM-810 | Iris?Net Remote Control Module For Cps Seri...
Regular price
$483.16
Unit price
Brand: Electro-Voice
|
SKU:
708661
Regular price
$483.16
Unit price
Description
Description
Electro-Voice RCM-810 | Iris?Net Remote Control Module For Cps Series Amplifiers
The RCM-810 Remote Control Module is an optional module for supervision and remote control of power amplifiers. RCM-810 modules allow the amplifiers to be integrated into a remote control network with up to 100 devices. Up to 250 amplifiers can be used in an IRIS-Net project when multiple networks are used. Apart from the network port, the RCM-810 also offers freely programmable control inputs and control outputs.
Must be a reseller to purchase this product.
The RCM-810 Remote Control Module is an optional module for supervision and remote control of power amplifiers. RCM-810 modules allow the amplifiers to be integrated into a remote control network with up to 100 devices. Up to 250 amplifiers can be used in an IRIS-Net project when multiple networks are used. Apart from the network port, the RCM-810 also offers freely programmable control inputs and control outputs.
Must be a reseller to purchase this product.
Electro-Voice - RCM-810 - Features
- Enable powerful control and supervision capabilities
- Integrate up to 100 devices in each remote control network, 250 with multiple networks
- Support for 2-, 4-, and 8-channel CPS models
- Freely programmable control inputs and outputs
- Load-monitoring for each channel
- Variable Load Drive for independent channel impedance on 4- and 8-channel amps (2-10 ? in 0.1 ? steps)
Specifications
Specifications
Electro-Voice - RCM-810 - Specifications
| UNSPSC Code | 52161600 |
|---|---|
| Network Control (IRIS-Net) | Yes |
| Internal Processing | None |
| Network Interface | CAN Bus |
| CAN Bus Interface | 10 - 500 kbaud, 2x RJ-45 (IRIS-Net Control) |
| GPIO Control Ports | 2 x 3-pole Euro block 2 Control Inputs 2 Control Outputs 2 Reference Outputs (+5 V, 200 mA / GND) |
| Audio Network | No |
| Variable Load Drive (VLD) | Yes |
| FIR-Drive | No |
