Description
Description

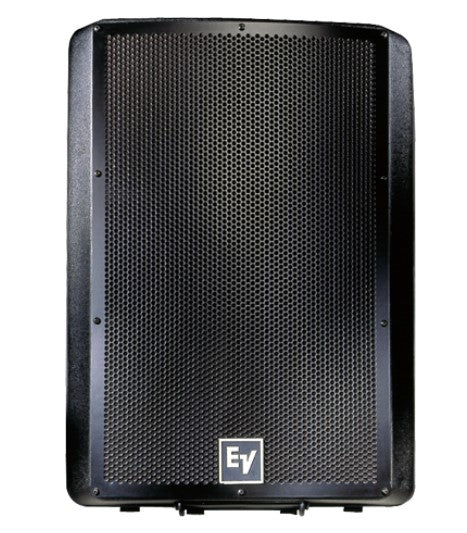

Electro-Voice SX300PIX | Weather?Resistant 12" 2?Way Passive Full?Range Loudspeaker
Electro-Voice - SX300PIX - Features
- Sx300 performance with enhanced weather-resistance
- PIX version has multi-tap transformer for 70 or 100 V use
- Ideal for installation, alone or in arrays
- 1.25-inch DH3/2010A titanium HF compression driver
- 65º x 65º Constant-directivity Varipath horn
- Ring-Mode Decoupling (RMD) for increased intelligibility
- Power handling: 300 W continuous, 1200 W peak
- Neutrik Speakon(R) (PI) or Phoenix (PIX) connectors
- Trapezoidal enclosure of high-impact polypropylene
- Rubber feet and mating sockets for stacking
- Integral handles, pole socket, suspension points
- Available in black or white
Specifications
Specifications
Electro-Voice - SX300PIX - Specifications
| UNSPSC Code | 52161500 |
|---|---|
| Frequency Range (-10 dB) | 50 - 20000kHz |
| Weatherized | Yes |
| Flying | Yes |
| Minimum Impedance | 5? |
| Nominal Impedance (Passive) | 8? |
| HF Transducer | 1.25-inch DH3/2010A |
| Speaker Type | Full-Range, Mid-High, Two-Way |
| Woofer Size | 12inch |
| Powered or Passive | Passive |
| Max. SPL/1m (calc)² | 131/123dB (Low Z/100V) |
| Coverage (Nominal -6 dB) H | 65° (Const.-dir. horn) |
| LF Transducer | 12-inch DL12BFH |
| Coverage (Nominal -6 dB) V | 65° (Const.-dir. horn) |
| Power Rating | 300W |
| System Power Handling (Continuous/Program/Peak) | 300//1200Watts (Long-Term/Short-Term) |
| Crossover Frequency | 1500Hz |
| Enclosure Material | Polypropylene Composite |
| Available Color | Black or white |
| Sensitivity 1 W/1 m | 99dB |
| Height | 23.07" (586mm) |
| Width | 16.89" (429mm) |
| Depth | 12.28" (312mm) |
| Internal Crossover | Yes |
| Weight Net | 39.02lbs (17.7kg) |
| Family | Sx |
| Transformer | Yes |
| Chassis Size | 12" (304.8mm) |
| Axial Sensitivity (SPL, 1 W @ 1 m) | 99dB |
| Input Connections | 2 four-pin Speakon |
| Directivity Index | 11.1dB (+2.4/-4.1 dB) |
