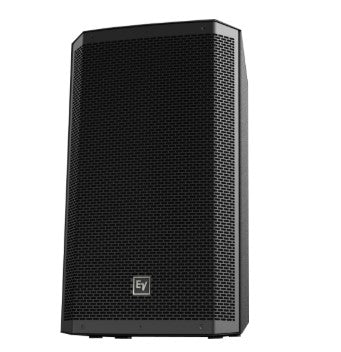

Electro-Voice ZLX-12 | 12" Passive Loud Speaker
Regular price
$504.78
Unit price
Brand: Electro-Voice
|
SKU:
709017
Regular price
$504.78
Unit price
Description
Description
Electro-Voice ZLX-12 | 12" Passive Loud Speaker
Big sound doesn’t need to take up a lot of space. Ideal for main loudspeaker or monitor wedge duties, the ZLX-12 offers the ultimate combination of performance and portability – and always looks great on stage.
Electro-Voice - ZLX-12 - Features
- 12" woofer for low-end punch in a compact enclosure and 1.5" high-frequency
- titanium compression driver
- 55 Hz - 20 kHz frequency range
- 250 W continuous and 1000 W peak power handling
- 95 dB SPL sensitivity; 125 dB max SPL.8 lbs (14.9 kg
Specifications
Specifications
Electro-Voice - ZLX-12 - Specifications
| Frequency Response | 82 Hz - 18 kHz¹ |
|---|---|
| Frequency Range | 55 Hz - 20 kHz |
| Axial Sensitivity | 95 dB |
| Maximum SPL | 125 dB |
| Recommended HP Frequency | 40 Hz |
| Coverage (Hort. x Vert.) | 90° x 60° |
| Power Handling | 250 Watts Continuous, 1000 Watts Peak |
| LF Transducer | EVS-12K, 300 mm (12 in) Woofer |
| HF Transducer | DH-1K |
| Crossover Frequency | 2.1 kHz |
| Nominal Impedance | 8 ? |
| Minimum Impedance | 7 ? |
| Connectors | Dual NL4 |
| Enclosure | Polypropylene |
| Grille | 18 Gauge Steel with Black Powder Coat |
| Dimensions | (H x W x D) 610 mm x 356 mm x 356 mm (24 in x 14 in x 14 in) |
| Net Weight | 14.9 kg ( 32.8 lb) |
Electro-Voice - ZLX-12 - Videos
| Electro-Voice ZLX-12 Video | Click to View |
|---|
