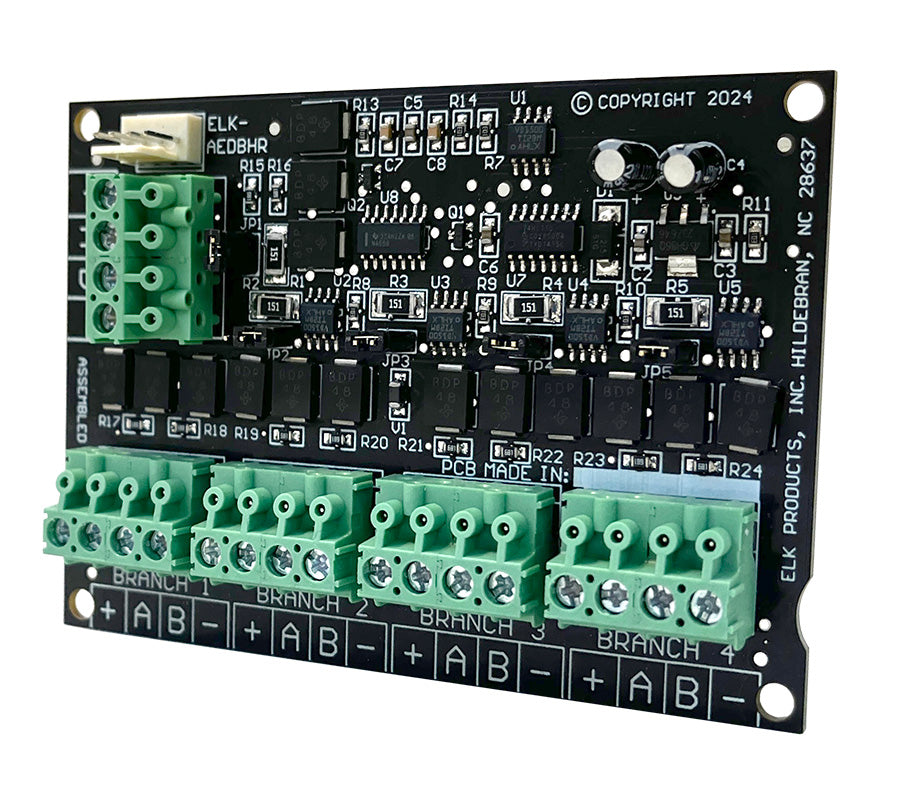

ELK Products Inc. AEDBHR | Alarm Engine Retrofit Data Bus Hub
Description
Description
The ELK-AEDBHR is an “active” RS-485 data bus hub designed for jobs where an Alarm Engine Control is retrofitting an older panel that has multiple homerun 4 conductor keypad/data wires. It splits the main 485 data bus into 4 managed 485 branches. Each branch can have 2 parallel home run cables for a total of 8 home runs. The AEDBHR is designed with terminating jumpers for each branch. These jumpers, when appropriately paired with terminating jumpers on end-of-line devices, ensure proper operation and supervision.
ELK Products Inc. - AEDBHR - Features
- Splits the Alarm Engine RS-485 data bus output into 4 managed branches
- Each managed branch can have 2 parallel home run cables (total of 8 home runs)
- Removable terminal blocks for easy wiring
- Works with standard 4 conductor home run wire
- Includes mounting glides for ELK-SWB boxes
Specifications
Specifications
ELK Products Inc. - AEDBHR - Specifications
| Manufacturer Part Number | AEDBHR |
|---|---|
| Brand | ELK Products Inc. |
| Item Description | Alarm Engine Retrofit Data Bus Hub |
