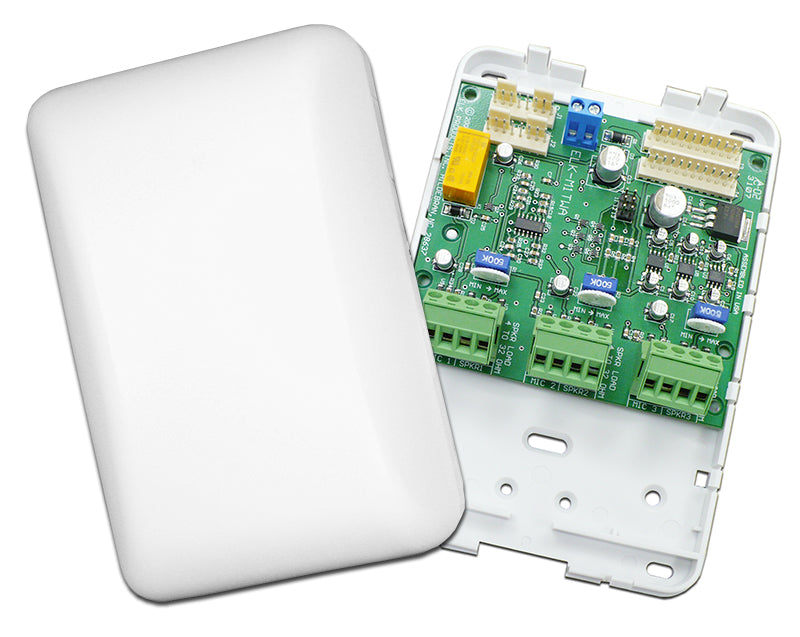

Elk Products Inc. ELK-M1TWA | Amplified Two Way Listen In Interface

Elk Products Inc. - ELK-M1TWA - Features

• 3 Amplified Speaker Zones
• Adjustable Speaker Volume Control by Zone
• Selectable Mute by Zone
• 3 Microphone Input Zones (up to 4 mics per zone)
• Selectable Mic Listen by Zone or Select ALL
• Interfaces to ELK-M1Gold Controls
• Interfaces to ELK-M1 or ELK-M1EZ8 Controls
• Amplifier Rating 1/2 Watt per Speaker Output
• Microphone Inputs Up to 4 Mics per input. Compatible with; ELK-M1TWM, ELK-M1TWS
• Operating Voltage 9 to 14 Volts D.C.
• Current Draw 15mA nominal, 1000mA (1 Amp) maximum
• Microphone Current Draw 5mA each
• Housing Dimensions 4.25" x 6.375" x 2.125"
• Circuit Board Dimensions 2.25" x 3.95"
